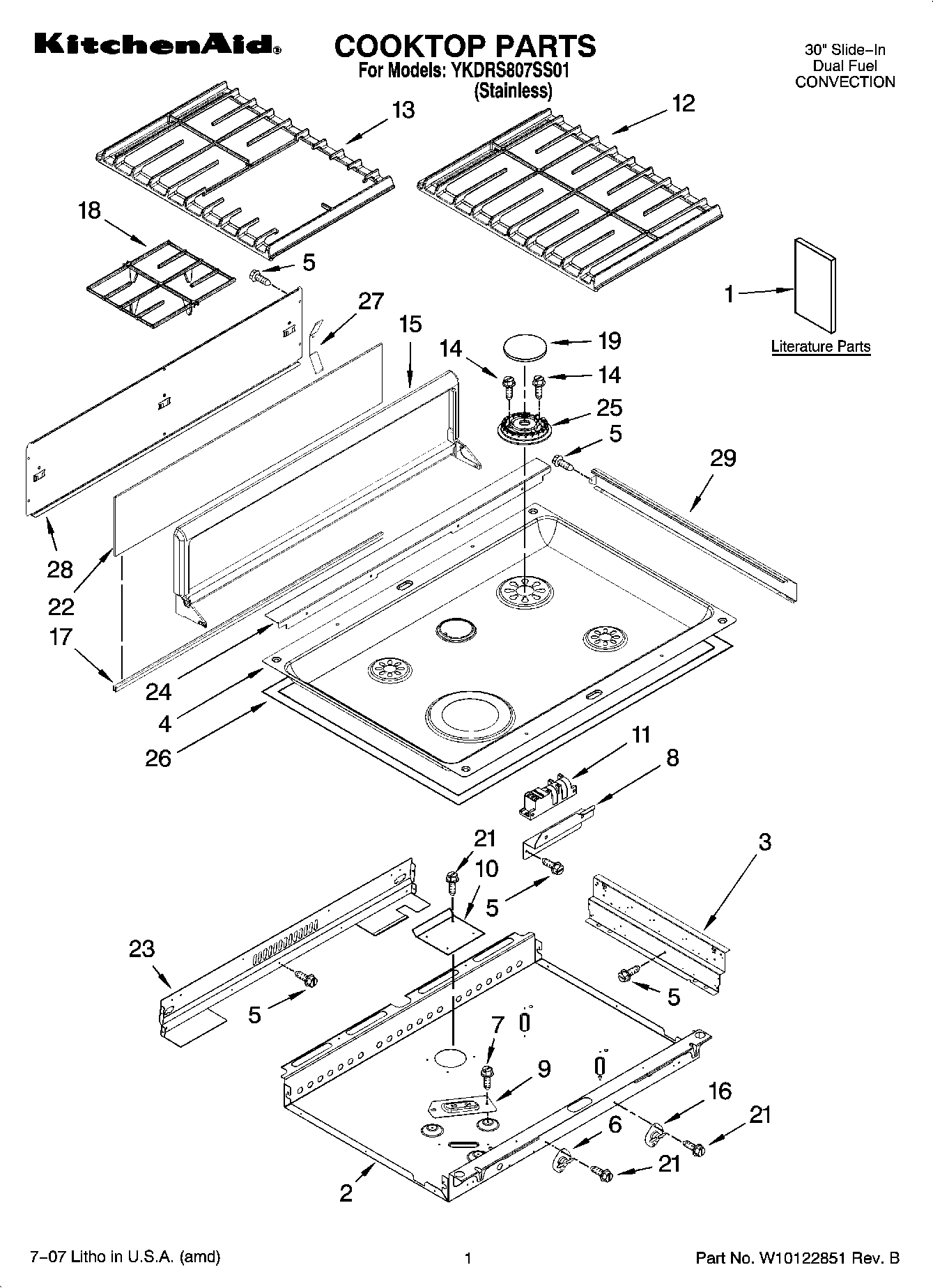

YKDRS807SS01 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet
1	Easy Set Guide
1	Use & Care Guide
1	Installation Instructions
1	Safe Cooking Tips (French)
1	Anti-Tip Instruct.
1	Safe Cooking Tips
2	Burner Box
3	Bracket, Mounting
4	Cooktop
5	WP3196557 Whirlpool Screw
6	WP9757807 Whirlpool High Limit Thermostat
7	WP12990527 Whirlpool Microwave Screw
8	Bracket, Spark Module
9	Bracket, Burner
10	Shield, Heat
11	WPW10110491 Whirlpool Spark Module
12	Grate, Burner (RH)
13	Grate, Burner (LH)
14	WP3368921 Whirlpool Screw
15	Backsplash
16	WP9759944 Whirlpool Thermostat
17	Gasket, Backsplash
18	GRATE-BRNR
19	WP8284669 Whirlpool Burner Cap
19	9761563CB Whirlpool Burner Cap
21	W10491985 Whirlpool Screw
22	Glass, Backsplash
23	Cover, Cooktop Rear
24	WP9763436 Whirlpool Rear Cover
25	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
25	WPW10406243 Whirlpool Burner Head Auxiliary 6K
26	Gasket
27	Clip, Retainer (3)
28	Panel, Backsplash
29	Trim, Cooktop (Left)
29	Trim, Cooktop (Right)
