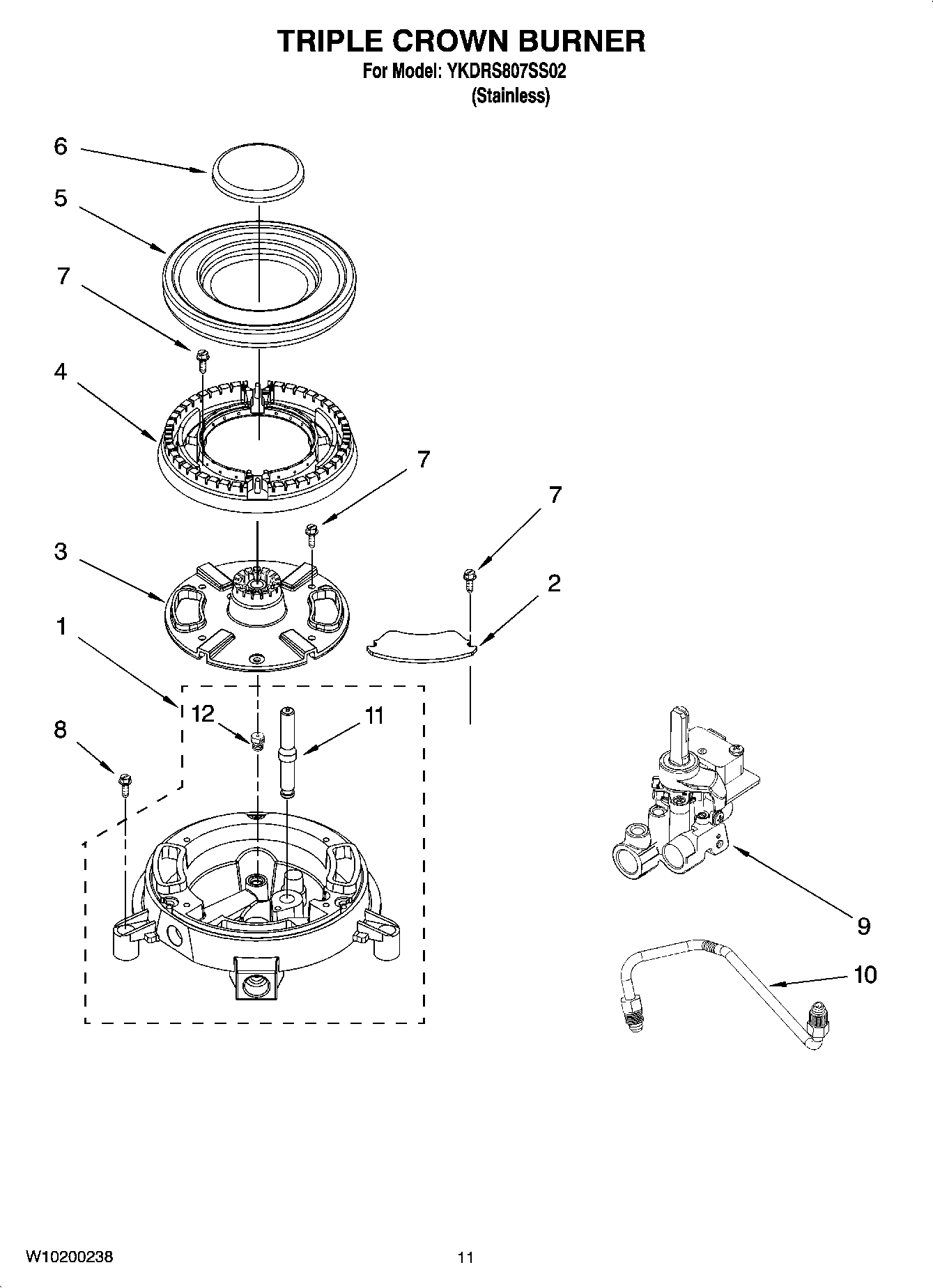

YKDRS807SS02 08 – TRIPLE CROWN BURNER

Products

Position	Product
1	WP9761639 Whirlpool Orifice Holder
2	8285250 Whirlpool Oven Cover Plate
3	WP8285255 Whirlpool Burner Head
4	WP8285256 Whirlpool Burner Head
5	WP8285258 Whirlpool Top Cap
6	WP9758829CB Whirlpool Burner Cap
7	WP3400702 Whirlpool Screw
8	WP12990527 Whirlpool Microwave Screw
9	VALVE, TCB
10	9761072 Whirlpool Oven Gas Tubing
10	TUBE, T.C.B. GAS (INNER)
11	WP9763494 Whirlpool Surface Igniter
12	9762443 Whirlpool Oven Orifice Spud
12	Orifice (External)
