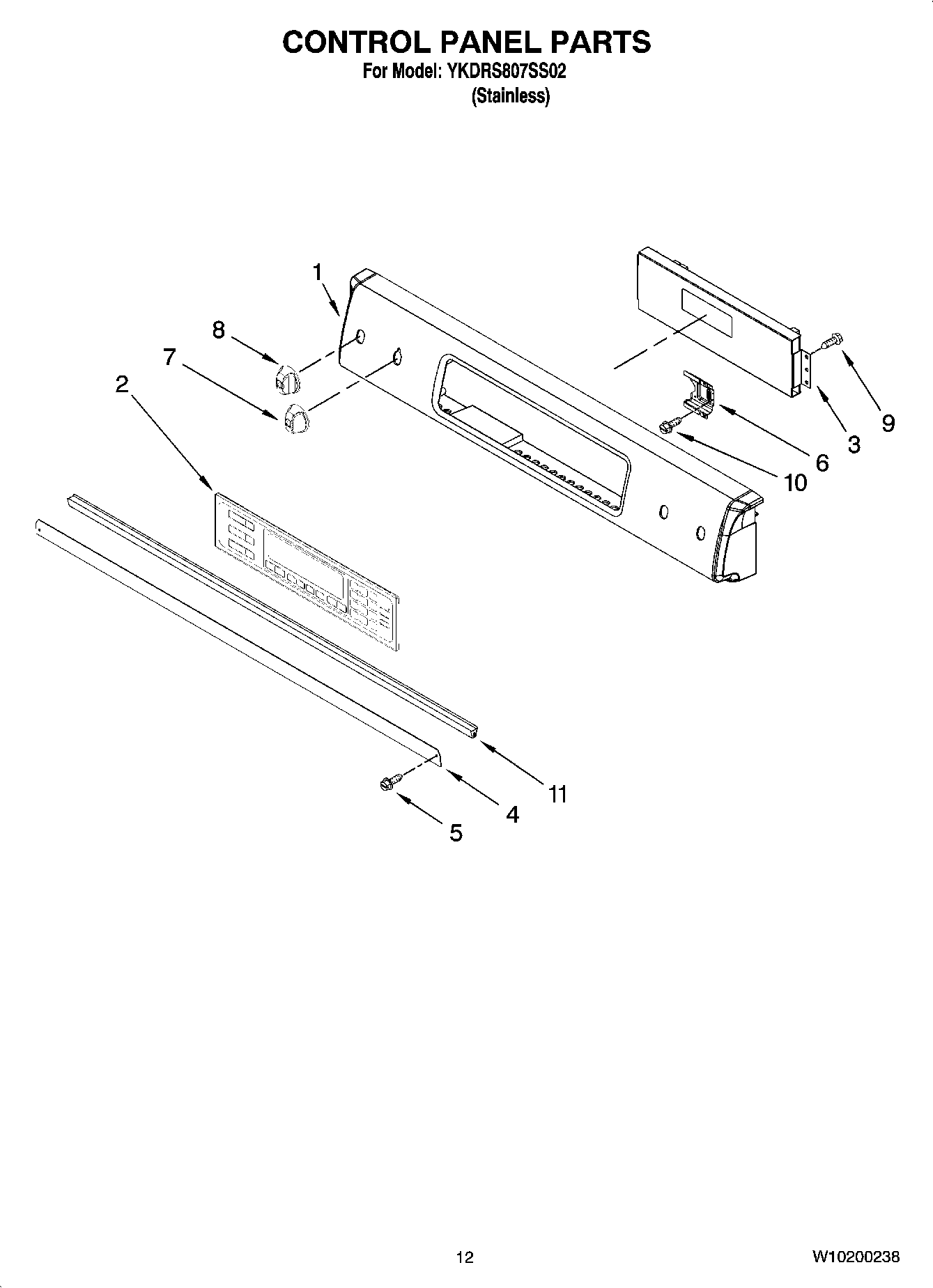

YKDRS807SS02 09 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL W10111397
	9763481 Whirlpool Oven Wire Harness
	261900 Whirlpool Microwave Spray
	WP4455352 Whirlpool Mounting Bracket
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	HARNESS, COMMUNICATION
	W10157935 Whirlpool Wire Harness
	9756921 Whirlpool Oven Wire Harness
	Misce
	WIRING HARNESS PARTS
	SPLICING WIRES–25FT. LENGTH
	ADHESIVE
	Cord, Power
	W10110729 Whirlpool Wire Harness
	W10851603 Whirlpool Orifice
	9757426 Whirlpool Oven LP Conversion Kit
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Nut
	W11447673 Whirlpool Range Tip Anchor
	WP482338 Whirlpool Refrigerator Adhesive
	Wire, 25` Roll (Black 14 Ga.)
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	WP3400015 Whirlpool Screw
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	Spacer, Harness
	Clip, Ground Wire
	350930 Whirlpool White Spray Paint
	W11209404 Whirlpool Wire Harness
	Wire, 25` Roll (Red 14 Ga.)
1	Control Panel
2	WP9761566 Whirlpool Membrane Switch
3	Control, Electric
4	Shield, Console Vent
5	WP3196557 Whirlpool Screw
6	Bracket, Thermostat (2)
7	Knob (LF)
8	WPW10156265 Whirlpool Knob
9	Screw
10	Screw
11	W10116195 Whirlpool Vent Gasket
