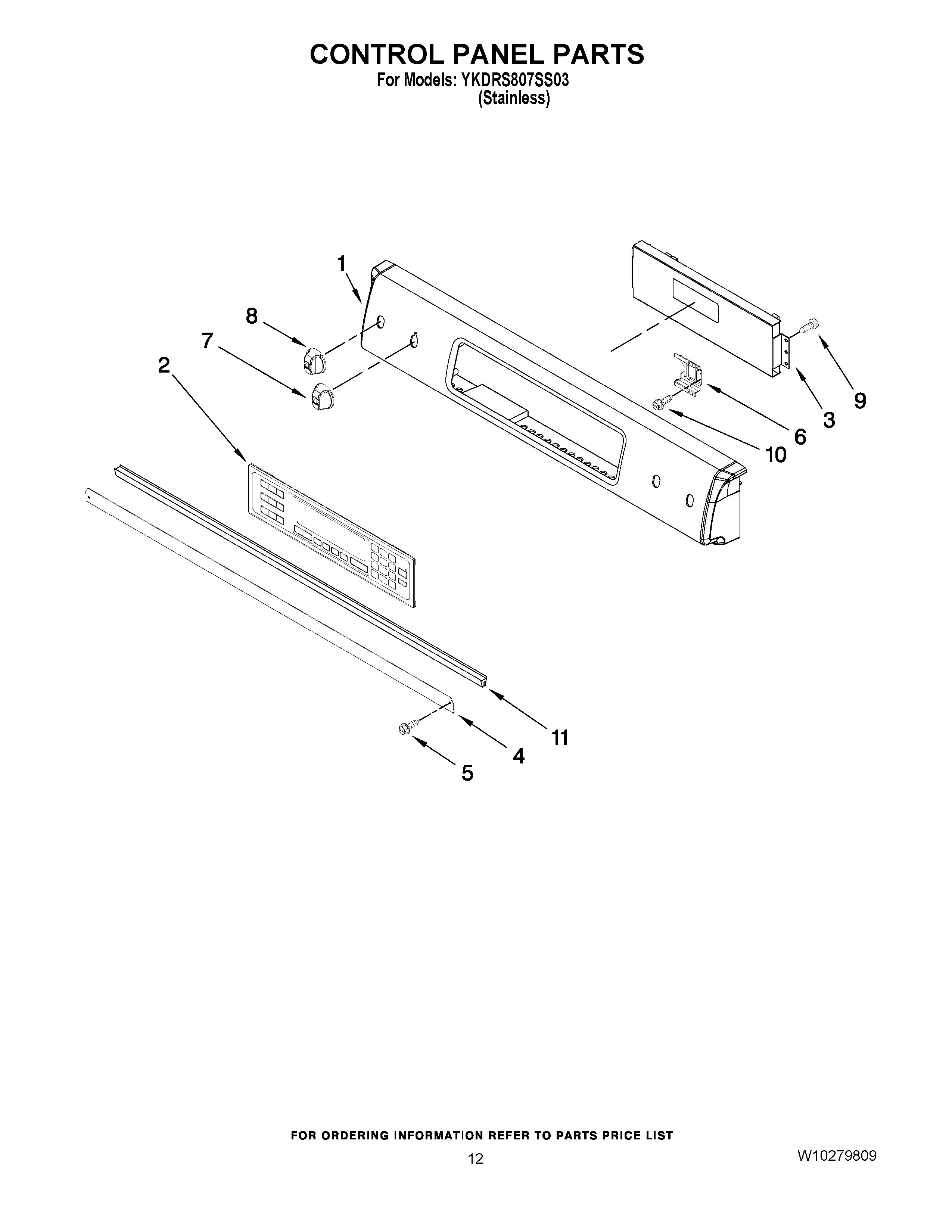

YKDRS807SS03 09 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Control Panel
2	WP9761566 Whirlpool Membrane Switch
3	Control, Electric
4	Shield, Console Vent
5	WP3196557 Whirlpool Screw
6	Bracket, Thermostat (2)
7	Knob (LF)
8	WPW10156265 Whirlpool Knob
9	Screw
10	Screw
11	W10116195 Whirlpool Vent Gasket
