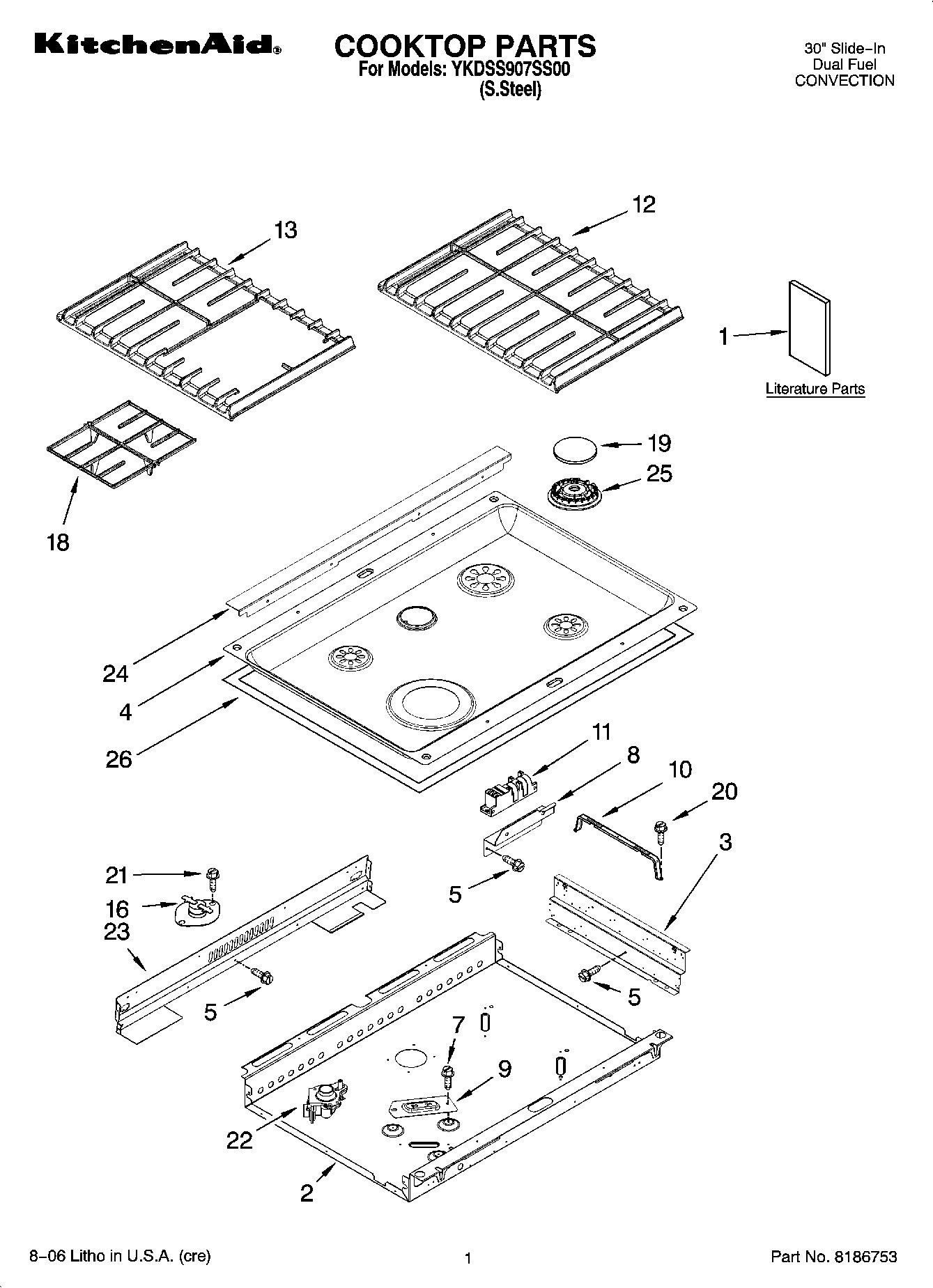

YKDSS907SS00 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet (French)
1	Tech Sheet
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Safe Cooking Tips (French)
1	Anti-Tip Instruct.
1	Safe Cooking Tips
1	Use & Care Guide
1	Easy Set Guide
2	Burner Box
3	Bracket, Mounting
4	Cooktop
5	WP3196557 Whirlpool Screw
7	WP12990527 Whirlpool Microwave Screw
8	Bracket, Spark Module
9	Bracket, Burner
10	WP9756821 Whirlpool Support
11	WPW10110491 Whirlpool Spark Module
12	Grate, Burner (RH)
13	Grate, Burner (LH)
16	WP9759944 Whirlpool Thermostat
18	GRATE-BRNR
19	9761563CB Whirlpool Burner Cap
19	WP8284669 Whirlpool Burner Cap
20	WP4449809 Whirlpool Screw
21	W10491985 Whirlpool Screw
22	WPW10128455 Whirlpool Orifice Holder
22	WPW10128446 Whirlpool Orifice Holder
23	Cover, Cooktop Rear
24	WP9763436 Whirlpool Rear Cover
25	WPW10406243 Whirlpool Burner Head Auxiliary 6K
25	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
26	Gasket
