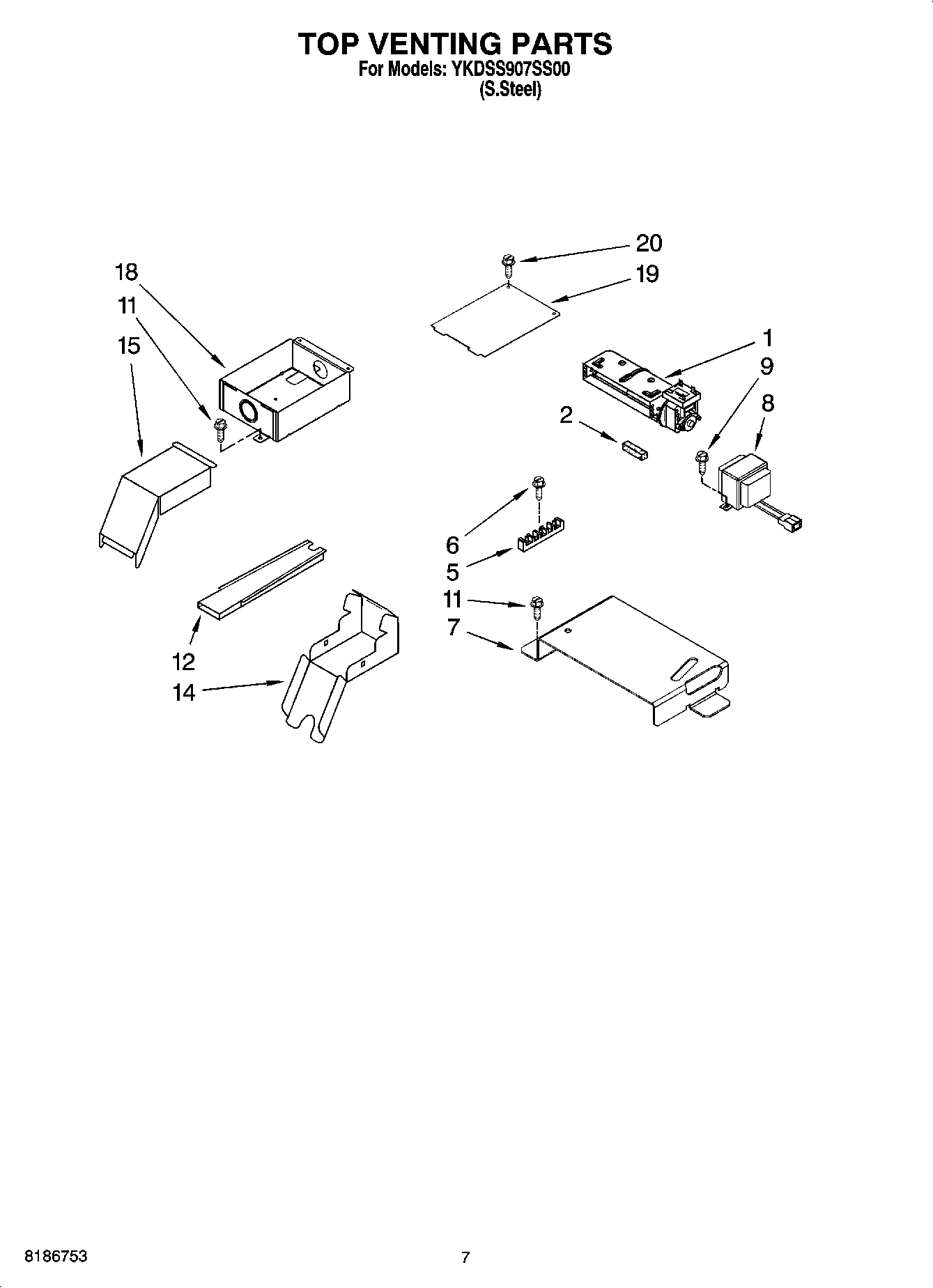

YKDSS907SS00 04 – TOP VENTING PARTS

YKDSS907SS00 04 – TOP VENTING PARTS

Written by

in

YKDSS907SS00 04 – TOP VENTING PARTS

Products

PositionProduct
1W10810687 Whirlpool Blower Assembly
2W10491987 Whirlpool Foam Seal
5WP8203546 Whirlpool Terminal Block
6Screw
7WP9757829 Whirlpool Mounting Bracket
8WPW10111628 Whirlpool Transformer
9WP3196557 Whirlpool Screw
11WP4449809 Whirlpool Screw
124451759 Whirlpool Oven Exhaust Vent
144455177 Whirlpool Oven Bottom Elbow
154455178 Whirlpool Oven Top Elbow
18Box, Terminal
19Cover, Terminal Box
20W10491985 Whirlpool Screw
