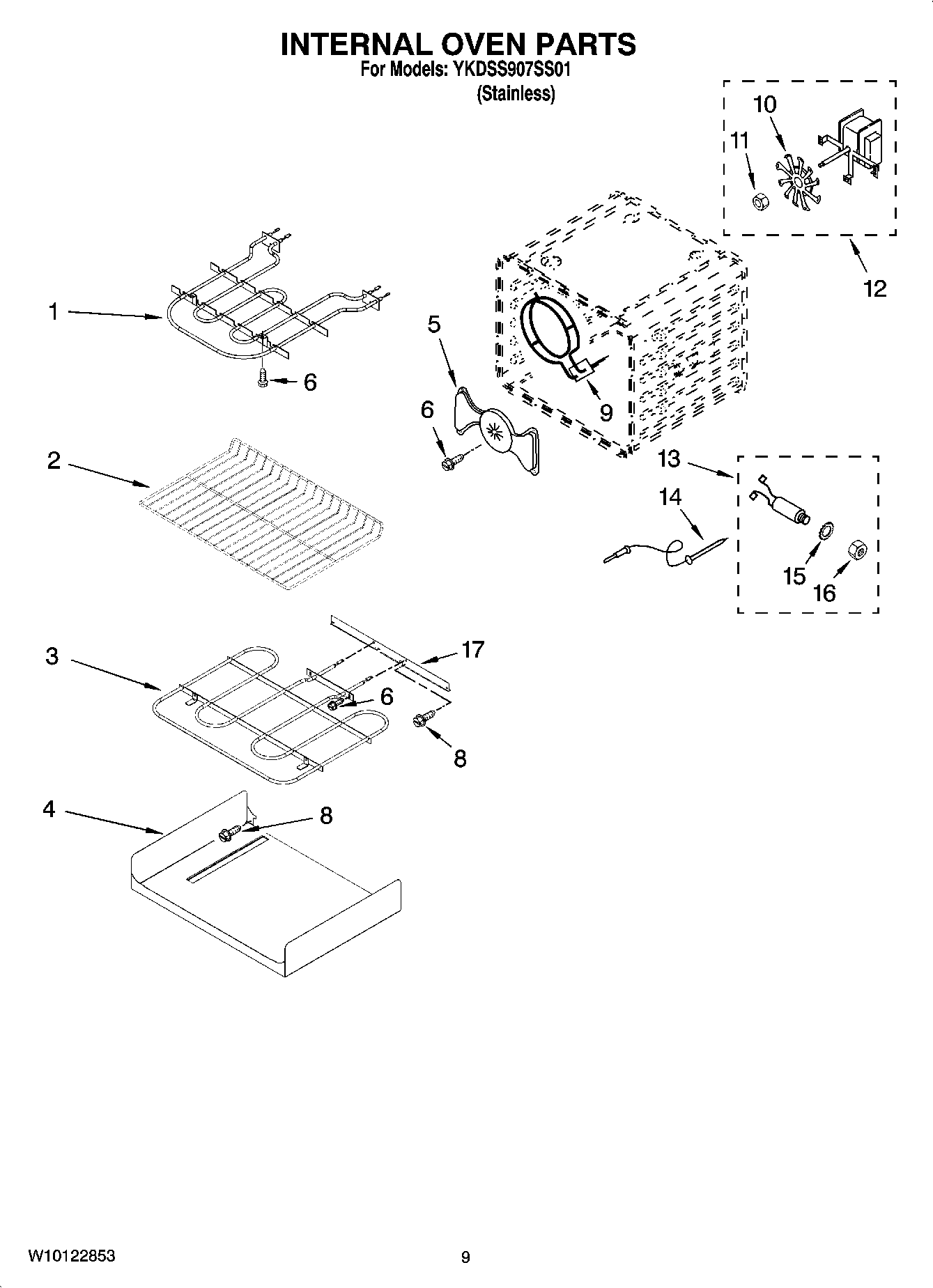

YKDSS907SS01 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2WPW10179152 Whirlpool Rack Oven
3ELMNT-BAKE
4Tray, Hidden Bake
5W10860133 Whirlpool Convection Baffle
6WP4449154 Whirlpool Screw
8WP4449809 Whirlpool Screw
9WP9760769 Whirlpool Element Assembly
10WP4452226 Whirlpool Convection Fan
11Nut
12Motor Convection
138186589 Whirlpool Jack Probe
14WP9755542 Whirlpool Oven Meat Probe
15WP9755547 Whirlpool Lockwasher
16WP9755546 Whirlpool Locknut
174450039 Whirlpool Oven Access Cover
