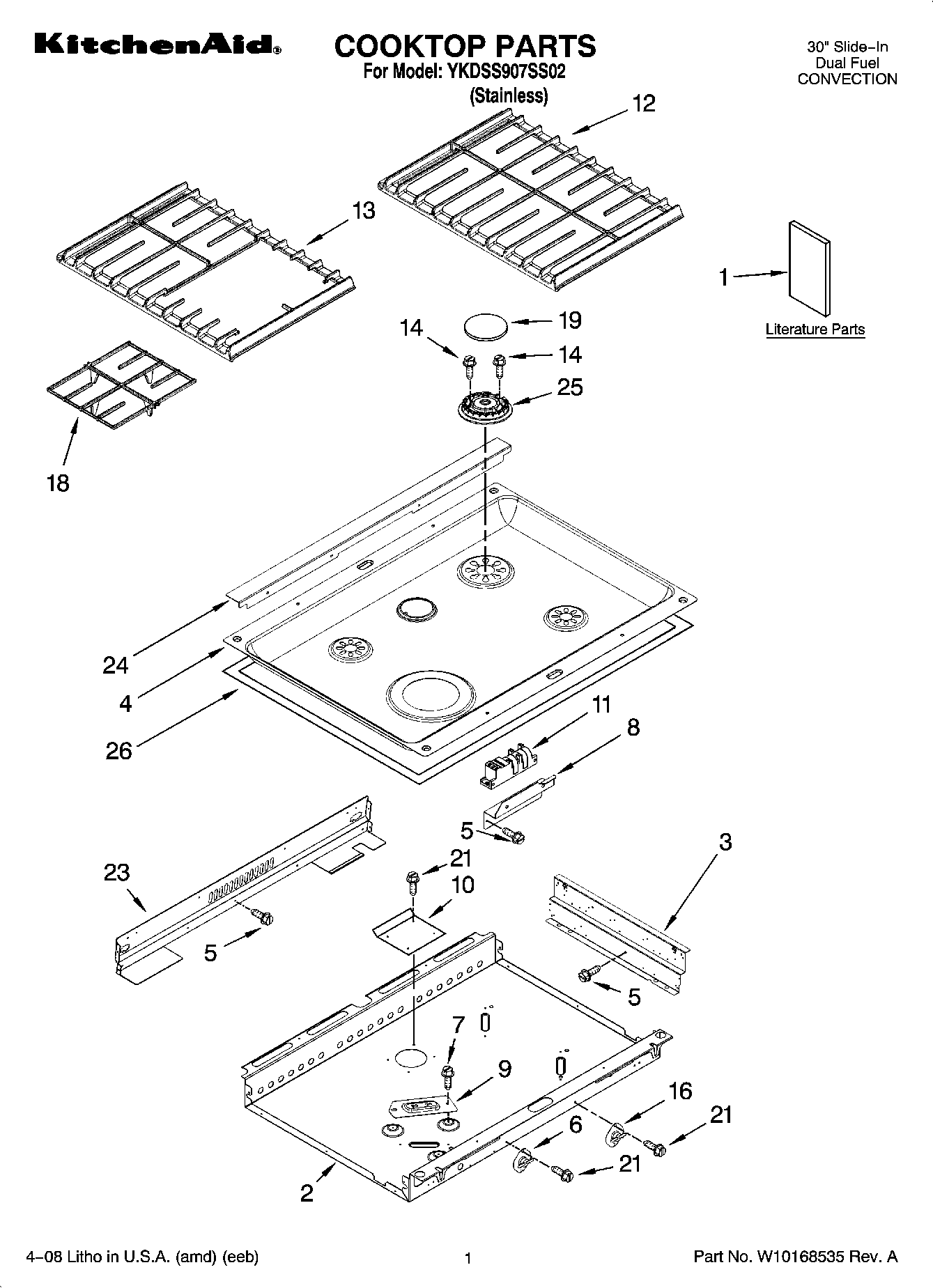

YKDSS907SS02 01 – COOKTOP PARTS
Written by
in
YKDSS907SS02 01 – COOKTOP PARTS
Products
Position
Product
1
Tech Sheet
1
Use & Care Guide
1
SAFER COOKING TIPS (ENGLISH
1
Safer Cooking Tips (French)
1
Installation Instructions
1
Anti-Tip Instruct.
1
Easy Set Guide
2
Burner Box
3
Bracket, Mounting
4
Cooktop
5
WP3196557 Whirlpool Screw
6
WP9757807 Whirlpool High Limit Thermostat
7
WP12990527 Whirlpool Microwave Screw
8
Bracket, Spark Module
9
Bracket, Burner
10
Shield, Heat
11
WPW10110491 Whirlpool Spark Module
12
Grate, Burner (RH)
13
Grate, Burner (LH)
14
WP3368921 Whirlpool Screw
16
WP9759944 Whirlpool Thermostat
18
GRATE-BRNR
19
9761563CB Whirlpool Burner Cap
19
WP8284669 Whirlpool Burner Cap
21
W10491985 Whirlpool Screw
23
Cover, Cooktop Rear
24
WP9763436 Whirlpool Rear Cover
25
WPW10406243 Whirlpool Burner Head Auxiliary 6K
25
WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
26
Gasket
←
