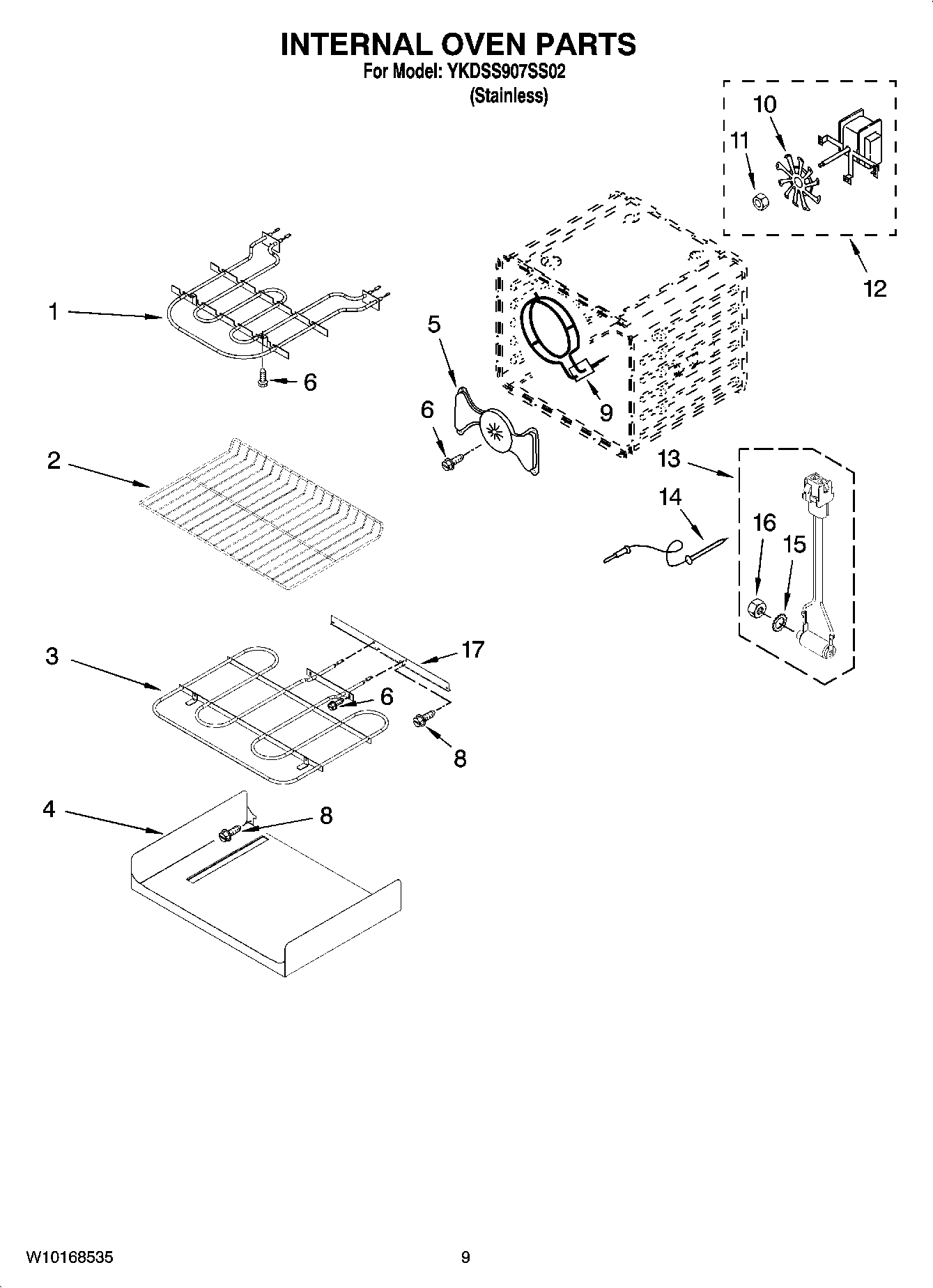

YKDSS907SS02 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	WPW10179152 Whirlpool Rack Oven
3	ELMNT-BAKE
4	Tray, Hidden Bake
5	W10860133 Whirlpool Convection Baffle
6	WP4449154 Whirlpool Screw
8	WP4449809 Whirlpool Screw
9	WP9760769 Whirlpool Element Assembly
10	W10758272 Whirlpool Convection Fan
11	WPW10116349 Whirlpool Nut
12	W10794022 Whirlpool Oven Cooktop Fan Motor
13	8186589 Whirlpool Jack Probe
14	WP9755542 Whirlpool Oven Meat Probe
15	WP9755547 Whirlpool Lockwasher
16	WP9755546 Whirlpool Locknut
17	4450039 Whirlpool Oven Access Cover
