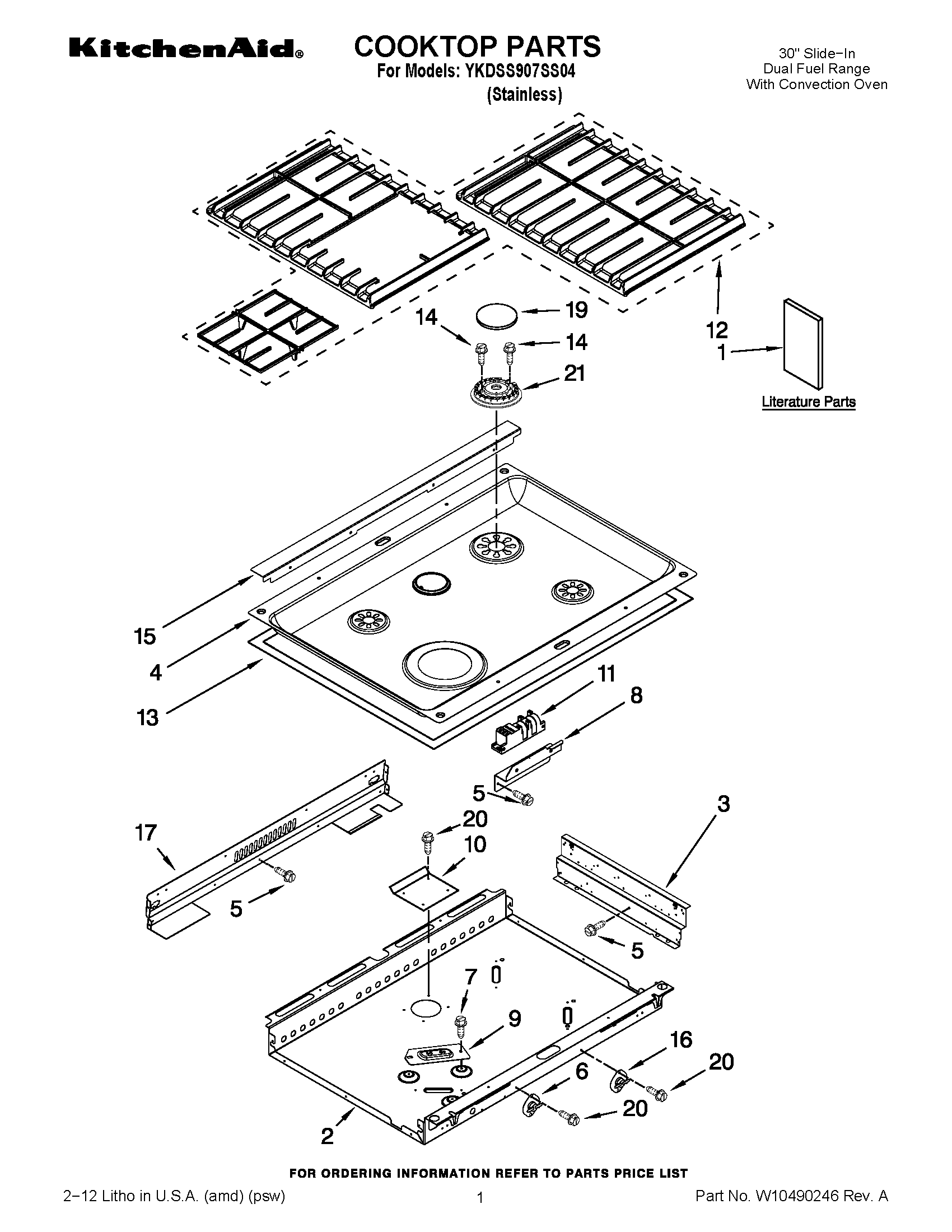

YKDSS907SS04 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Easy Set Guide
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1Tech Sheet
2BURNER BOX
3Bracket, Mounting
4Cooktop
5WP3196557 Whirlpool Screw
6WP9757807 Whirlpool High Limit Thermostat
7WP12990527 Whirlpool Microwave Screw
8Bracket, Spark Module
9Bracket, Burner
10Shield, Heat
11WPW10110491 Whirlpool Spark Module
12W10338795 Whirlpool Grate Kit Assembly
13Gasket
14WP3368921 Whirlpool Screw
15WP9763436 Whirlpool Rear Cover
16WP9759944 Whirlpool Thermostat
17Cover, Cooktop Rear
20W10491985 Whirlpool Screw
21WPW10406243 Whirlpool Burner Head Auxiliary 6K
21WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
