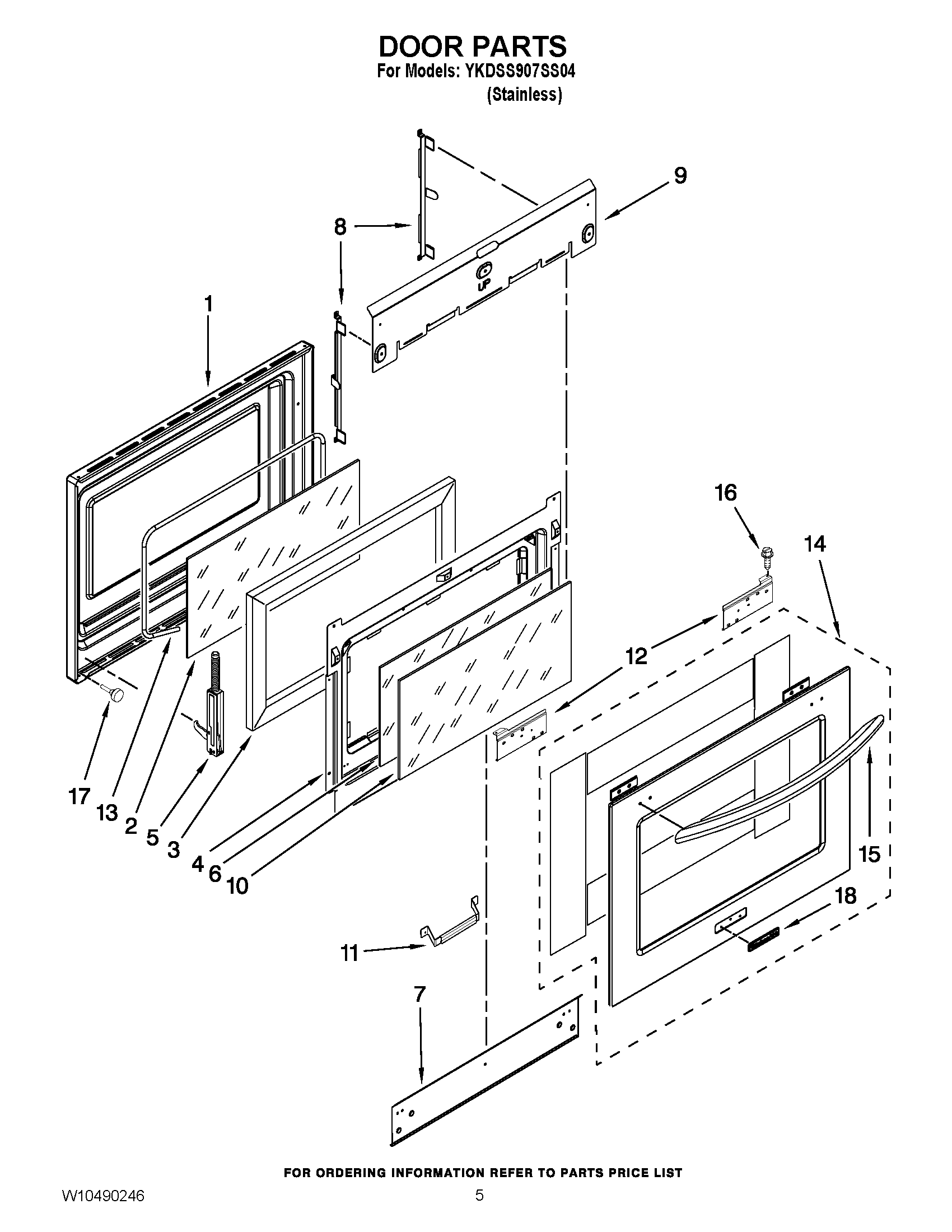

YKDSS907SS04 03 – DOOR PARTS

Products

Position	Product
1	PANEL, DOOR
2	WP9757706 Whirlpool Door Inner Glass
3	WP4451722 Whirlpool Door Insulation Assembly
4	WP4457132 Whirlpool Retainer
5	WP9760579 Whirlpool Right Door Hinge
5	HINGE-DOOR LH/SS DOOR SPRING
7	4457114 Whirlpool Oven Heat Shield
8	WP9759229 Whirlpool Mounting Bracket
9	SHIELD, HEAT TOP
10	WP9759225 Whirlpool Inner Door Glass
11	Bracket (3rd Glsss)
12	BRACKET, HANDLE (LEFT)
12	BRACKET, HANDLE (RIGHT)
13	8522415 Whirlpool Oven Wind Gasket
14	W10155557 Whirlpool Glass Door
15	HANDLE, DOOR
16	WPW10132940 Whirlpool Dishwasher Screw
17	4448520 Whirlpool Oven Bumper
18	WPW10243391 Whirlpool Refrigerator Nameplate
