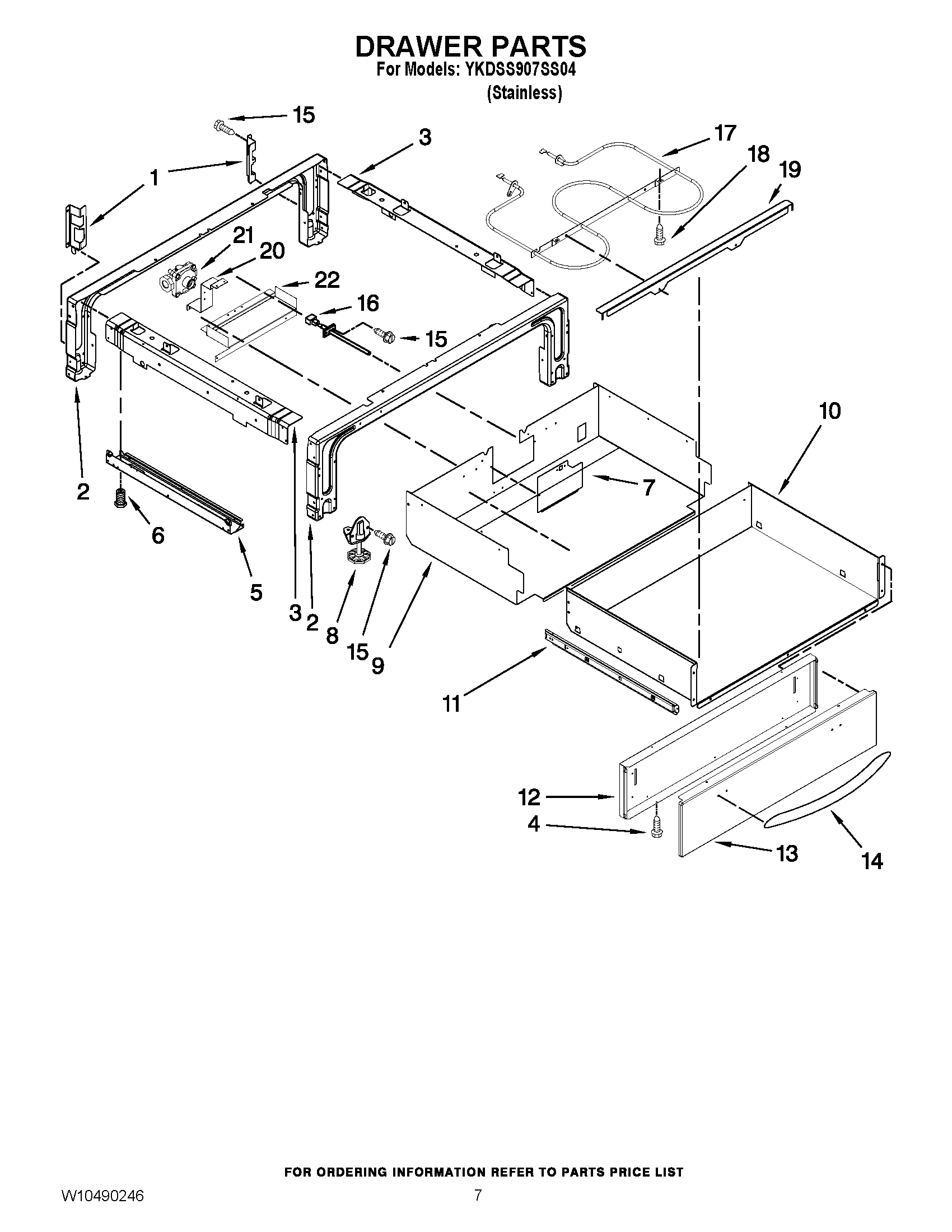

YKDSS907SS04 04 – DRAWER PARTS

Products

PositionProduct
1Support (R.Hand)
1Support (L.Hand)
2Support, Front & Rear
3Brace, Drawer (Right)
3Brace, Drawer (Left)
4WP3400805 Whirlpool Screw Assembly
5Side, Base (L.Side)
5Side, Base (R.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
7Cover, Access
8WP3196037 Whirlpool Leveling Foot
9Enclosure, Warming Drawer
10DRAWER
11WPW10155633 Whirlpool Drawer Slide Rail
11WPW10155632 Whirlpool Slide Drawer Assembly
12PANEL, DRAWER
13Front, Drawer (Stainless)
14HANDLE, DRAWER
15WP3196557 Whirlpool Screw
16WP8274149 Whirlpool Sensor Assembly
17ELEMENT, WARMING DRAWER
18SCREW
19Support, Element
20Bracket, Regulator
21Regulator
22Cover, Terminal
