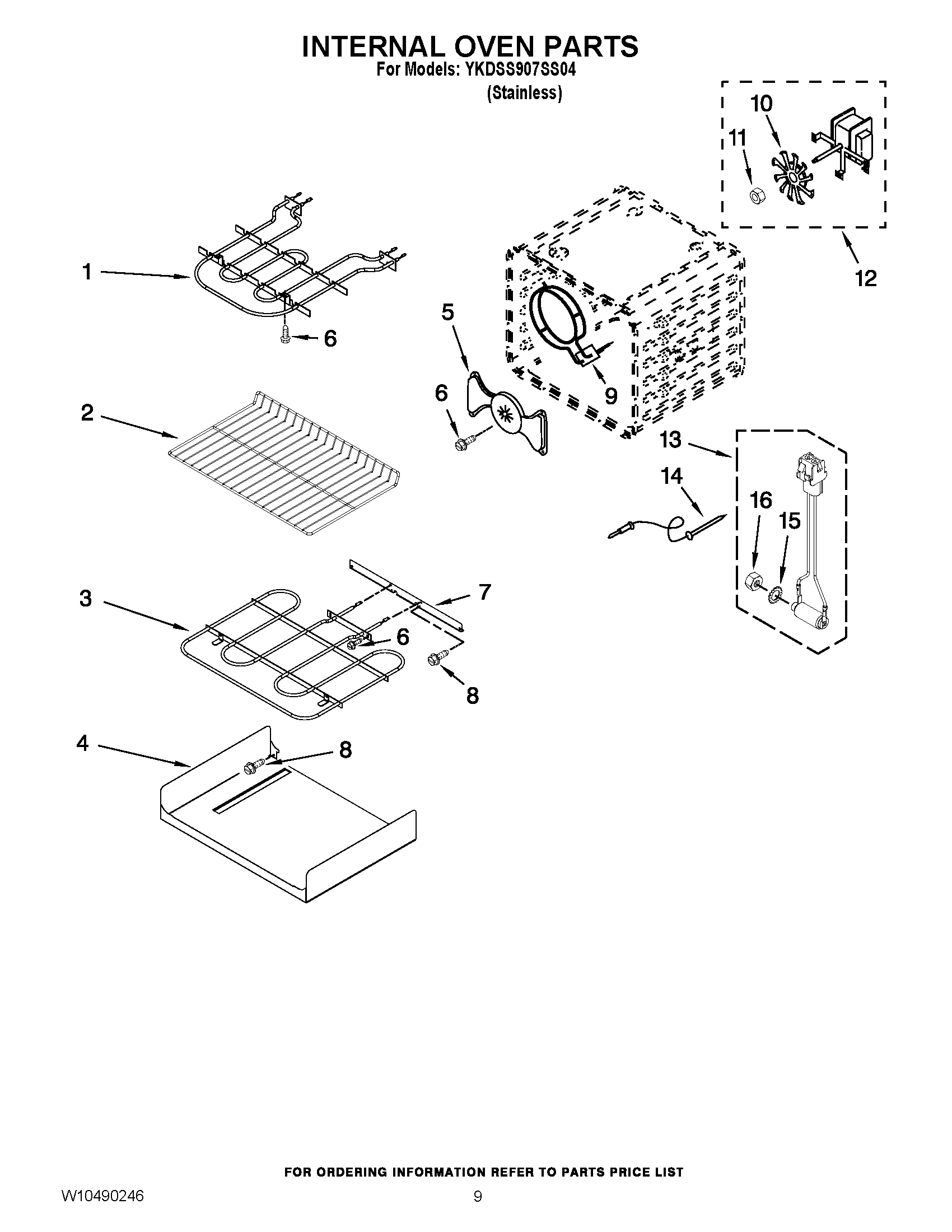

YKDSS907SS04 06 – INTERNAL OVEN PARTS

YKDSS907SS04 06 – INTERNAL OVEN PARTS

Written by

in

YKDSS907SS04 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2WPW10179152 Whirlpool Rack Oven
3ELMNT-BAKE
4Tray, Hidden Bake
5W10860133 Whirlpool Convection Baffle
6WP4449154 Whirlpool Screw
74450039 Whirlpool Oven Access Cover
8SCREW
9WP9760769 Whirlpool Element Assembly
10W10758272 Whirlpool Convection Fan
11WPW10116349 Whirlpool Nut
12W10794022 Whirlpool Oven Cooktop Fan Motor
138186589 Whirlpool Jack Probe
14WP9755542 Whirlpool Oven Meat Probe
15WP9755547 Whirlpool Lockwasher
16WP9755546 Whirlpool Locknut
