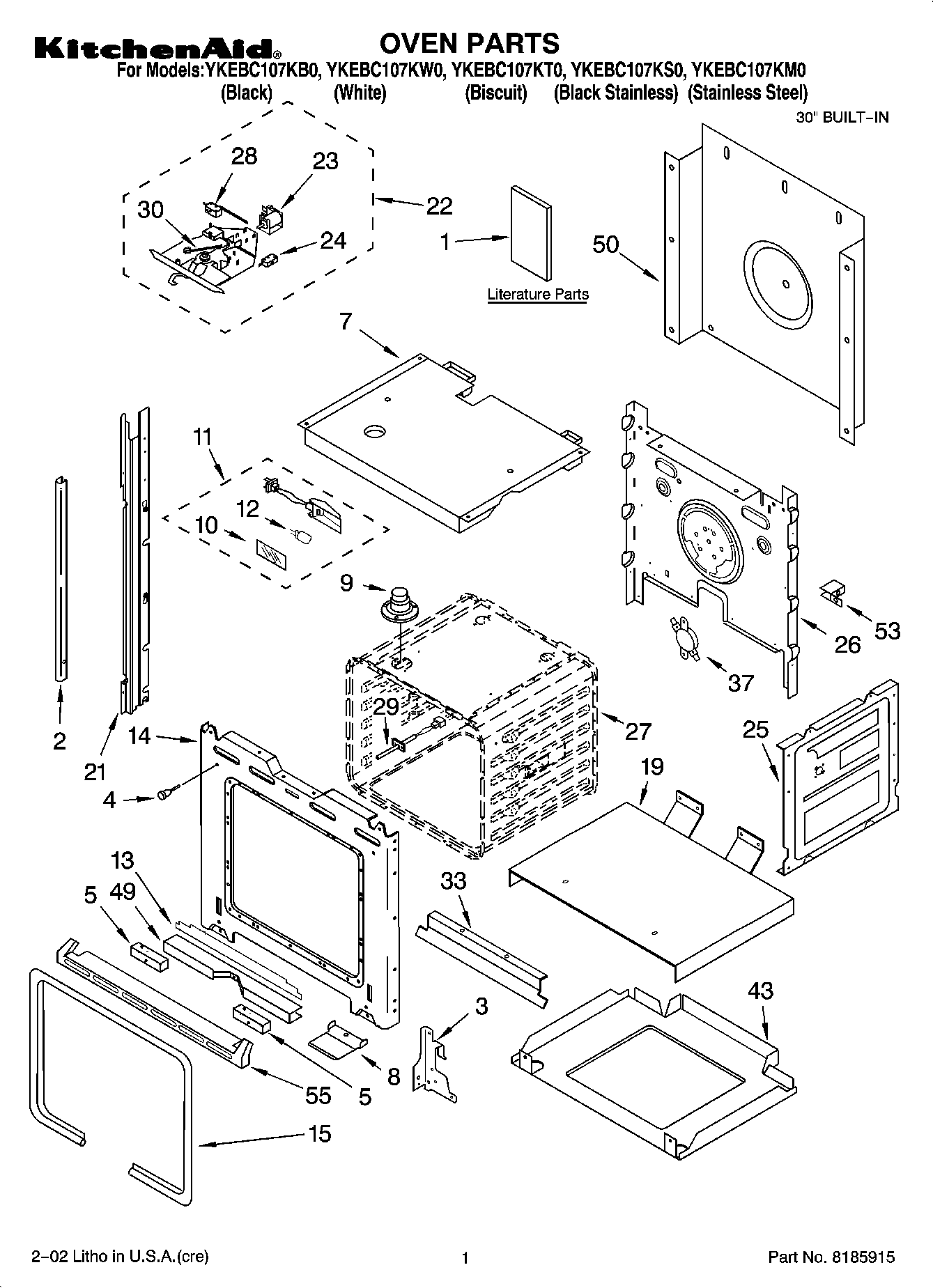

YKEBC107KM0 01 – OVEN PARTS

YKEBC107KM0 01 – OVEN PARTS

Written by

in

YKEBC107KM0 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Tech Sheet (French))
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Tech Sheet (English))
2Trim, Side Left (Black)
2WPW10144983 Whirlpool Trim
2Trim, Side (Left Hand) (Biscuit)
2Trim, Side (Right Hand) (Biscuit)
2W10144984 Whirlpool Trim
24455377 Whirlpool Oven Trim
2Trim, Side (LH White)
2WP8281236 Whirlpool Screw
2Trim, Side (RH White)
3WP4449743 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
7Top, Chassis
84455807 Whirlpool Oven Vent Deflector
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation Bottom Vent
14Frame, Front
14WP4450118 Whirlpool Nut
14Screw
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Li
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
339760677 Whirlpool Oven Vent Deflector
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WP4449809 Whirlpool Screw
53WPL 4449845
55WP3400832 Whirlpool Screw
554452152 Whirlpool Oven Mounting Bracket
55WPL 4450365
55W11684730 Whirlpool Insulation
55WPL 4455445
55WPL 4455147
55WPL 4455443
55WPL ARI137053A
