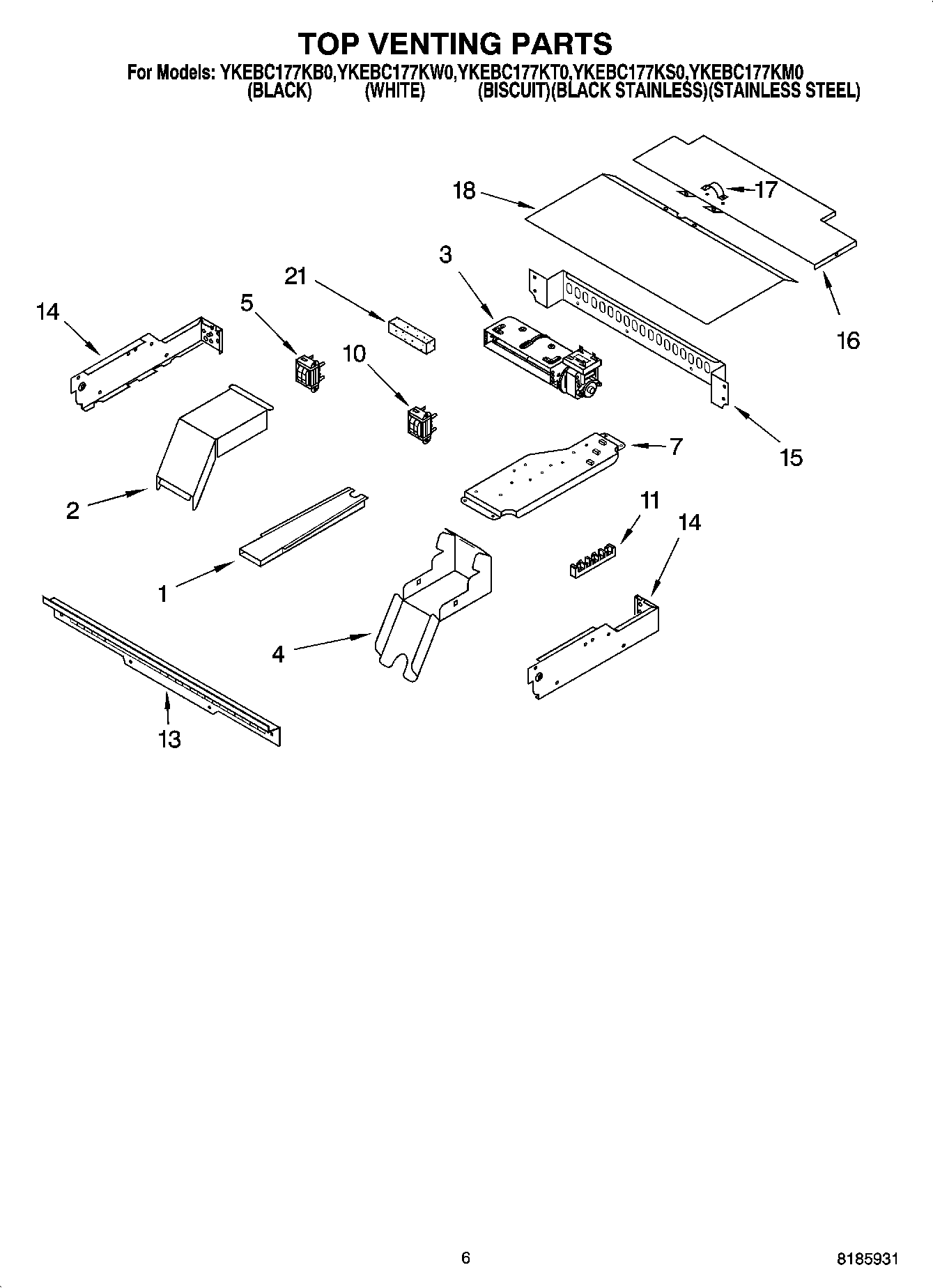

YKEBC177KM0 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI137086A
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	WPL ARI137087A
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	Harness, Wire (Main)
	WPL ARI137084A
	WPL ARI137085A
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	4450800 Whirlpool Oven Screw
	4448664 Whirlpool Oven Mounting Bracket
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Wire, 25“ Roll (White 14 GA.)
	WP4449809 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	Spacer, Harness
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	WP4448950 Whirlpool Screw
	814381 Whirlpool Pin
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	Blower
4	4455177 Whirlpool Oven Bottom Elbow
5	WP9760588 Whirlpool Transformer
7	Plate, Mounting
10	Transformer, Control
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	WP3400832 Whirlpool Screw
13	Vent, (Control Panel)
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
21	W10491987 Whirlpool Foam Seal
