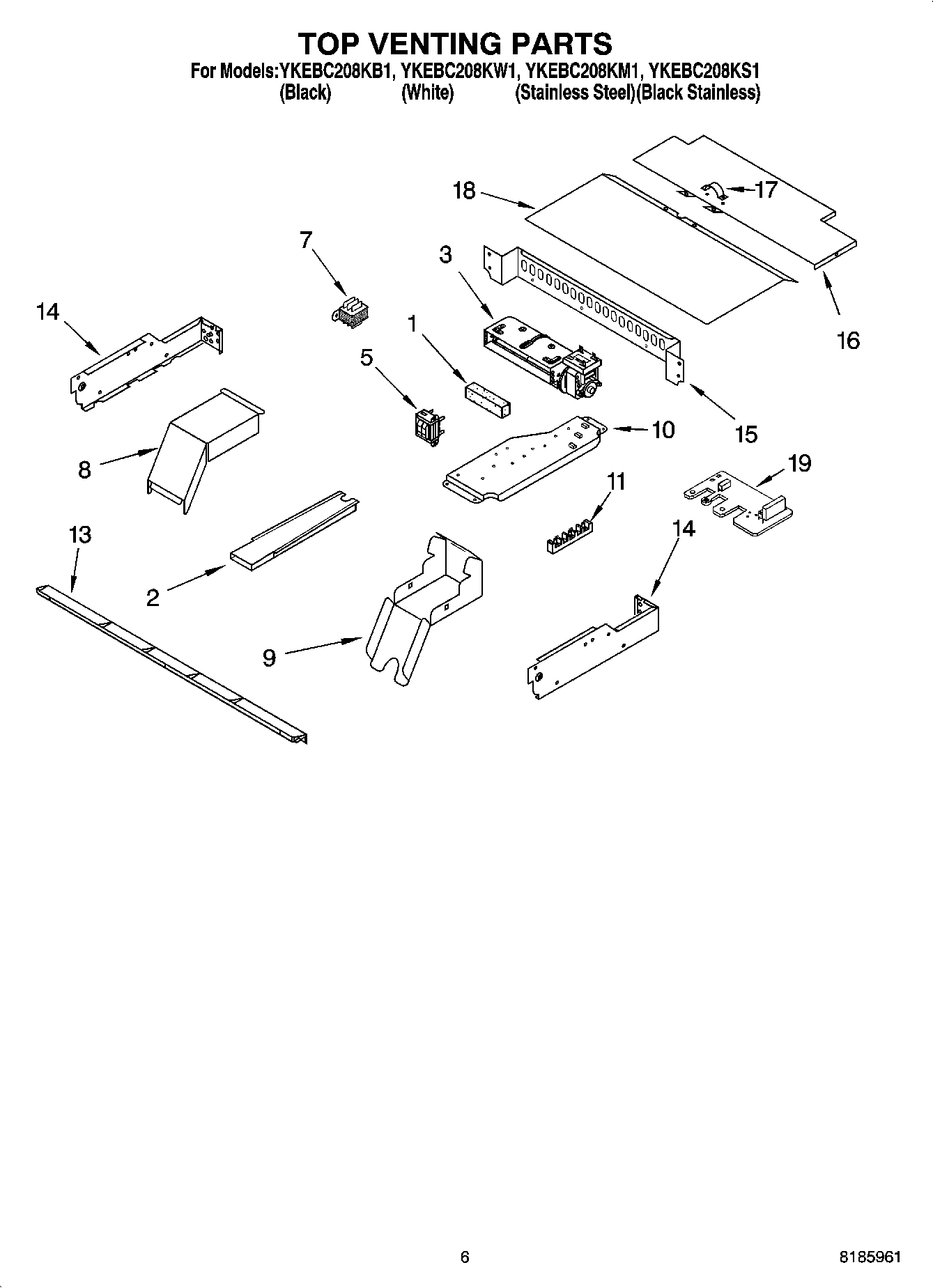

YKEBC208KS1 05 – TOP VENTING PARTS, OPTIONAL PARTS

YKEBC208KS1 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

YKEBC208KS1 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI137140A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL ARI137139A
WPL ARI137138A
WPL 4455728
WPL ARI137141A
261900 Whirlpool Microwave Spray
Harness, Wire (Latch)
4451761 Whirlpool Oven Support Bracket
WPL 591014
1
16515 Whirlpool Clip
4452400 Whirlpool Microwave Wire Harness
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
WP482338 Whirlpool Refrigerator Adhesive
Conduit, Double
350930 Whirlpool White Spray Paint
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
Wire, 25“ Roll (White 14 GA.)
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3Blower (Upper Oven 60MM)
34455191 Whirlpool Oven Mounting Plate
3WPW10016550 Whirlpool Blower Cooling Fan
5WP9760588 Whirlpool Transformer
7Transformer, Control
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
10Plate, Mounting
11Screw
11WP8203546 Whirlpool Terminal Block
13Vent, Control Panel
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
18Spacer, Foam
19WP4451985 Whirlpool Noise Filter Board
