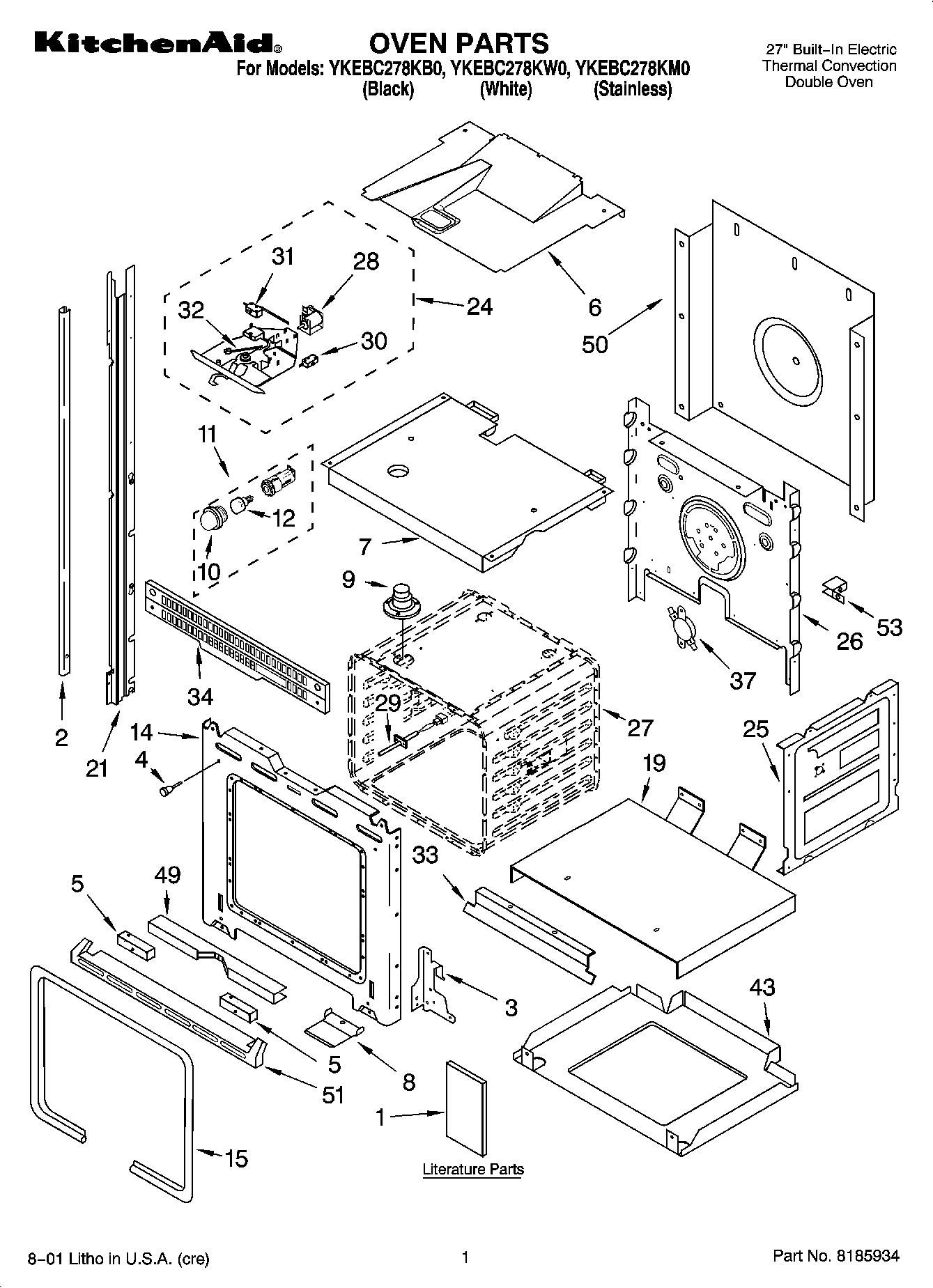

YKEBC278KB0 01 – OVEN PARTS

YKEBC278KB0 01 – OVEN PARTS

Written by

in

YKEBC278KB0 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Easy Set Guide)
1OVEN PARTS
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet (English))
1Literature Parts (Tech Sheet (French))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Use & Care Guide (French))
2Trim, Side (LH Black)
2Trim, Side Right (White)
2Trim, Side Left (White)
2Trim, Side (Stainless Steel)
2Trim, Side (Stainless Steel)
2WP8281236 Whirlpool Screw
2WP4455426 Whirlpool Trim
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Divider, Vent
7Top, Chassis
84455807 Whirlpool Oven Vent Deflector
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4173175 Whirlpool Light Bulb
14Frame, Front
14Screw
14WP4450118 Whirlpool Nut
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
24Latch Assembly
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28Solenoid
29WPW10131825 Whirlpool Oven Temperature Sensor
30Microswitch N.C.
31Microswitch
32Spring, Latch
33Deflector, Vent
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
514452152 Whirlpool Oven Mounting Bracket
51WPL 4452480
51Trim, Bottom (White)
51WP3400832 Whirlpool Screw
51Trim, Bottom (Black)
53WPL 4449845
53WPL 4450364
53WPL 4449315
53WP4449809 Whirlpool Screw
53WPL ARI137156A
