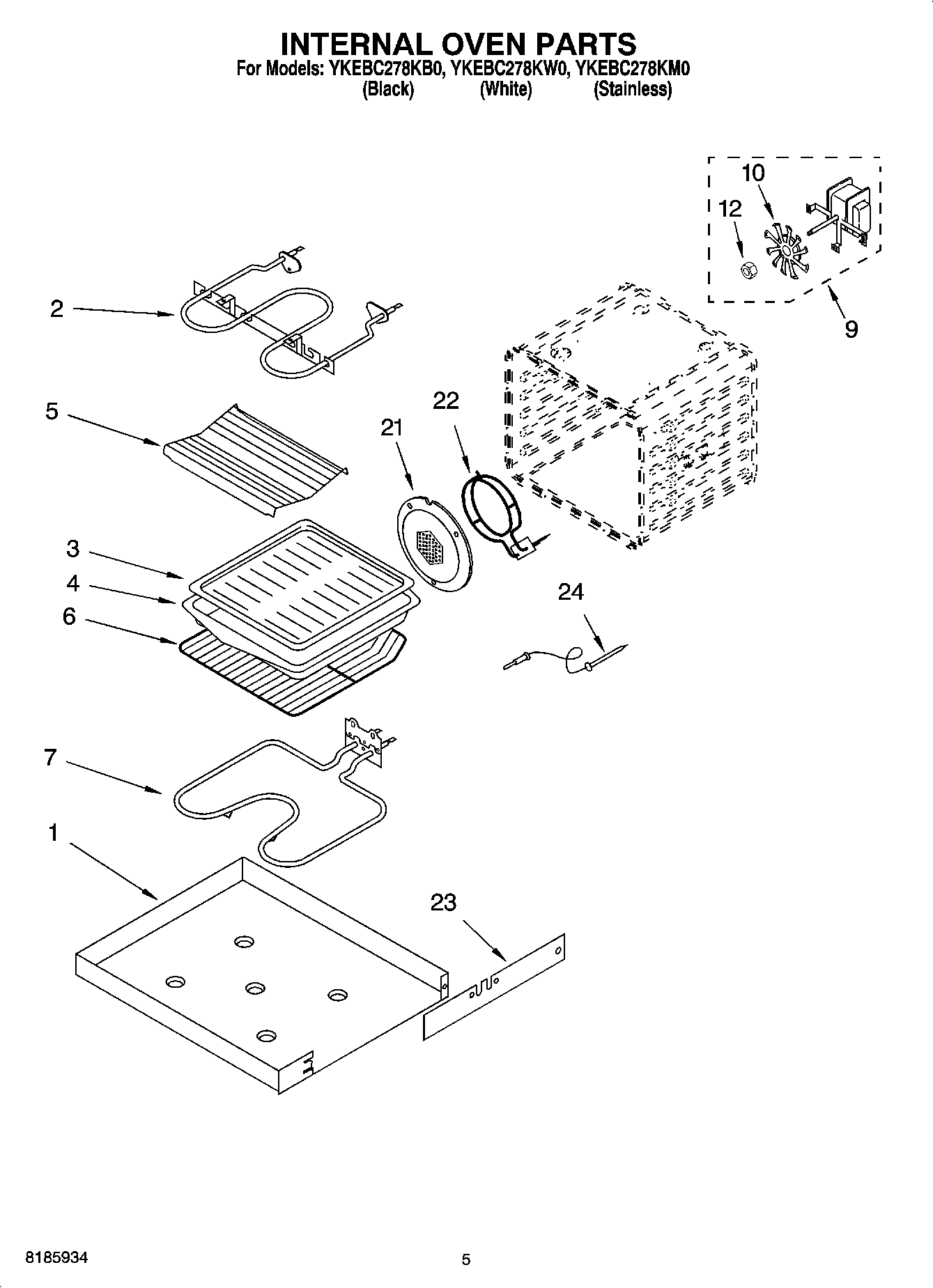

YKEBC278KM0 04 – INTERNAL OVEN PARTS

Products

Position	Product
1	Tray, Hidden Bake
2	WPW10207400 Whirlpool Broil Element
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Roasting
6	Rack, Oven
7	4451175 Whirlpool Bake Element
9	Motor Convection
10	WP4452226 Whirlpool Convection Fan
12	Nut
21	WP4449154 Whirlpool Screw
21	WPW10160821 Whirlpool Fan Cover
22	WP9760769 Whirlpool Element Assembly
22	Plug, Button
23	4450039 Whirlpool Oven Access Cover
24	8186589 Whirlpool Jack Probe
