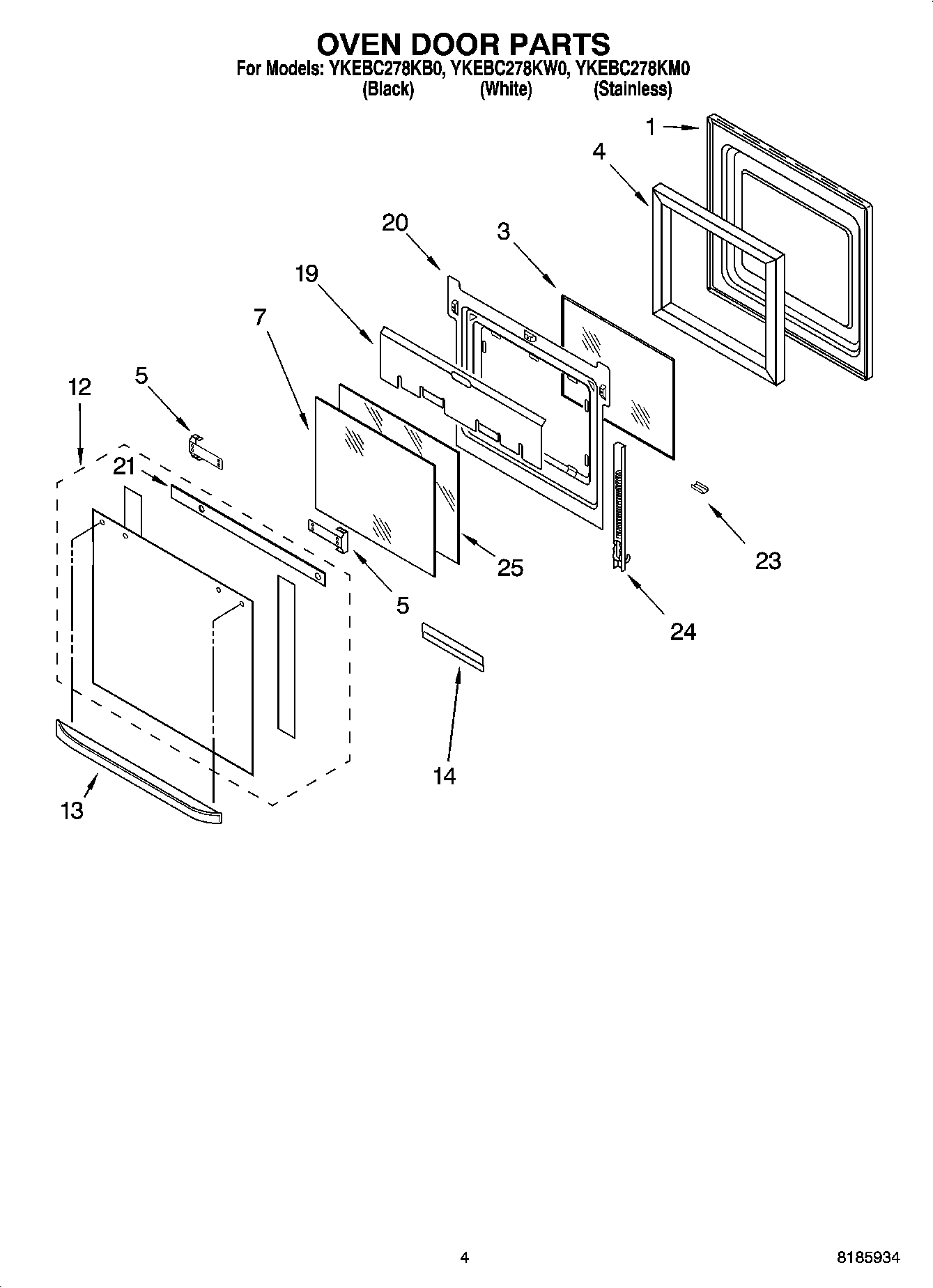

YKEBC278KW0 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle (L.Hand)
5	Bracket, Handle Stainless Steel Model (Left Hand)
5	4455803 Whirlpool Oven Bracket
5	Screw
7	WP4449257 Whirlpool Door Glass
12	Glass, Outer (Black)
12	WP4452315 Whirlpool Door Glass
12	Glass, Outer (White)
13	Handle, Door (White)
13	Handle, Door (Black)
13	Door Handle (Stainless Steel)
14	Retainer, Glass
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	HINGE-DOOR
24	WP9760572 Whirlpool Door Hinge
24	WP9760571 Whirlpool Door Hinge
24	WP4449743 Whirlpool Screw
24	HINGE-DOOR LH/SS DOOR SPRING
25	Glass, Inner
