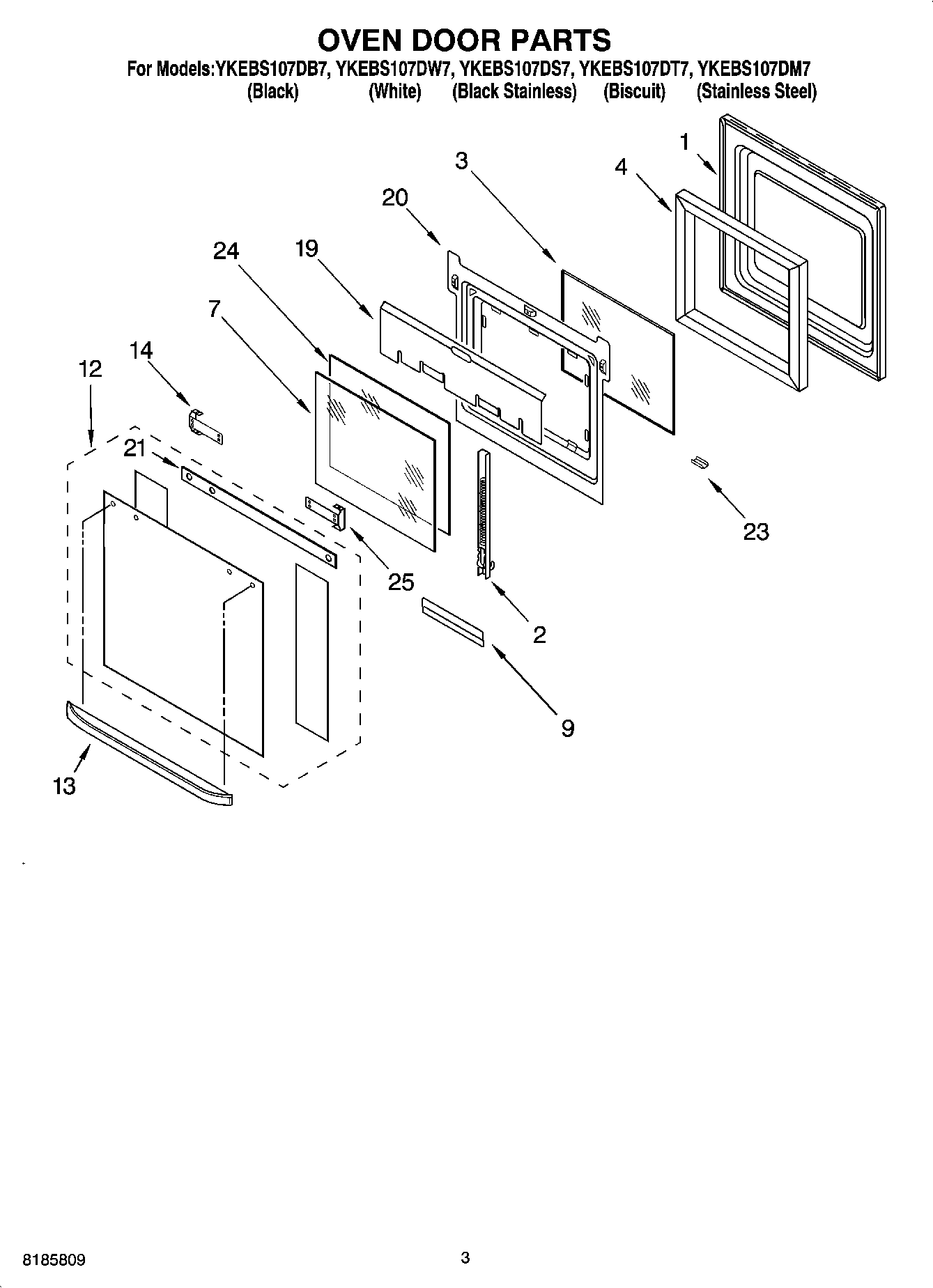

YKEBS107DB7 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760578 Whirlpool Oven Left Door Hinge
2	WP4449743 Whirlpool Screw
2	WP9760571 Whirlpool Door Hinge
2	WP9760577 Whirlpool Oven Right Door Hinge
2	WP9760572 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	W10401225 Whirlpool Oven Outer Door Glass
12	Door Glass, Assy (Biscuit Model)
12	Door Glass, Assy (Black-Stainless)
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass, Assy (White Model)
13	Door Handle (Black Model)
13	Handle, Door (Biscuit)
13	Handle, Door (White Model)
13	Handle, Door (Stainless)
14	Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Retainer, Glass-Clip (Stainless Steel)
24	Glass, Inner
25	Bracket, Handle
25	Bracket, Handle (L.Hand)
25	4455803 Whirlpool Oven Bracket
