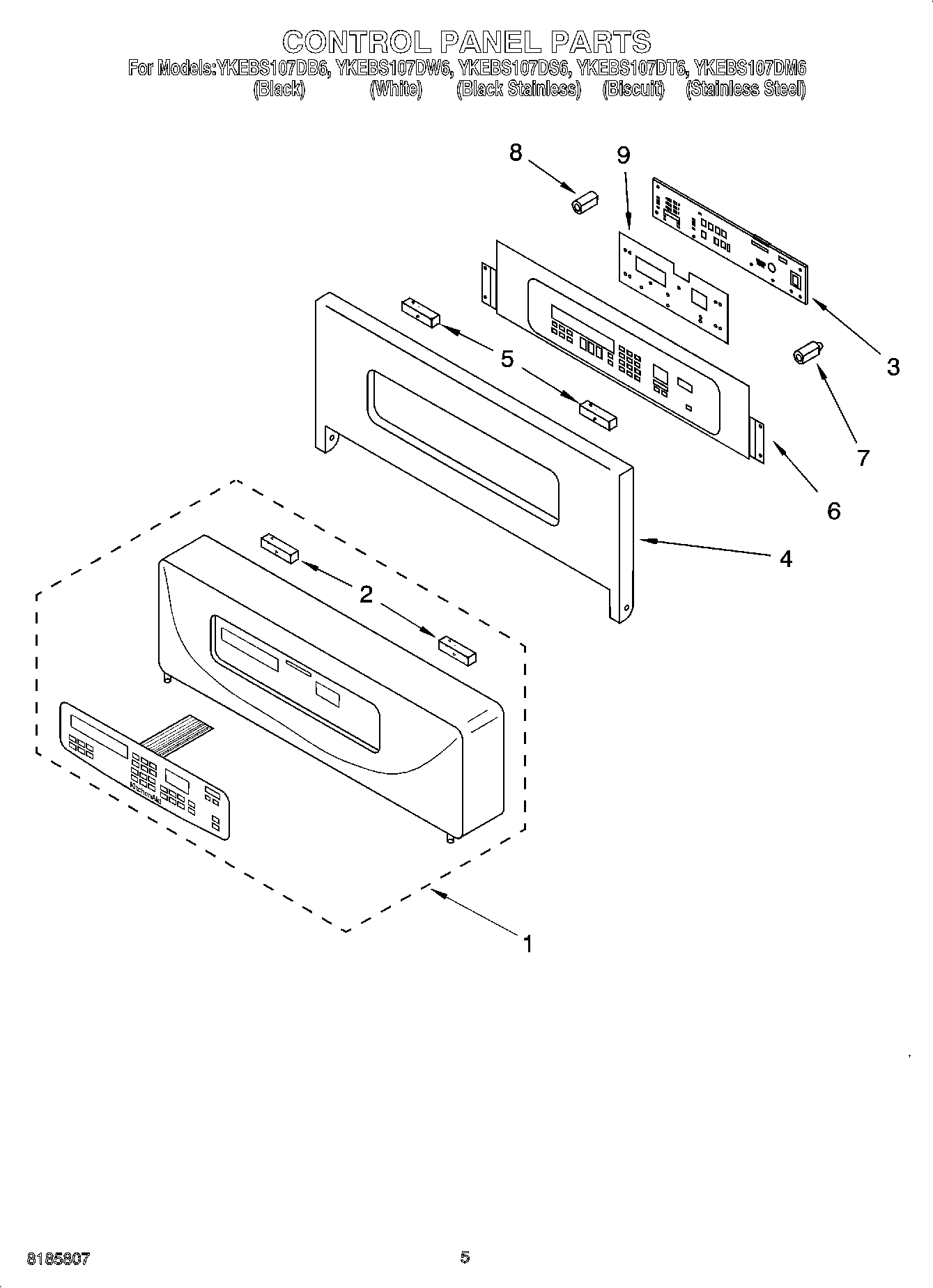

YKEBS107DM6 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel Assy W/Membrane Switch (Black)
1Control Panel Assy. W/Membrane Switch (White Model)
1Control Panel Assy W/Membrane Switch (Biscuit)
2Gasket, Control Panel
3NOTE: The following components are used on the Stainless Steel Model.
3WP3400832 Whirlpool Screw
3WP4449745 Whirlpool Screw
3Microcomputer
4Panel, Control (Stainless)
5Spacer, Foam
6Switch Membrane (Stainless Steel)
7Insulation, Board
8Insulation, Board Support
9Insulator, Dialectric
