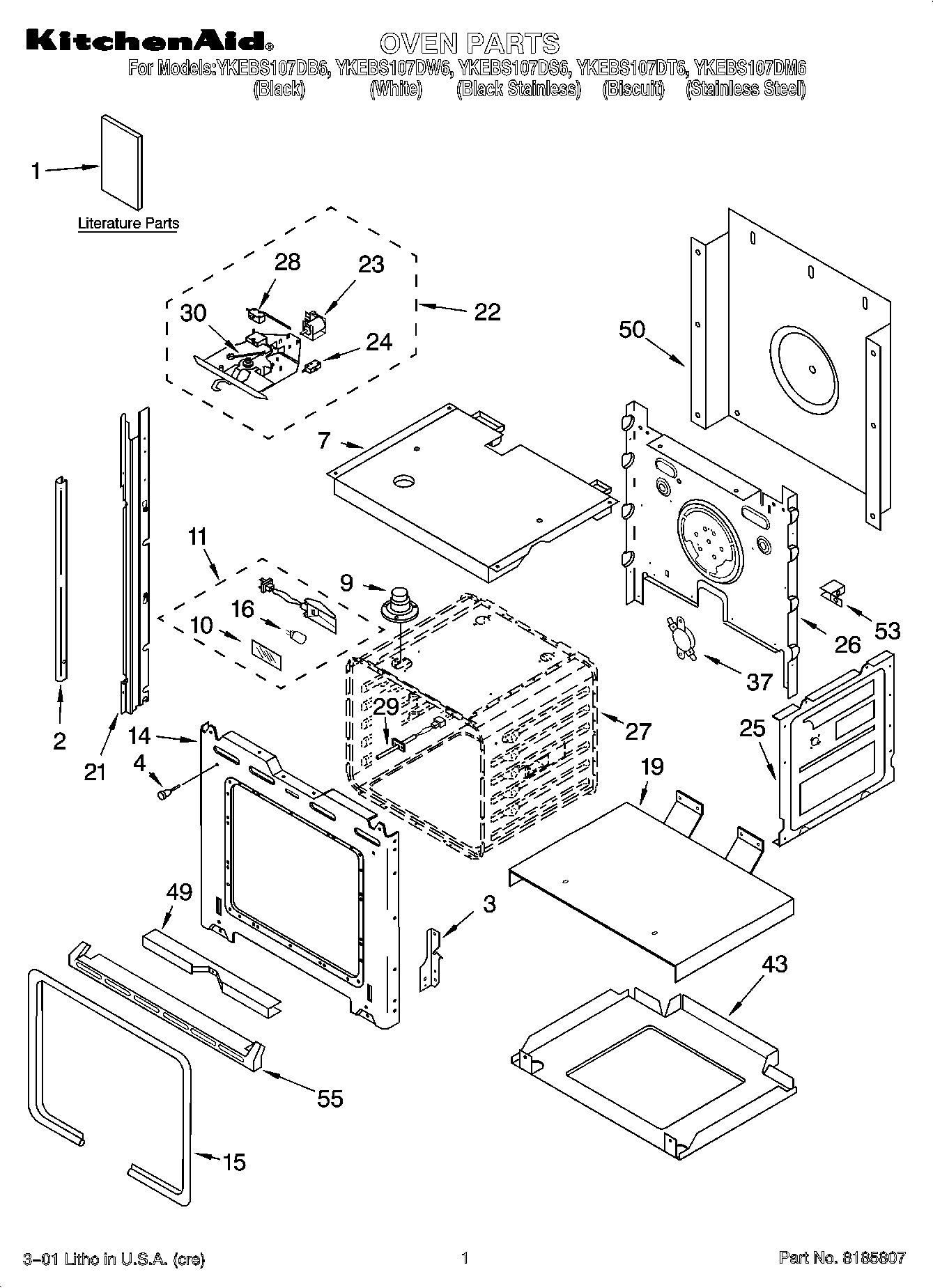

YKEBS107DS6 01 – OVEN PARTS

YKEBS107DS6 01 – OVEN PARTS

Written by

in

YKEBS107DS6 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Easy Set Guide (French))
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Tech Sheet (English))
1Literature Parts (Tech Sheet (French))
2WPW10144983 Whirlpool Trim
2W10144984 Whirlpool Trim
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2Trim, Side (White, Right)
2Trim, Side (LH White Screw)
2Trim, Side (LH Black)
2WP8281236 Whirlpool Screw
2Trim, Side (RH Black)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
14WP4450118 Whirlpool Nut
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
16WP4452164 Whirlpool 12V 5W Halogen Light Bulb
19Support, Insulation
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Latch Assembly
23Solenoid
24Microswitch N.C.
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not s
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WP4449809 Whirlpool Screw
53WPL 4449845
55WPL ARI137204A
55Screw, (2)
554452152 Whirlpool Oven Mounting Bracket
55W11684730 Whirlpool Insulation
55WPL 4452415
55WPL 4448477
55WPL 4455147
55WPL 4448478
55WPL 4450365
55WP3400832 Whirlpool Screw
55Insulation Bottom Vent
