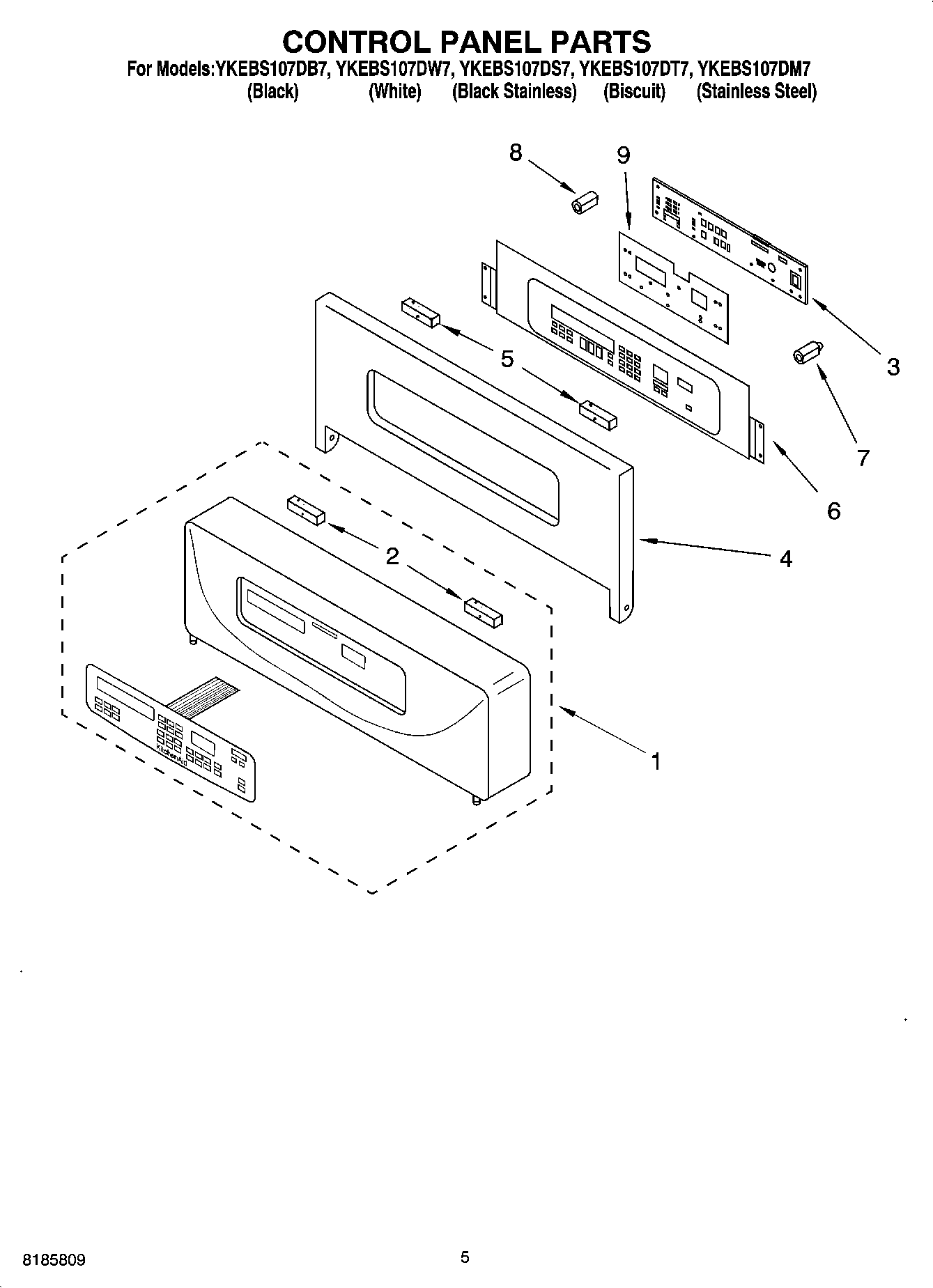

YKEBS107DW7 04 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel Assy W/Membrane Switch (Black)
1	Control Panel Assy. W/Membrane Switch (White Model)
1	Control Panel Assy W/Membrane Switch (Biscuit)
2	Gasket, Control Panel
3	WP3400832 Whirlpool Screw
3	WP4449745 Whirlpool Screw
3	NOTE: The following components are used on the Stainless Steel Model.
3	Microcomputer
4	Panel, Control (Stainless)
5	Spacer, Foam
6	Switch Membrane (Stainless Steel)
7	Insulation, Board
8	Insulation, Board Support
9	Insulator, Dialectric
