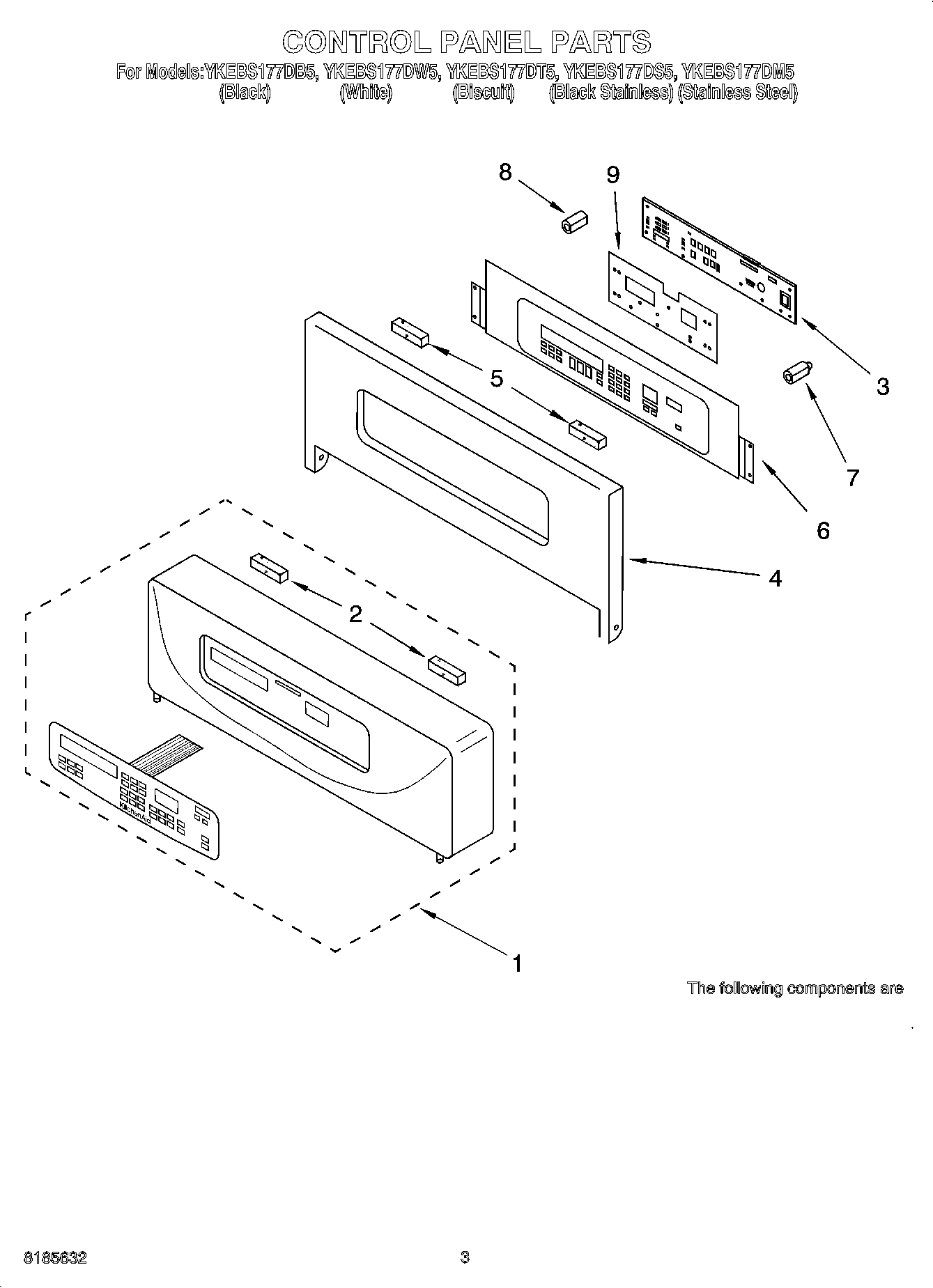

YKEBS177DB5 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel Assy W/Membrane Switch (Black & BS Model)
1Control Panel Assy W/Membrane Switch (White Model)
1WP3400832 Whirlpool Screw
1Control Panel Assy W/Membrane Switch (Biscuit Model)
2Gasket, Control Panel
3NOTE: The following components are used on the Stainless Steel Model.
3Microcomputer
3WP4449745 Whirlpool Screw
4Panel, Control
5Spacer, Foam
6Switch, Membrane (Stainless Steel)
7Insulation, Board
8Insulation, Board Support
9Insulator, Dialectric
