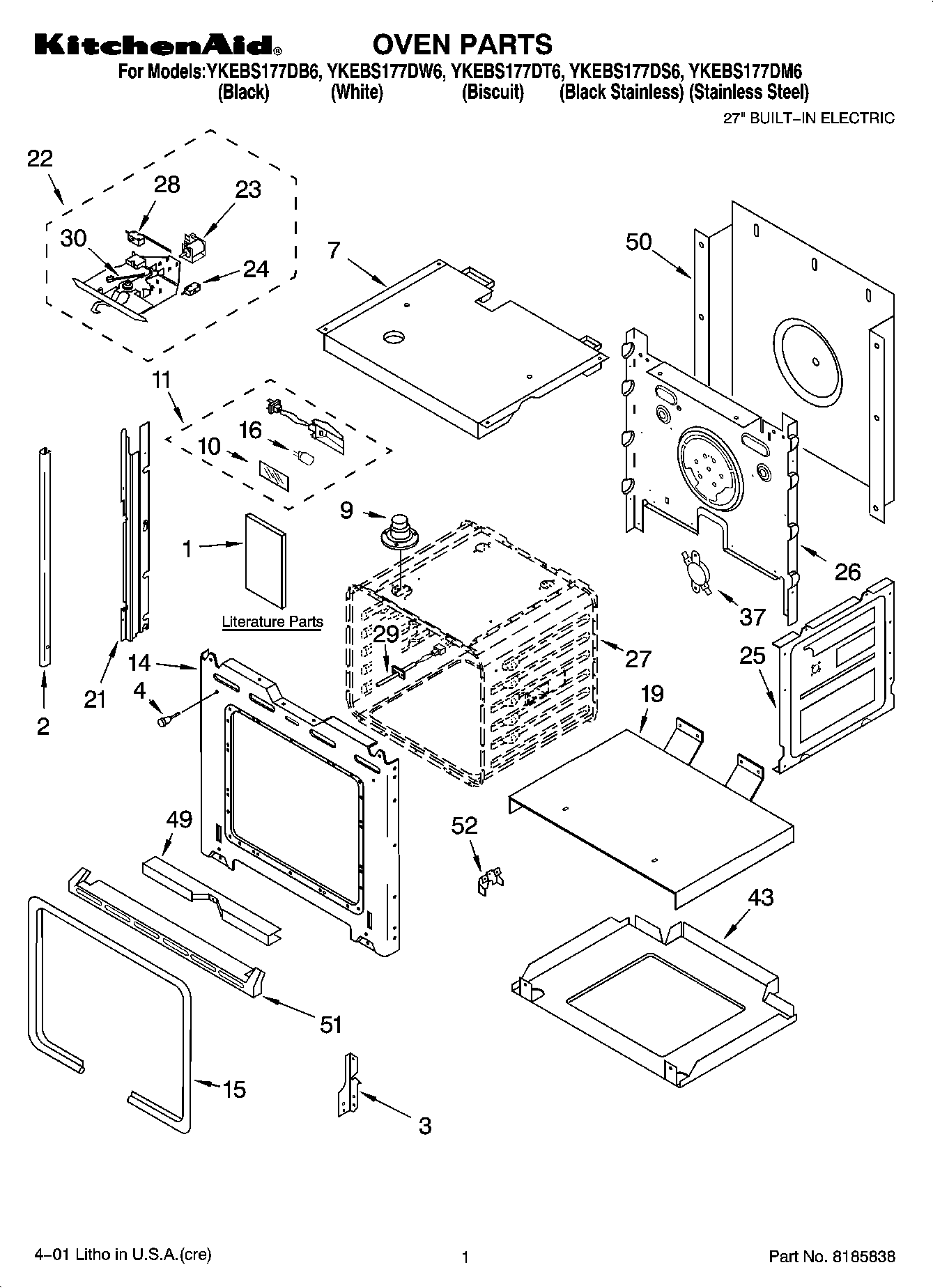

YKEBS177DB6 01 – OVEN PARTS

YKEBS177DB6 01 – OVEN PARTS

Written by

in

YKEBS177DB6 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Easy Set Guide (French))
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet (English))
1Literature Parts (Tech Sheet (French))
2WPW10144983 Whirlpool Trim
2W10144984 Whirlpool Trim
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2Trim, Side (White, Right)
2Trim, Side (LH Black)
2Trim, Side (RH Black)
2WP8281236 Whirlpool Screw
2Trim, Side (LH White Screw)
2Trim, Side (White)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15WP4455381 Whirlpool Door Gasket
16WP4452164 Whirlpool 12V 5W Halogen Light Bulb
19Support, Insulation
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25W10782197 Whirlpool Side Panel
26Back, Chassis
27WPL ARI137252A
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4452480
51WPL 4452414
51Tri
51WP3400832 Whirlpool Screw
51WPL 4448476
524452152 Whirlpool Oven Mounting Bracket
52WPL 4449315
52WPL 4450364
52Insulation, Bottom Vent
52WPL ARI137253A
