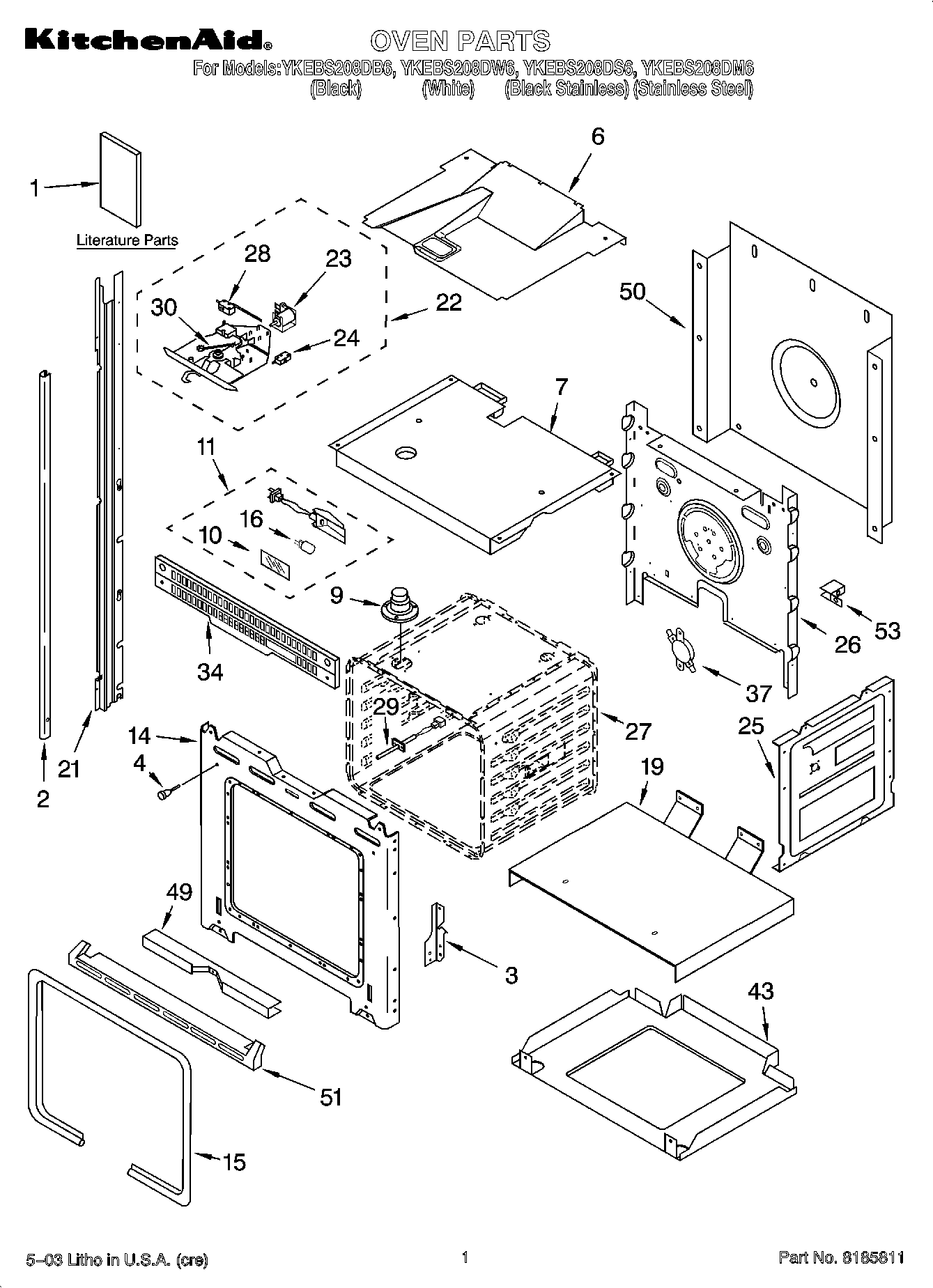

YKEBS208DB6 01 – OVEN PARTS

YKEBS208DB6 01 – OVEN PARTS

Written by

in

YKEBS208DB6 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet (French))
1Literature Parts (Tech Sheet (English))
1Literature Parts (Easy Set Guide (French))
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Easy Set Guide)
1Literature Parts (Cookbook (T/C Oven))
2Trim, Side (Stainless Steel)
2Trim, Side (Stainless Steel)
2Trim, Side (Left Hand)) (White Model)
2Trim, Side (LH Black)
2Trim, Side (Right Hand) (White Model)
2Trim, Side (RH Black)
2Trim, Side (White)
2WP8281236 Whirlpool Screw
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
14Frame, Front
14Screw
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
16WP4452164 Whirlpool 12V 5W Halogen Light Bulb
19Support, Insulation
21WP4448444 Whirlpool Grommet
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
34Vent, Center
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4448477
51WPL 4448478
51WP3400832 Whirlpool Screw
51Tri
53WPL 4450365
53WPL 4449845
53W11684730 Whirlpool Insulation
53WP4449809 Whirlpool Screw
53WPL ARI137321A
