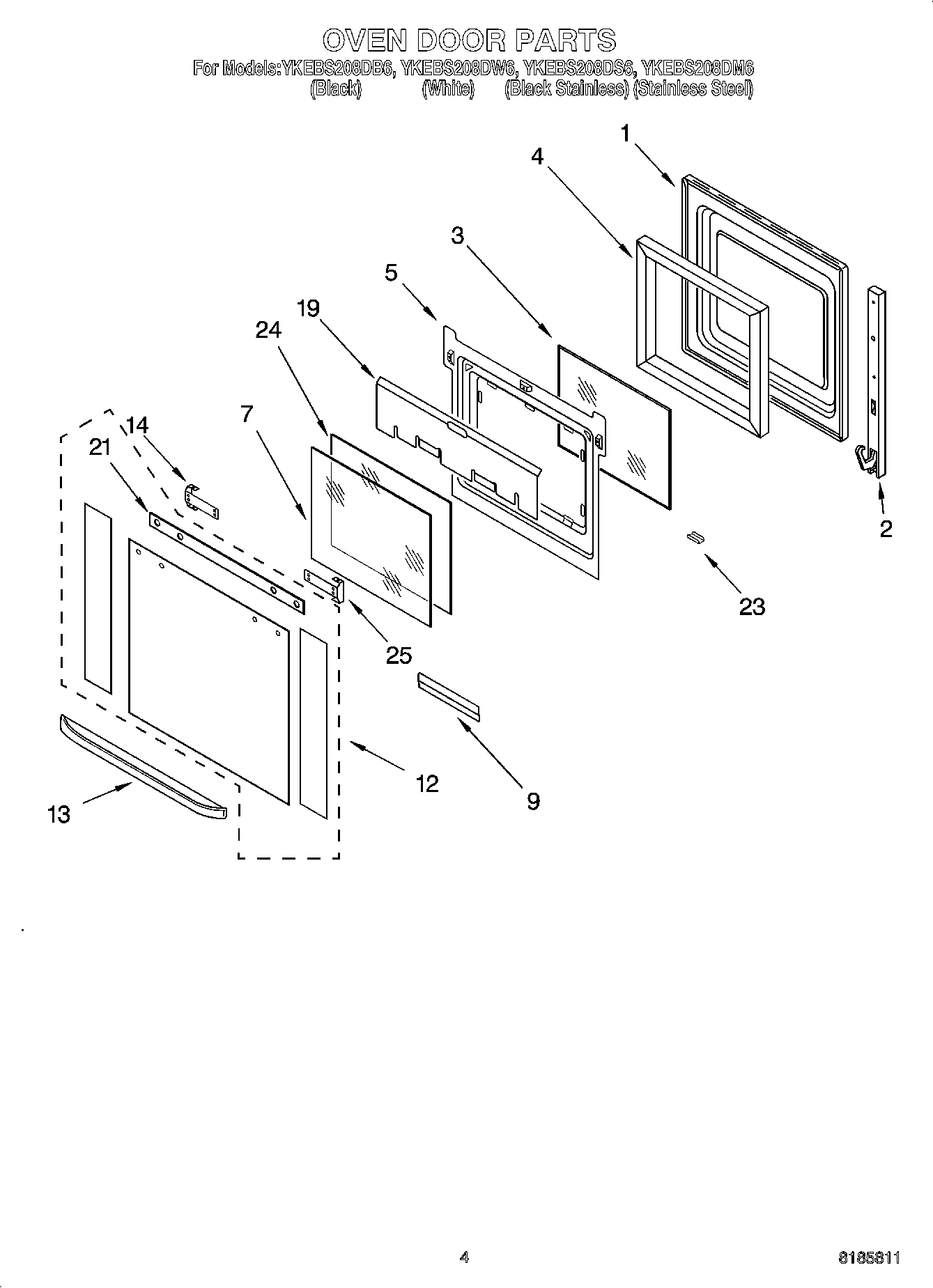

YKEBS208DB6 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455526 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (Black-Stainless)
12	W10401225 Whirlpool Oven Outer Door Glass
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass, Assy (White Model)
13	Handle, Door (White Model)
13	Handle, Door (Stainless)
13	Door Handle (Black Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
19	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	WP3400832 Whirlpool Screw
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	Retainer, Glass-Clip (Stainless Steel)
24	Glass, Inner
25	4455803 Whirlpool Oven Bracket
25	Bracket, Handle (Left Hand)
