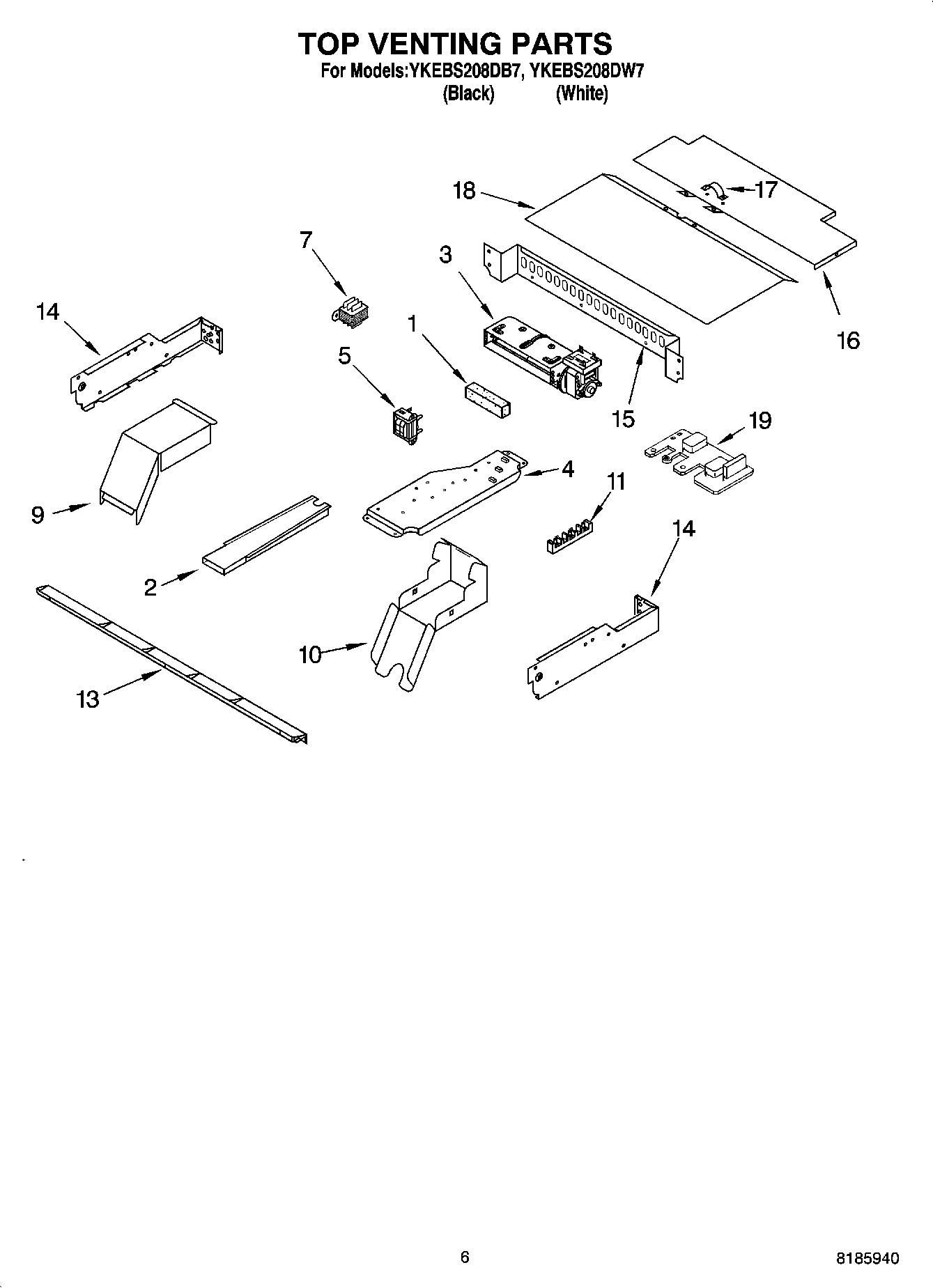

YKEBS208DW7 05 – TOP VENTING PARTS, OPTIONAL PARTS

YKEBS208DW7 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

YKEBS208DW7 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI137354A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL ARI137353A
WPL ARI137352A
WPL 4455728
261900 Whirlpool Microwave Spray
Harness, Wire (Latch)
WPL ARI137355A
4451761 Whirlpool Oven Support Bracket
WPL 591014
Spacer, Harness
Conduit, Double
4450800 Whirlpool Oven Screw
WP4449809 Whirlpool Screw
4448664 Whirlpool Oven Mounting Bracket
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
WP112432 Whirlpool Nut Assembly
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
Wire, 25“ Roll (White 14 GA.)
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3WP4455352 Whirlpool Mounting Bracket
3WP3400015 Whirlpool Screw
3WPW10016550 Whirlpool Blower Cooling Fan
3Blower
4Plate, Mounting
5WP9760588 Whirlpool Transformer
7Transformer, Control
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11Screw
13Vent, Control Panel
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18Spacer, Foam
18WP4452367 Whirlpool Top Cover
19WP4451985 Whirlpool Noise Filter Board
194455191 Whirlpool Oven Mounting Plate
