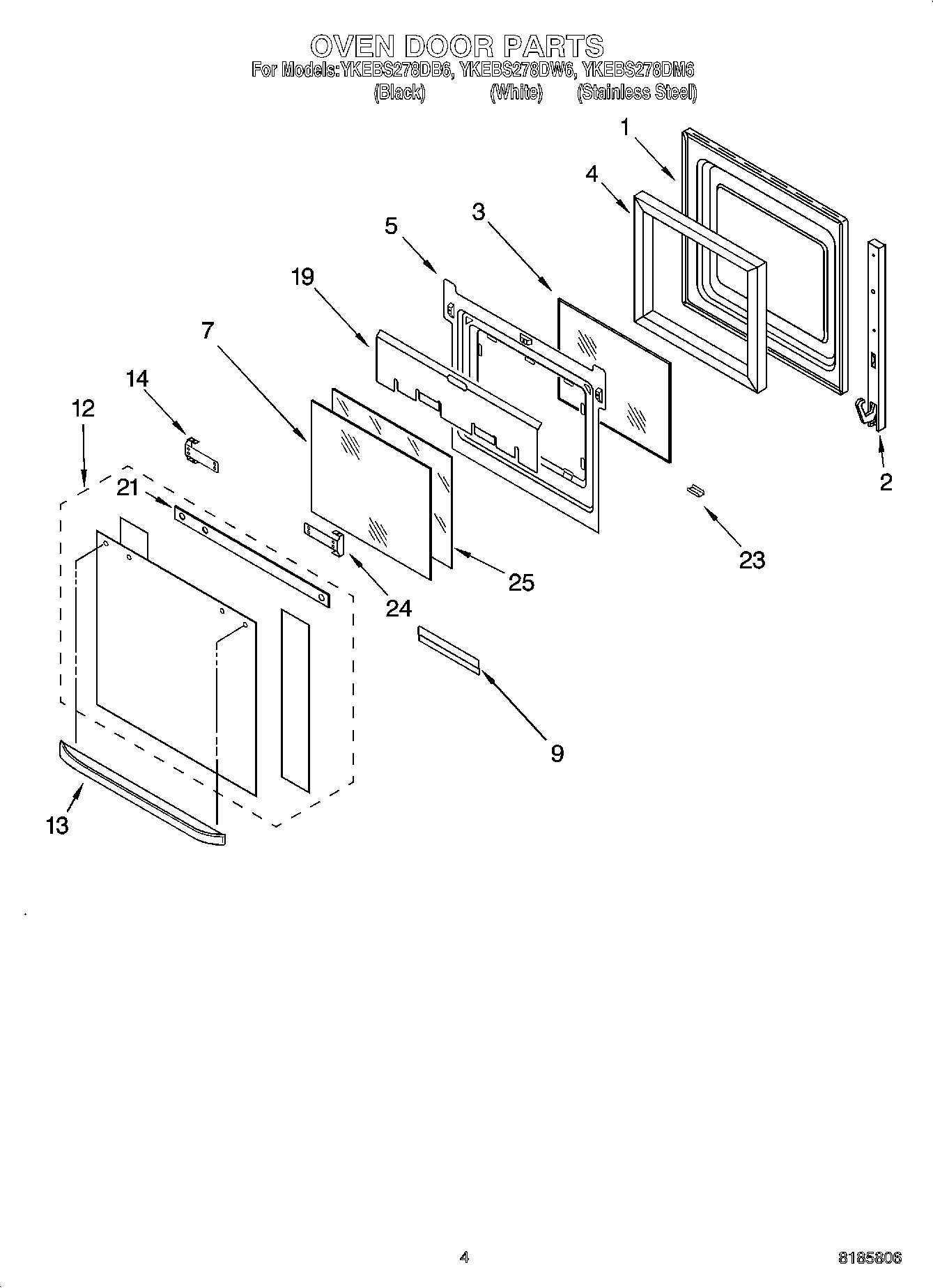

YKEBS278DB6 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP4455524 Whirlpool Door Hinge
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
9	Retainer, Glass
12	Door Glass, Assy (Black Model)
12	WP4452315 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
13	Handle (White Model)
13	Handle (Black Model)
13	Door Handle (Stainless Steel)
14	Bracket, Handle
14	Screw
19	WP4449809 Whirlpool Screw
19	Shield, Heat
21	Seal, Top
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Bracket, Handle Stainless Steel Model (Left Hand)
24	4455803 Whirlpool Oven Bracket
25	Glass, Inner
