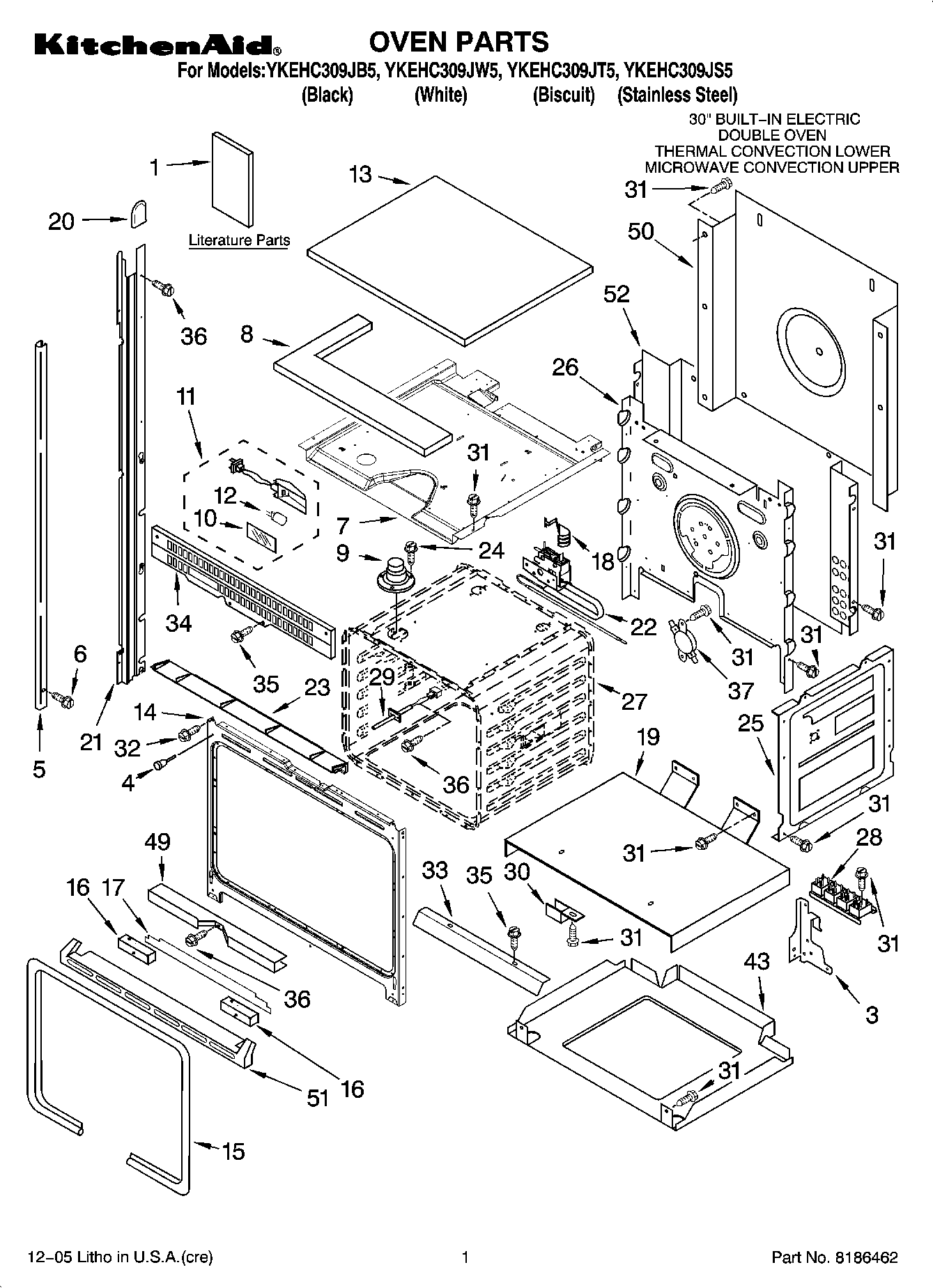

YKEHC309JB5 01 – OVEN PARTS

YKEHC309JB5 01 – OVEN PARTS

Written by

in

YKEHC309JB5 01 – OVEN PARTS

Products

PositionProduct
1Easy Set Guide
1Installation Instructions
1Chart, High Speed Cooking (French)
1Use & Care Guide (Lower) (French)
1Use & Care Guide (Microwave)
1Tech Sheet (Oven) (French)
1Safe Cooking Tips
1Easy Set Guide (French)
1Chart, High Speed Cooking
1Use & Care Guide (Oven)
1Cooking Guide (Lable)
1Use & Care Guide (Upper) (French)
1Tech Sheet (Oven) (English)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Trim, Side Right Hand (Black)
5(Trim, Side Left Hand) (Black)
5Trim, Side Right Hand (White)
5(Trim, Side Left Hand) (White)
5Trim, Side Right Hand (Biscuit)
5(Trim, Side Left Hand) (Biscuit)
5Trim, Side (LH Stainless Steel)
5Trim, Side (RH Stainless Steel)
6WP8281236 Whirlpool Screw
7Top Chassis
8WPL 4452492
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WPL 4452491
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Spacer, Foam
17Insulation Bottom Vent
1898005642 Whirlpool Clip
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
22Safety Switch (Oven Temp)
23Vent-Cntrl Panel
24SCREW
25W10782197 Whirlpool Side Panel
26Back, Chassis
27WPL ARI137384A
28WP9752759 Whirlpool Relay
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
31WP4449809 Whirlpool Screw
32Screw
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
35WP4450038 Whirlpool Screw
36WP4449154 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
514452152 Whirlpool Oven Mounting Bracket
51WPL 4455443
51WPL 4455147
51WPL 4455445
51WPL 4455447
52WPL 4450365
52W11684730 Whirlpool Insulation
52WPL 4451756
52WPL ARI137385A
