YKEHC309JS5 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 8300490
WPL 4454845
8301909 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Orange)
WPL ARI137404A
242831 Whirlpool Oven Wire
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
261900 Whirlpool Microwave Spray
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 591014
WPL ARI137401A
Spacer, Harness
WPL ARI137402A
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
WPL ARI137403A
16515 Whirlpool Clip
4452400 Whirlpool Microwave Wire Harness
Ground (M/W)
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
4450950 Whirlpool Oven Conduit

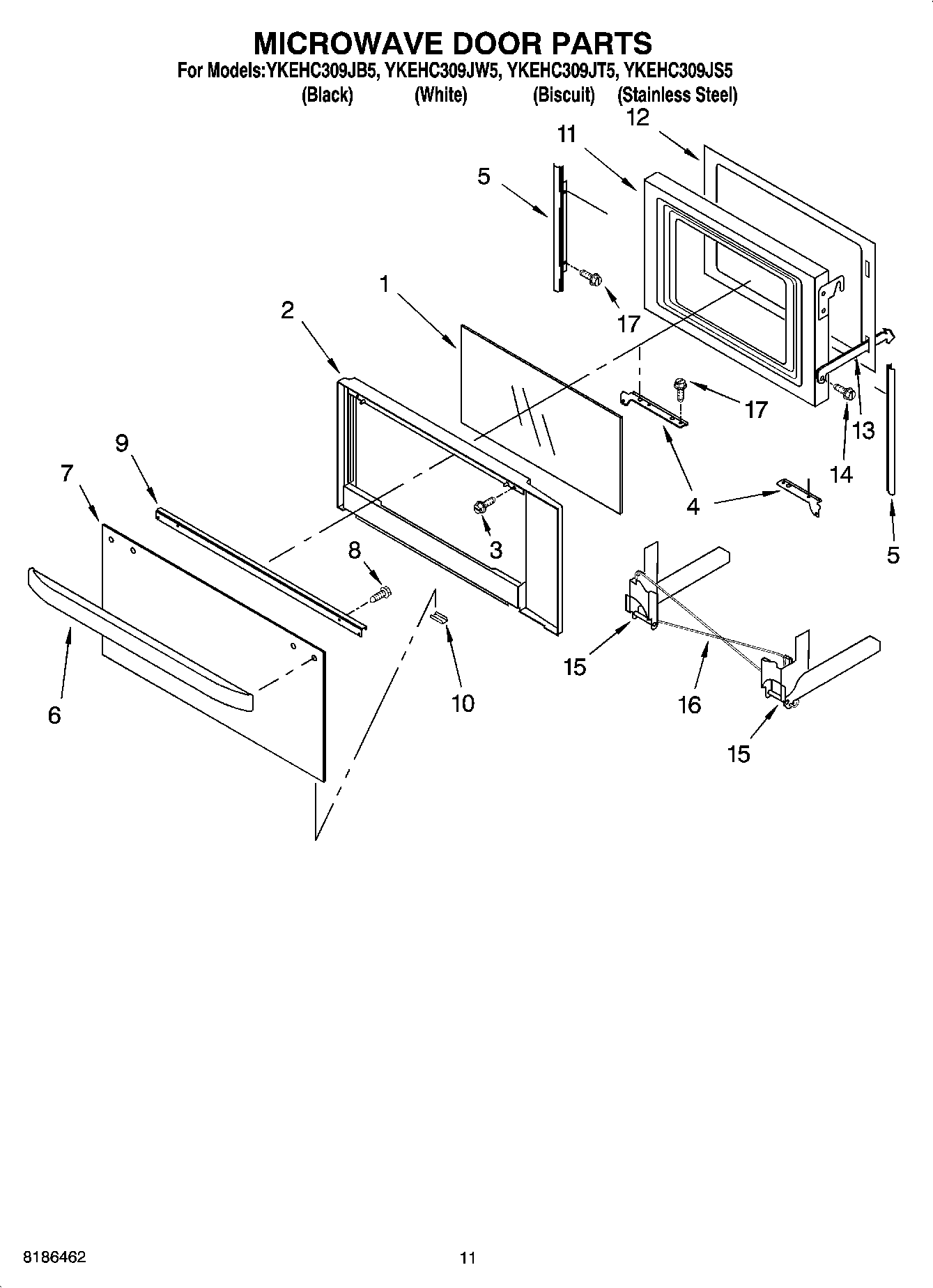

1Glass, Middle
2WP8303556 Whirlpool Microwave Door Frame
3WP4450038 Whirlpool Screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side (Left Side)
5Filler, Side
6Handle, Door (White)
6Handle, Door (Black)
6Handle, Door (Stainless)
6Handle, Door (Biscuit)
7Glass, Outer (Black)
7WP4452259 Whirlpool Door Glass
7Glass, Outer (White)
7Glass, Outer (Biscuit)
8WPW10132940 Whirlpool Dishwasher Screw
9Bracket, Handle
10Clip, Retainer (Black Model)
10Clip, Retainer (White Model)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375324 Whirlpool Microwave Door Hinge
15WP4375323 Whirlpool Microwave Door Hinge
16WP4452395 Whirlpool Spring Assembly
16WP4451009 Whirlpool Microwave Spring
