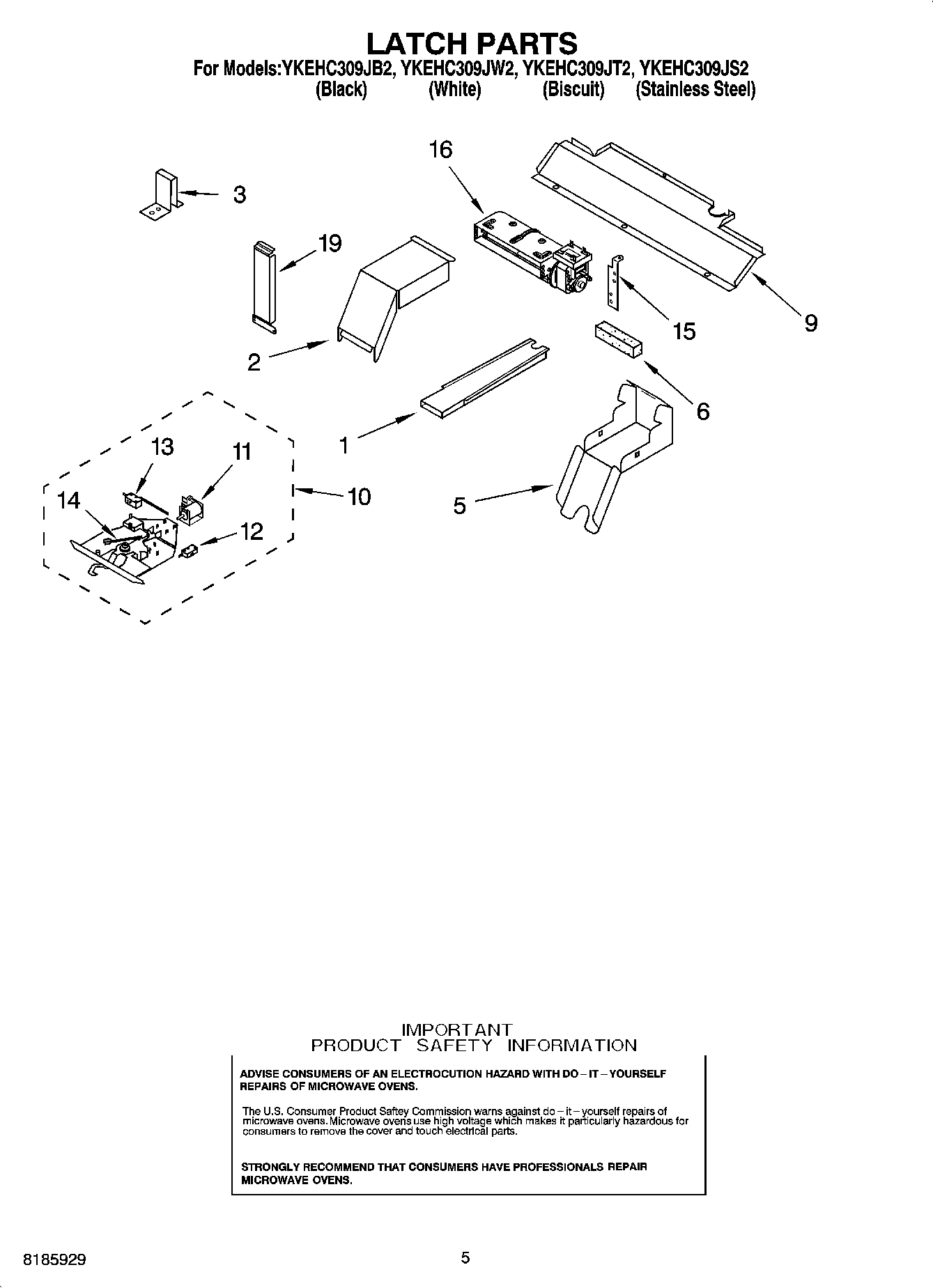

YKEHC309JT2 04 – LATCH PARTS

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3Bracket, Combo Chassis
54455177 Whirlpool Oven Bottom Elbow
6W10491987 Whirlpool Foam Seal
9Baffle, Rear
10Latch Assy.
11Solenoid
12Microswitch N.C.
13Microswitch
14Spring, Latch
14WP4449154 Whirlpool Screw
154455191 Whirlpool Oven Mounting Plate
16WPW10016550 Whirlpool Blower Cooling Fan
16WP4449809 Whirlpool Screw
19Extension Filler
