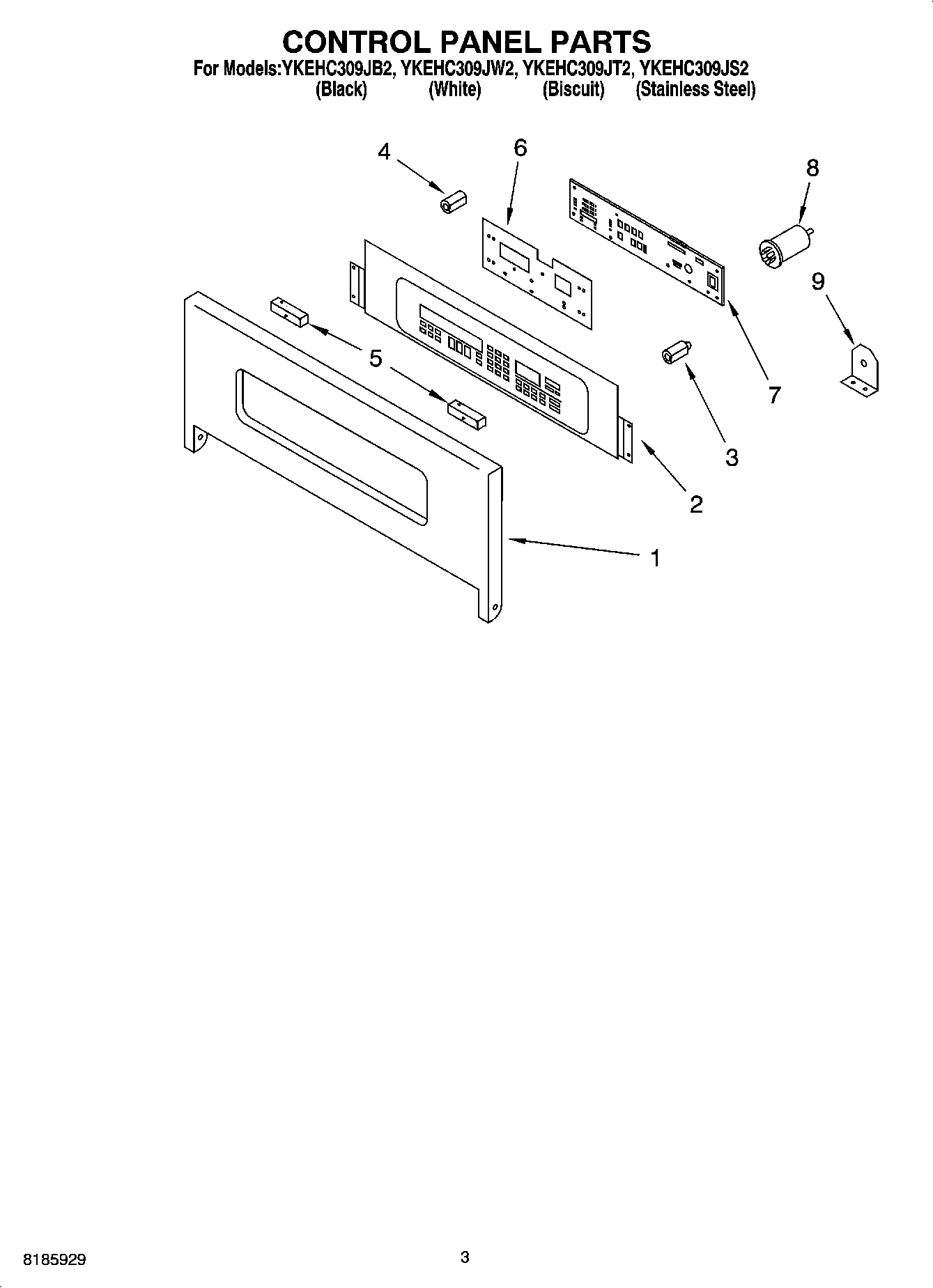

YKEHC309JW2 02 – CONTROL PANEL PARTS

YKEHC309JW2 02 – CONTROL PANEL PARTS

Written by

in

YKEHC309JW2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Biscuit)
1Panel, Control (White)
1Panel, Control (Black)
1Panel, Control (Stainless)
2Switch, Membrane (Biscuit)
2Switch, Membrane (Stainless Steel)
2Switch, Membrane (White)
2Switch, Membrane (Black)
3Insulation, Board
4WP3400832 Whirlpool Screw
4Insulation, Board Support
5Spacer, Foam
6Insulator, Dialectric
7Screw
7Microcomputer
8Filter
9Bracket, Filter
