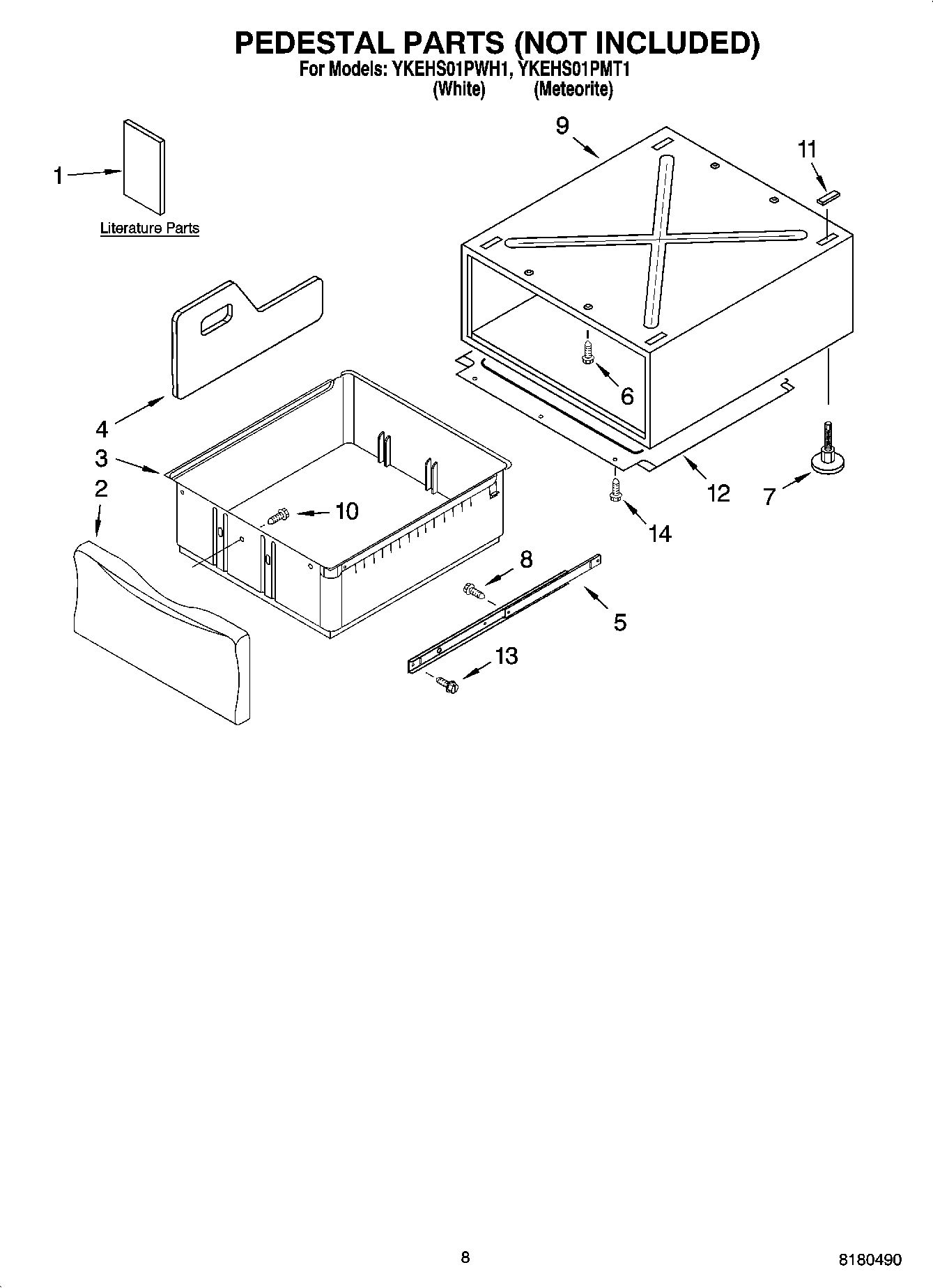

YKEHS01PWH1 05 – PEDESTAL PARTS (NOT INCLUDED), OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS, KIT, HOLD DOWN
	W11224254 Whirlpool Test Kit
	8541503 Whirlpool Stacking Kit
	W10202939 Whirlpool Touch Up
	ACCESSORY PARTS
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	4392067 Whirlpool Dryer Repair Kit
1	Literature Parts (Parts List)
1	Literature Parts (Installation Instructions)
2	Drawer Front Assembly (Meteorite)
2	Drawer Front Assembly (Pewter)
2	Drawer Front Assembly (Graphite)
2	Drawer Front Assembly (Biscuit)
2	Drawer Front Assembly (White)
3	Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
3	For LAB2700PMT
4	For LAB2700PMT
4	Divider, Drawer (Set Of 2) (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WP1163283 Whirlpool Air Conditioner Screw
11	Pad (4)
12	Pan, Bottom
13	WP9740848 Whirlpool Dishwasher Screw
14	WP90767 Whirlpool Screw
