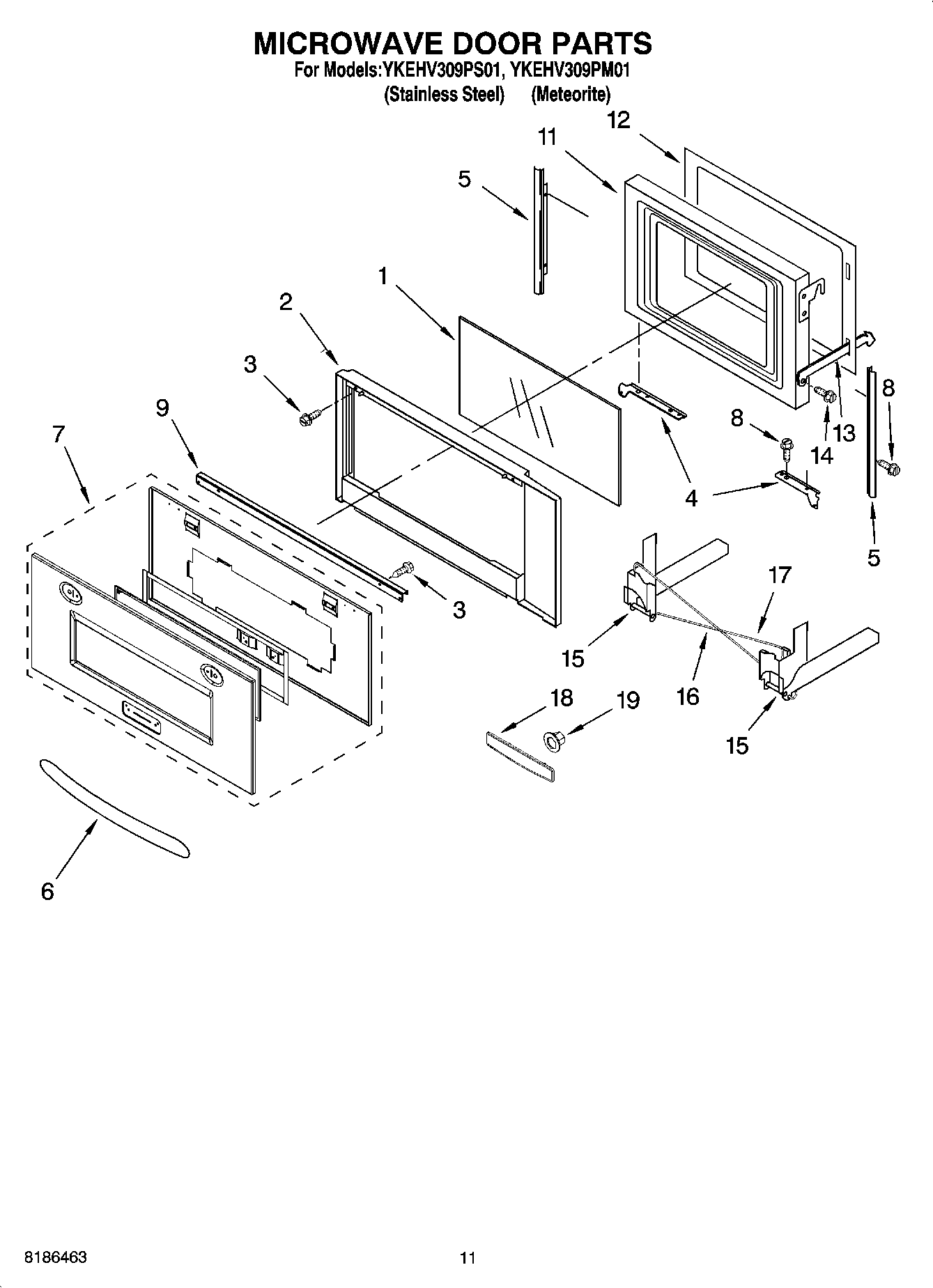

YKEHV309PM01 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

YKEHV309PM01 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

YKEHV309PM01 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI137439A
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
1
4450950 Whirlpool Oven Conduit
WPL ARI137438A
WPL ARI137437A
WPL ARI137436A
WPL 8300490
WPL 4454845
8301909 Whirlpool Oven Wire Harness
Cleaner, Stainless Steel
WPL ARI137440A
261900 Whirlpool Microwave Spray
WPL 591014
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Cleaner (Stainless Steel)
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
WP4448950 Whirlpool Screw
Ground (M/W)
Wire, 25` Roll (Black 14 Ga.)
16515 Whirlpool Clip
Spacer, Harness
4452400 Whirlpool Microwave Wire Harness
1Glass, Middle
2WP4450038 Whirlpool Screw
2WP8303556 Whirlpool Microwave Door Frame
3screw
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side (Left Side)
5Filler, Side
6Handle, Door (Stainless Steel)
7Glass, Outer (Meteorite)
7Glass, Outer (Stainless Steel)
9Bracket, Handle
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375323 Whirlpool Microwave Door Hinge
15WP4375324 Whirlpool Microwave Door Hinge
16WP4451009 Whirlpool Microwave Spring
16WP4452396 Whirlpool Microwave Spring
17WP4452395 Whirlpool Spring Assembly
18Nameplate
19Palnut
