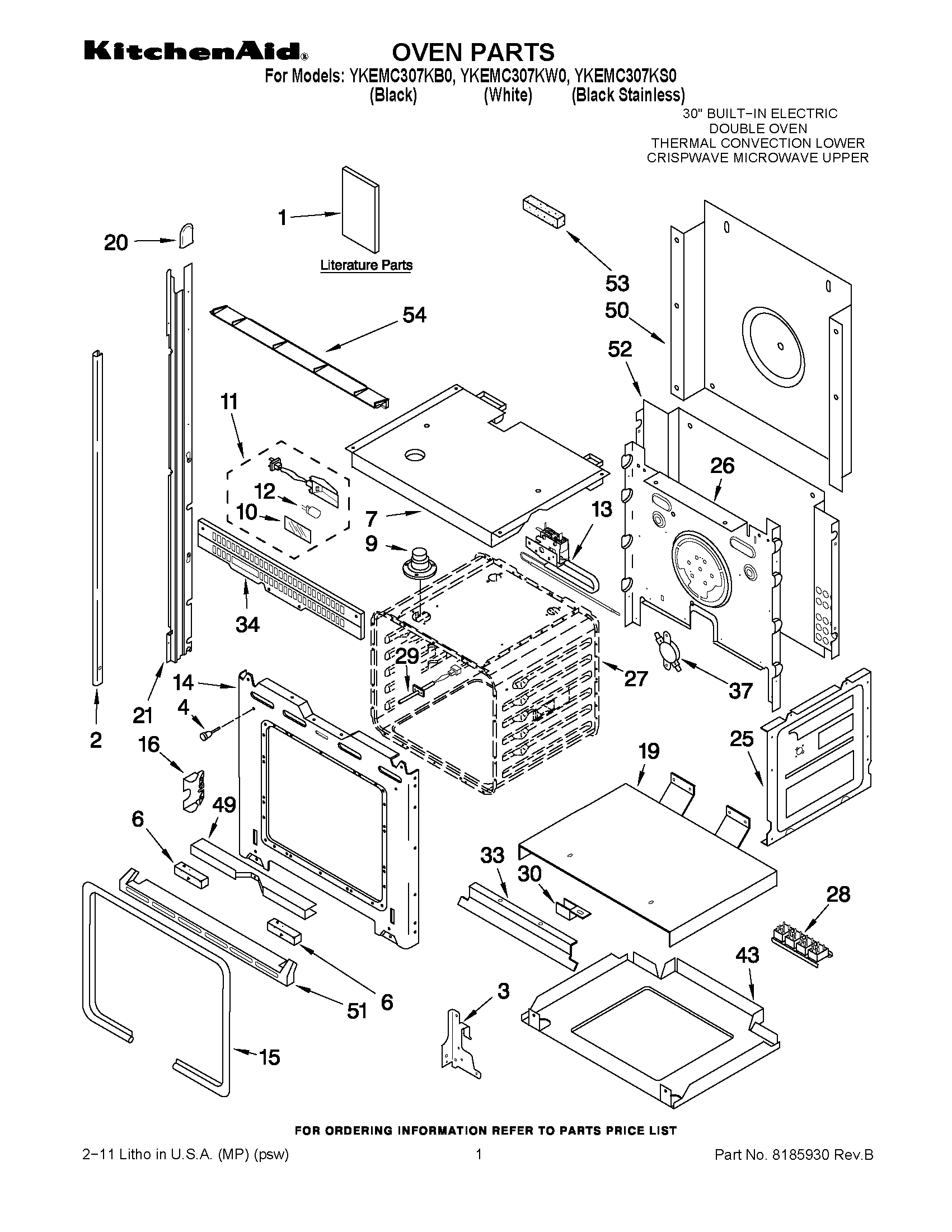

YKEMC307KB0 01 – OVEN PARTS

YKEMC307KB0 01 – OVEN PARTS

Written by

in

YKEMC307KB0 01 – OVEN PARTS

Products

PositionProduct
NIW11684730 Whirlpool Insulation
NIWPL 4450365
1USE & CARE GUIDE (MICROWAVE)
1Guide-Easy Use M/W
1Safe Cooking Tips
1Cook Guide Label
1INSTALLATION INSTRUCTIONS
1Easy Set Guide
1TECH SHEET (OVEN)
1USE & CARE GUIDE (OVEN)
2WP8281236 Whirlpool Screw
2Trim, Side Right Hand (White)
2(Trim, Side Left Hand) (Black)
2Trim, Side Right Hand (Black)
2(Trim, Side Left Hand) (White)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
3WP4449743 Whirlpool Screw
44448520 Whirlpool Oven Bumper
6Spacer, Foam
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Safety Switch (Oven Temp)
14Frame, Front
14Screw
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814376 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27CABINET (NOT A SERVICEABLE PART)
28Bracket
28WP9752759 Whirlpool Relay
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34WP4450038 Whirlpool Screw
34WPL 4451667
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455445
51WPL 4455443
51WP3400832 Whirlpool Screw
52WPL 4451756
53Spacer, Foam
54Vent-Cntrl Panel
