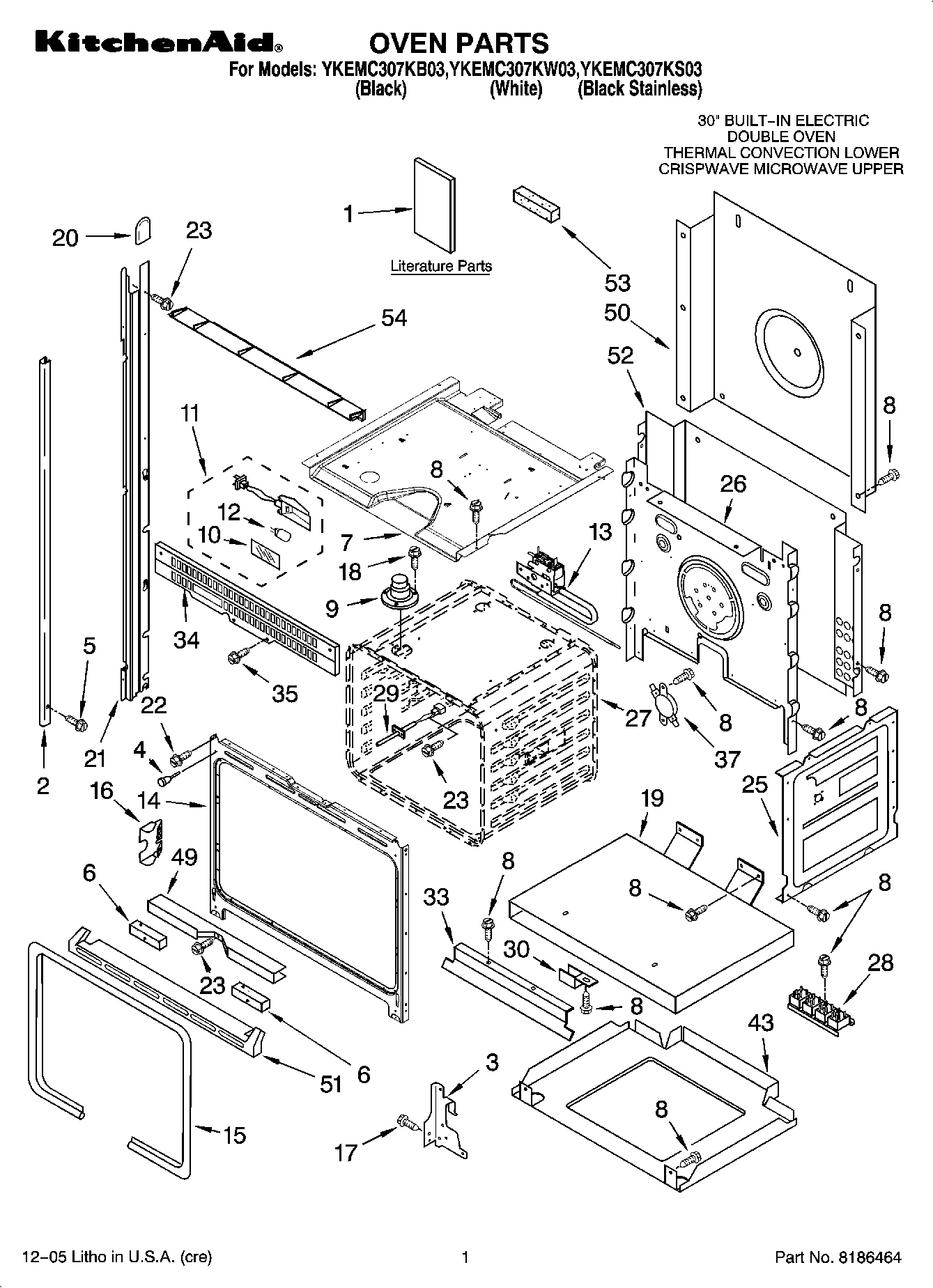

YKEMC307KW03 01 – OVEN PARTS

YKEMC307KW03 01 – OVEN PARTS

Written by

in

YKEMC307KW03 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Use & Care Guide (Oven) (French)
1Tech Sheet (Oven) (French)
1Tech Sheet (Oven) (English)
1Easy Set Guide
1Installation Instructions
1Easy Set Guide (French)
1Use & Care Guide (Oven)
1Use & Care Guide
1Safe Cooking Tips
1Guide-Easy Use M/W
1Cook Guide Label
1Use & Care Guide (Microwave) (French)
2Trim, Side Right Hand (Black)
2(Trim, Side Left Hand) (Black)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5WP8281236 Whirlpool Screw
6Spacer, Foam
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Safety Switch (Oven Temp)
14Frame, Front
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
17WP4449743 Whirlpool Screw
18SCREW
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Screw
23WP4449154 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP9752759 Whirlpool Relay
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
35WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4455443
51WPL 4455445
52WPL 4451756
53Spacer, Foam
54WPL 4450365
54Vent-Cntrl Panel
54W11684730 Whirlpool Insulation
54WPL ARI137485A
