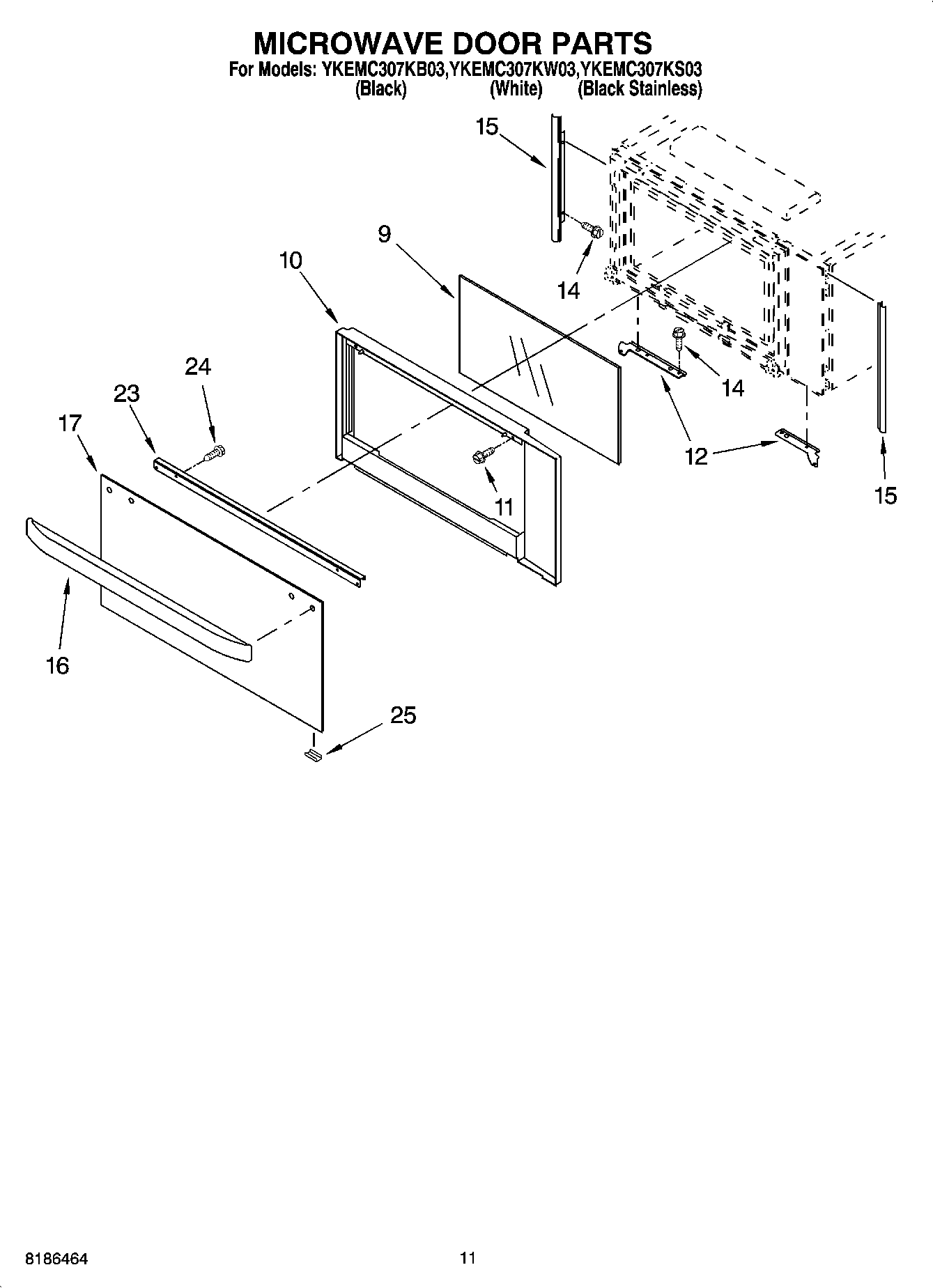

YKEMC307KW03 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI137489A
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Filler Kit (Al)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	WPL 591014
	4450950 Whirlpool Oven Conduit
	WPL ARI137488A
	WPL ARI137487A
	WPL ARI137486A
	Harness, Main
	WPL 4454845
	Filler Kit (Wh)
	Filler Kit (Bl)
	8301909 Whirlpool Oven Wire Harness
	WPL ARI137490A
	261900 Whirlpool Microwave Spray
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Yellow)
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	285006 Whirlpool Spray
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	Wire, 25` Roll (Black 14 Ga.)
	WPW10339879 Whirlpool Wire Tie
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	Spacer, Harness
	16515 Whirlpool Clip
	4450800 Whirlpool Oven Screw
	4452400 Whirlpool Microwave Wire Harness
	Ground (M/W)
	WP4448950 Whirlpool Screw
	814381 Whirlpool Pin
	8528351 Whirlpool Clip
9	Glass, Middle
10	WP8303556 Whirlpool Microwave Door Frame
11	WP4450038 Whirlpool Screw
12	Bracket, Mounting (Right Side)
12	Bracket, Mounting (Left Side)
15	Filler, Side (Left Side)
15	Filler, Side
16	Handle, Door (White)
16	Handle, Door (Black)
17	Glass, Outer (Black)
17	Glass, Outer (White)
23	Bracket, Handle
24	WPW10132940 Whirlpool Dishwasher Screw
25	Clip, Retainer (White Model)
25	Clip, Retainer (Black Model)
