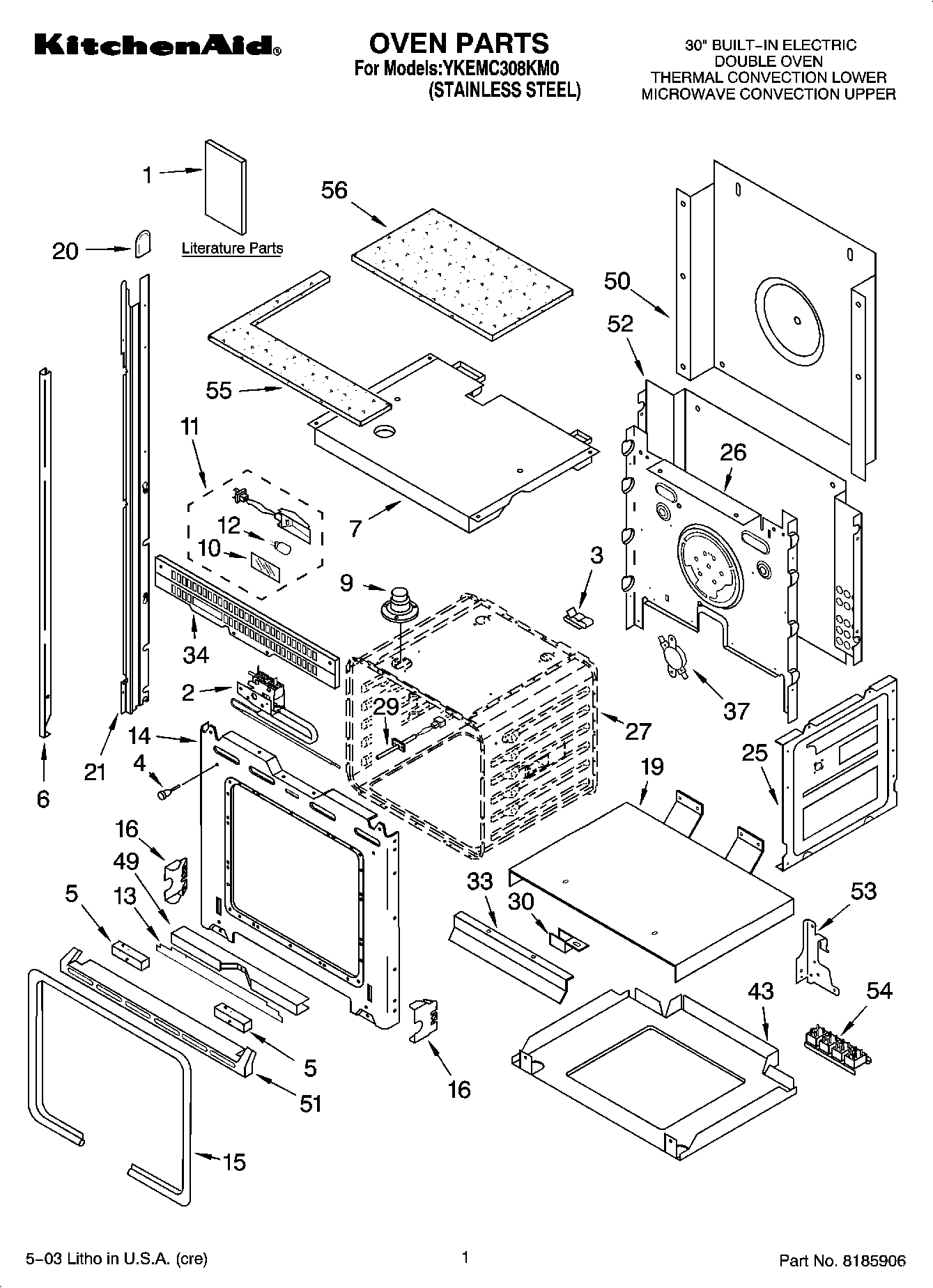

YKEMC308KM0 01 – OVEN PARTS

YKEMC308KM0 01 – OVEN PARTS

Written by

in

YKEMC308KM0 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Guide, Easy Use (Microwave))
1Literature Parts (Easy Set Guide)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Use & Care Guide)
1Literature Parts (Easy Set Guide (French))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Tech Sheet (French))
1Literature Parts (Tech Sheet (English))
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide Microwave (French))
1Literature Parts (Use & Care Guide (Microwave))
2Safety Switch (Oven Temp)
398005642 Whirlpool Clip
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6WP694091 Whirlpool Screw
6Trim, Side (LH Stainless Steel)
6Trim, Side (RH Stainless Steel)
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation Bottom Vent
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34WPL 4451667
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Screw)
51WPL 4455147
52WPL 4451756
53WP4455606 Whirlpool Right Hand Hinge
53WP4455605 Whirlpool Left Hand Hinge
54Bracket
54WP9752759 Whirlpool Relay
55WPL 4452492
56WPL 4450365
56WPL 4452491
56W11684730 Whirlpool Insulation
56WPL ARI137492A
