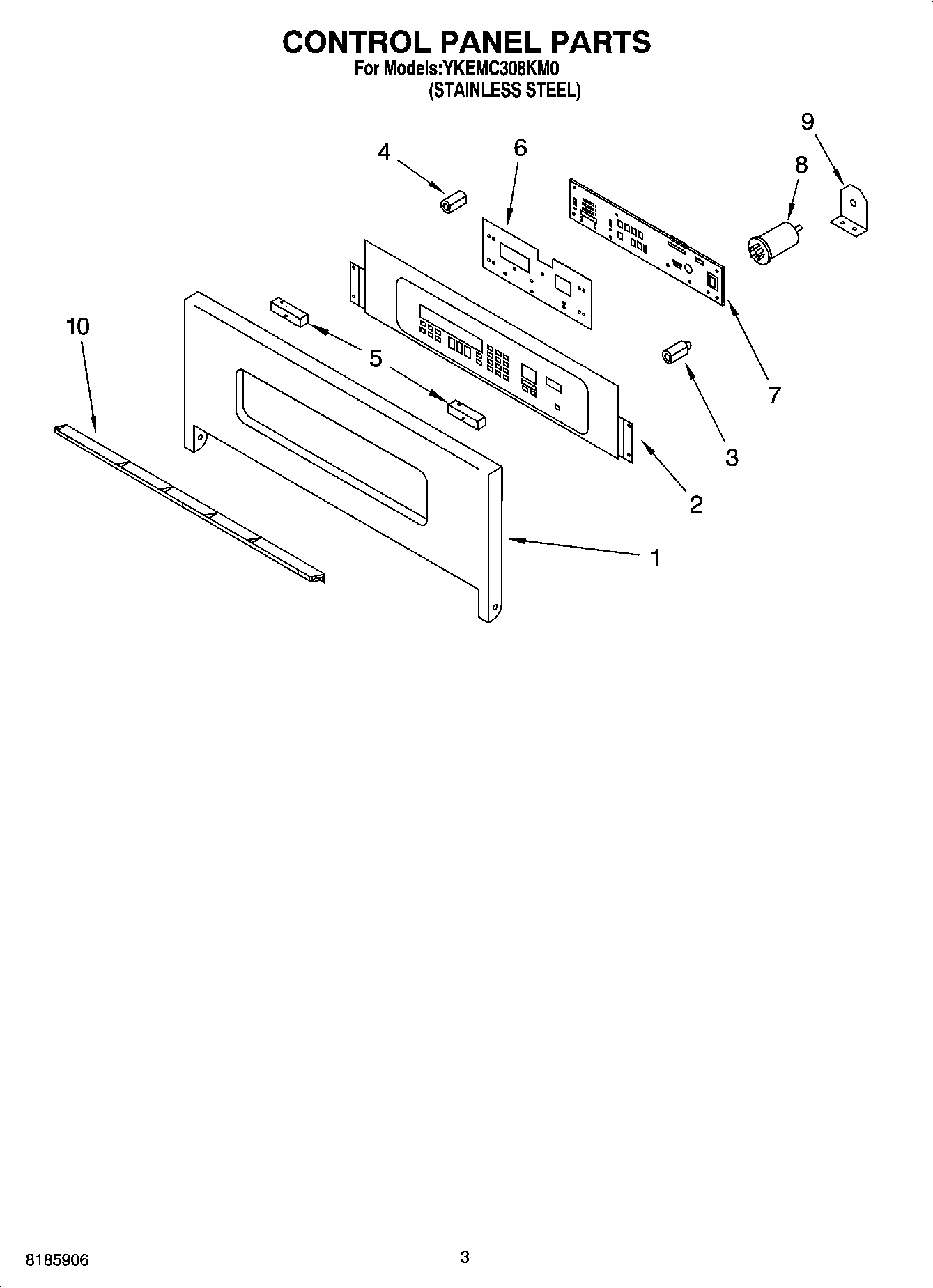

YKEMC308KM0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (Stainless)
2	Control Panel Assy W/Membrane Switch (Switch, Membrane (S.S. model only))
3	Insulation, Board
4	Insulation, Board Support
5	Spacer, Foam
6	Insulator, Dialectric
7	Screw
7	WP3400832 Whirlpool Screw
7	Microcomputer
8	Filter
9	Bracket, Filter
10	Vent, Control Panel
