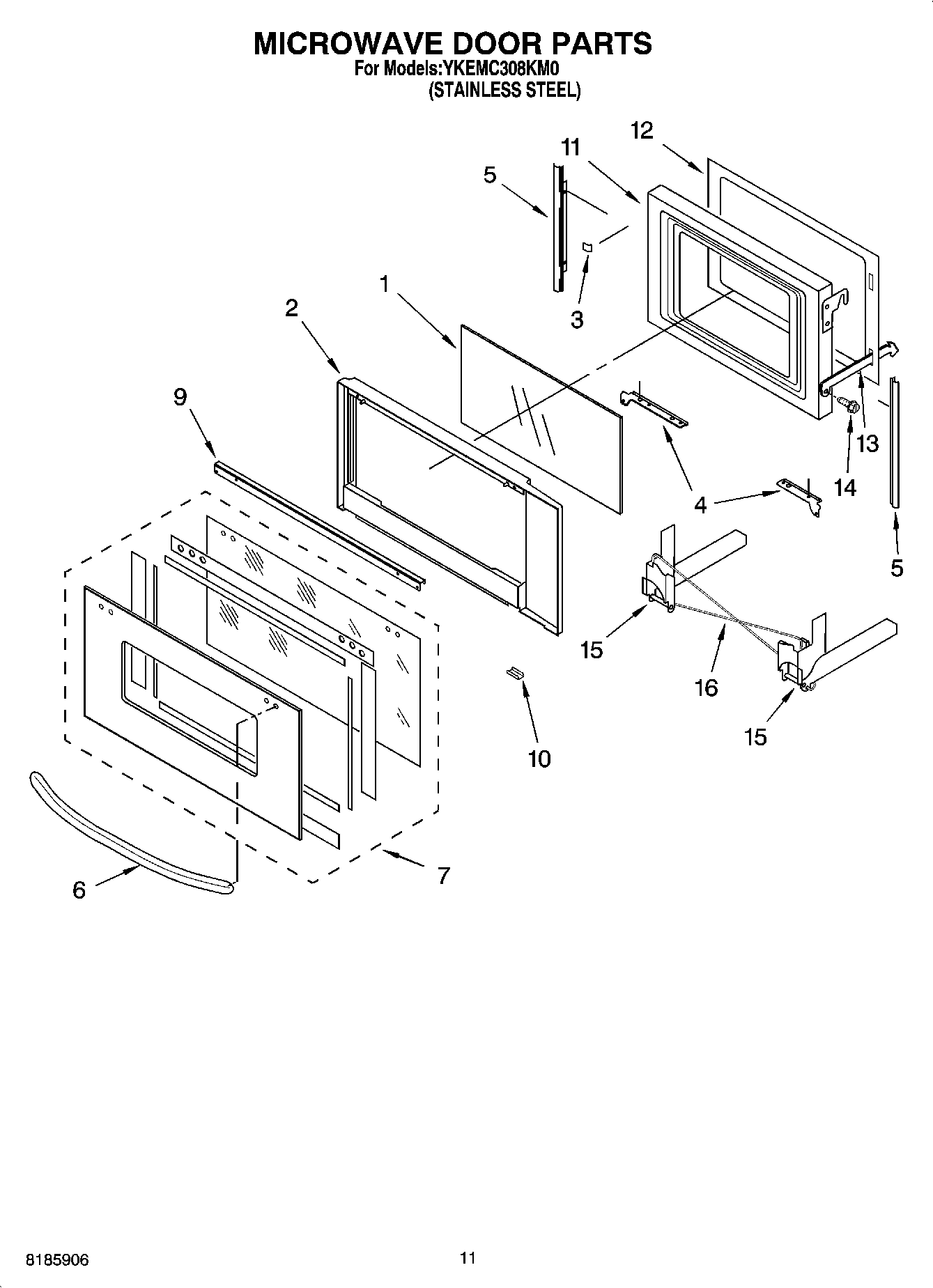

YKEMC308KM0 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI137498A
	1
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	WPL 591014
	4450950 Whirlpool Oven Conduit
	261900 Whirlpool Microwave Spray
	WPL ARI137497A
	WPL ARI137496A
	WPL ARI137495A
	WPL 8300490
	WPL 4454845
	Filler Kit (Al)
	Filler Kit (Wh)
	Filler Kit (Bl)
	WPL ARI137499A
	242831 Whirlpool Oven Wire
	18 Ga. 80~c Rating (Red)
	Wire, 25“ Roll (White 14 GA.)
	814381 Whirlpool Pin
	WP4448950 Whirlpool Screw
	Ground (M/W)
	WPL 4452239
	WP482338 Whirlpool Refrigerator Adhesive
	Wire, 25` Roll (Red 14 Ga.)
	16515 Whirlpool Clip
	4450800 Whirlpool Oven Screw
	72032 Whirlpool Touch Up Paint Black
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	285006 Whirlpool Spray
	Spacer, Harness
	WPW10339879 Whirlpool Wire Tie
1	Glass, Middle
2	WP8303556 Whirlpool Microwave Door Frame
2	WP4450038 Whirlpool Screw
3	Tape, Foam
4	Bracket, Mounting (Right Side)
4	Bracket, Mounting (Left Side)
5	Filler, Side (Left Side)
5	Filler, Side
6	Door Handle (Stainless Steel)
7	WP4452259 Whirlpool Door Glass
9	WPW10132940 Whirlpool Dishwasher Screw
9	Bracket, Handle
10	Retainer, Glass-Clip (Stainless Steel)
11	Plate, Door
12	Frame, Inner
13	Strap, Door
14	Screw
15	WP4375324 Whirlpool Microwave Door Hinge
15	WP4375323 Whirlpool Microwave Door Hinge
16	WP4452396 Whirlpool Microwave Spring
