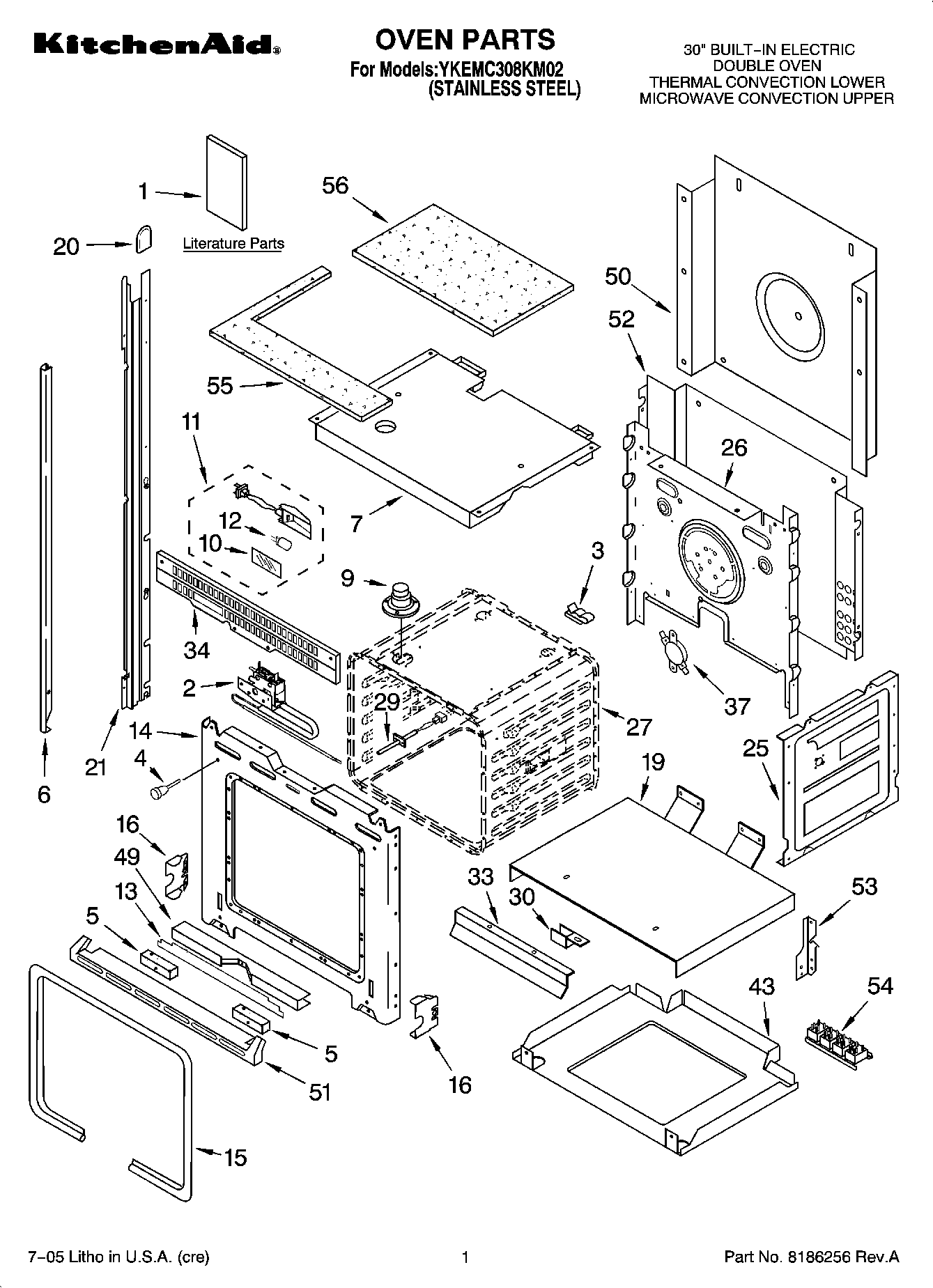

YKEMC308KM02 01 – OVEN PARTS

YKEMC308KM02 01 – OVEN PARTS

Written by

in

YKEMC308KM02 01 – OVEN PARTS

Products

PositionProduct
1Cookbook
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Easy Set Guide
1Use & Care Guide
1Easy Set Guide (French)
1Use & Care Guide (Oven)
1Installation Instructions
1Tech Sheet (Oven) (English)
1USE & CARE GUIDE (MICROWAVE)
1Use & Care Guide (French)
1Tech Sheet (Oven) (French)
2Safety Switch (Oven Temp)
398005642 Whirlpool Clip
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Trim, Side (LH Stainless Steel)
6WP694091 Whirlpool Screw
6Trim, Side (RH Stainless Steel)
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation Bottom Vent
14Frame, Front
14Screw
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
339760677 Whirlpool Oven Vent Deflector
34WP4450038 Whirlpool Screw
34Vent, Center
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4455147
52WPL 4451756
53WP4455606 Whirlpool Right Hand Hinge
53WP4455605 Whirlpool Left Hand Hinge
54WP9752759 Whirlpool Relay
54Bracket
55WPL 4452492
56WPL 4450365
56WPL 4452491
56WPL ARI137510A
56W11684730 Whirlpool Insulation
