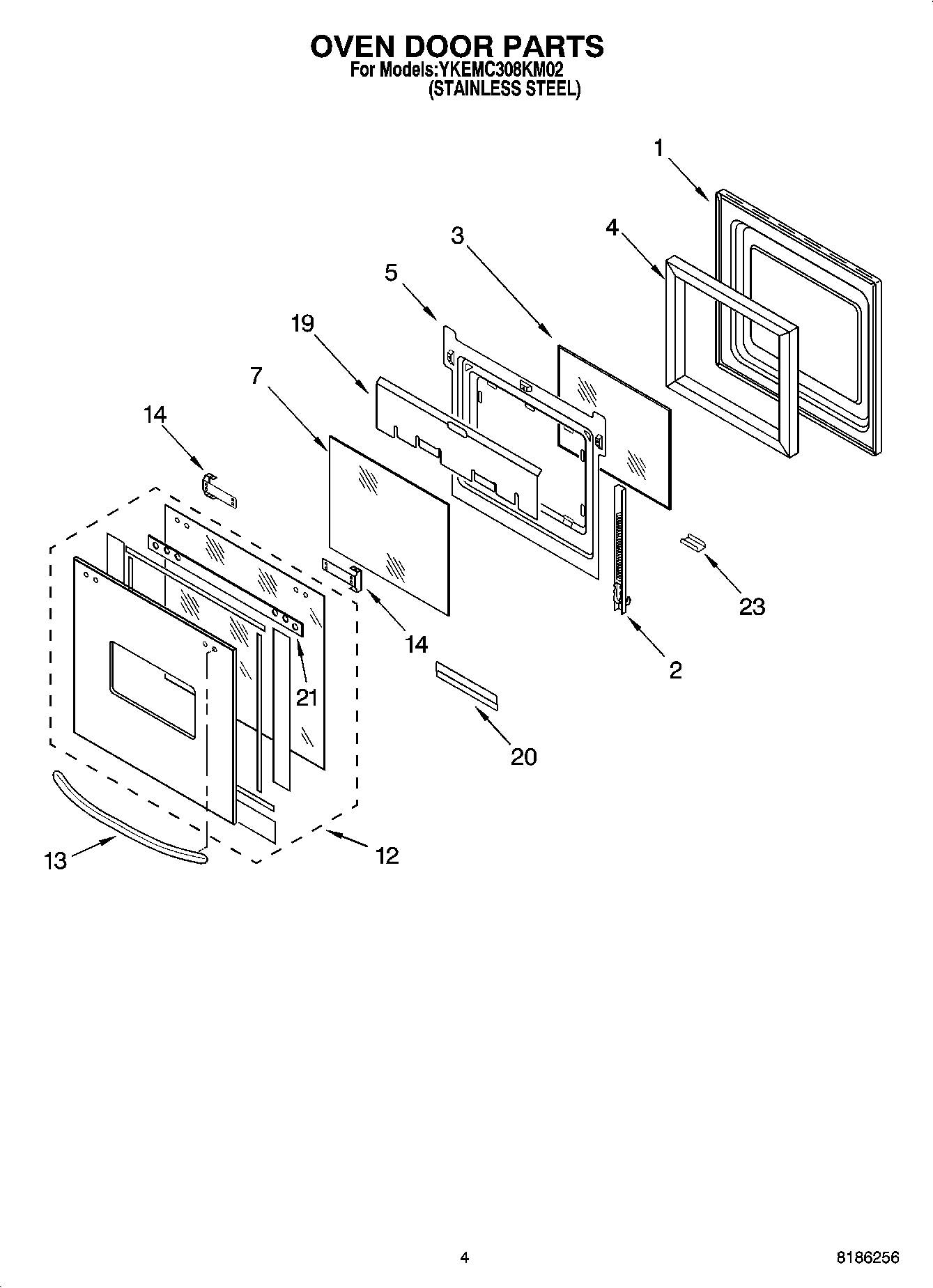

YKEMC308KM02 03 – OVEN DOOR PARTS

YKEMC308KM02 03 – OVEN DOOR PARTS

Written by

in

YKEMC308KM02 03 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760578 Whirlpool Oven Left Door Hinge
2WP9760577 Whirlpool Oven Right Door Hinge
2WP4449743 Whirlpool Screw
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
7WP4449263 Whirlpool Inner Door Glass
12W10401225 Whirlpool Oven Outer Door Glass
13Door Handle (Stainless Steel)
14Bracket, Handle (L.Hand)
144455803 Whirlpool Oven Bracket
19Shield, Heat Top
20Retainer, Glass
20WP4449809 Whirlpool Screw
21Seal, Door Top
23Retainer, Glass-Clip (Stainless Steel)
