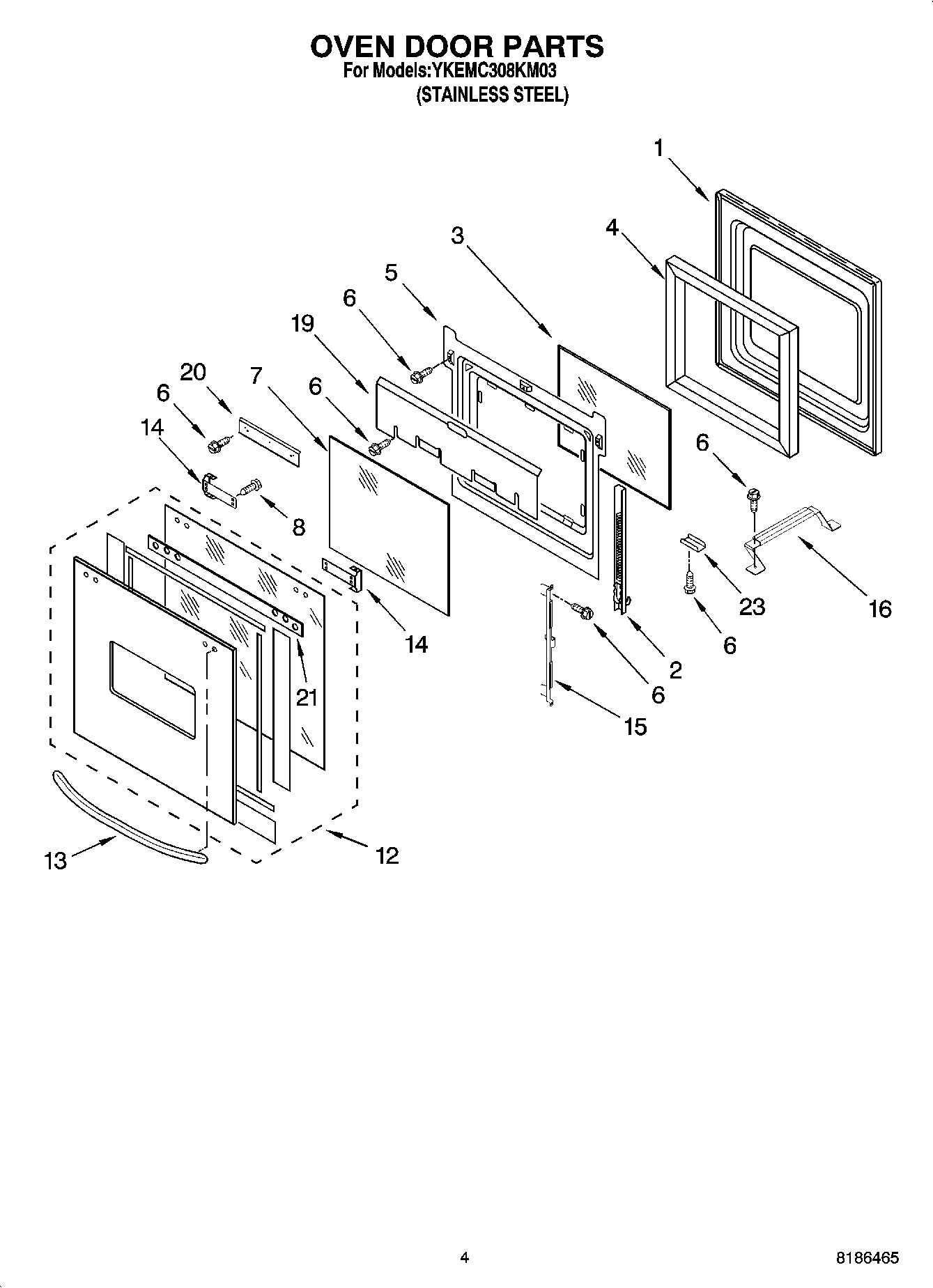

YKEMC308KM03 03 – OVEN DOOR PARTS

YKEMC308KM03 03 – OVEN DOOR PARTS

Written by

in

YKEMC308KM03 03 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760578 Whirlpool Oven Left Door Hinge
2WP9760577 Whirlpool Oven Right Door Hinge
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
6WP4449809 Whirlpool Screw
7WP9759225 Whirlpool Inner Door Glass
8WPW10132940 Whirlpool Dishwasher Screw
12W10401225 Whirlpool Oven Outer Door Glass
13Door Handle (Stainless Steel)
14Bracket, Handle (L.Hand)
144455803 Whirlpool Oven Bracket
15WP9759229 Whirlpool Mounting Bracket
16Bracket (3rd Glsss)
19Shield, Heat
204457114 Whirlpool Oven Heat Shield
21Seal, Door Top
23Retainer, Glass-Clip (Stainless Steel)
