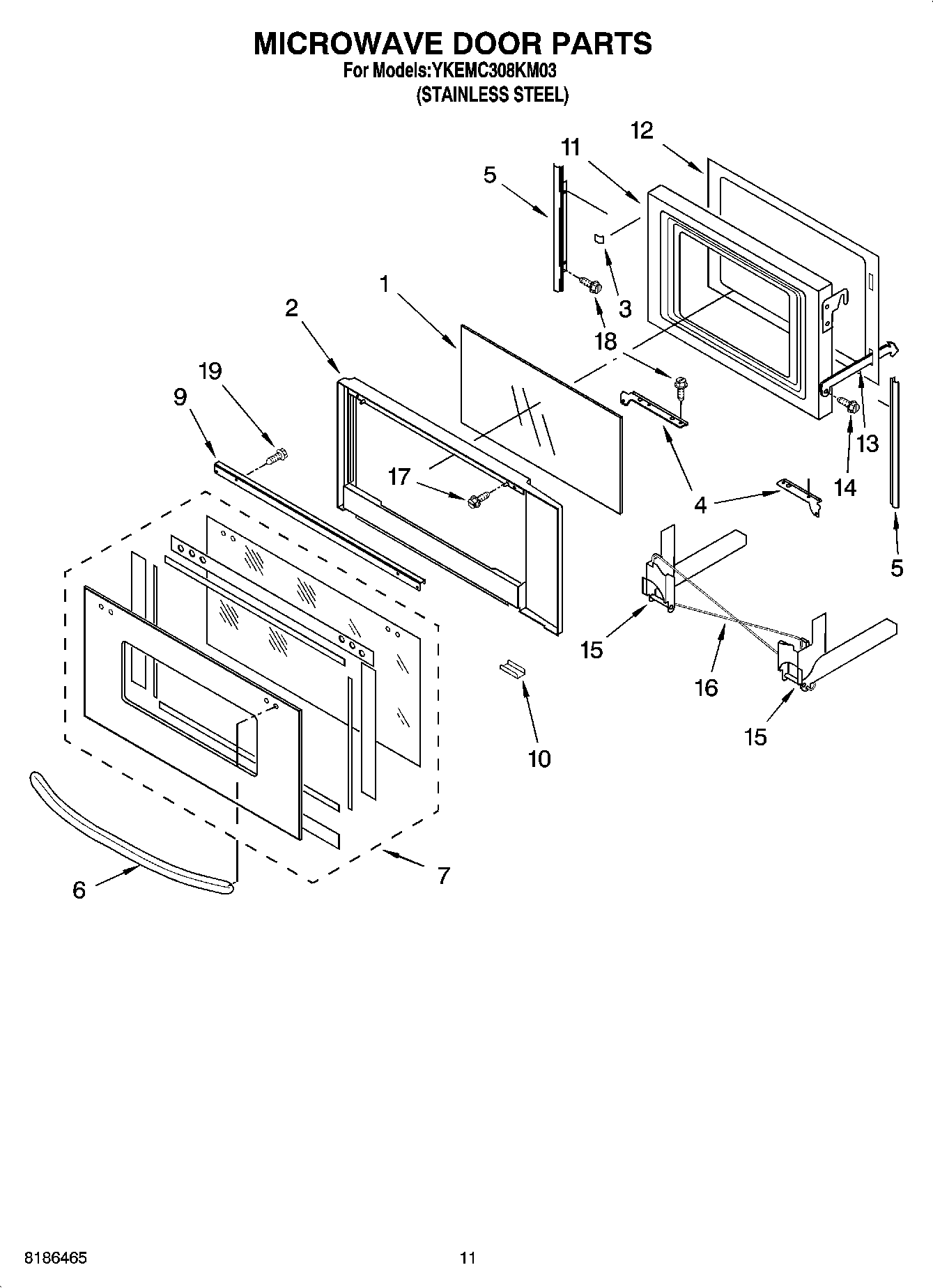

YKEMC308KM03 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

YKEMC308KM03 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Written by

in

YKEMC308KM03 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI137524A
WPL 591014
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
4450950 Whirlpool Oven Conduit
261900 Whirlpool Microwave Spray
WPL ARI137525A
WPL ARI137523A
WPL ARI137522A
WPL ARI137521A
WPL 8300490
WPL 4454845
Filler Kit (Al)
Filler Kit (Wh)
Filler Kit (Bl)
8301909 Whirlpool Oven Wire Harness
ACCESSORY PARTS, STAINLESS STEEL CLEANER & POLISH
242831 Whirlpool Oven Wire
Wire, 25“ Roll (White 14 GA.)
72017 Whirlpool Appliance Touch-Up Paint White
WP4448950 Whirlpool Screw
WP4449809 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
Wire, 25` Roll (Red 14 Ga.)
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
Ground (M/W)
Spacer, Harness
16515 Whirlpool Clip
350930 Whirlpool White Spray Paint
1
1Glass, Middle
2WP8303556 Whirlpool Microwave Door Frame
3Tape, Foam
4Bracket, Mounting (Right Side)
4Bracket, Mounting (Left Side)
5Filler, Side
5Filler, Side (Left Side)
6Door Handle (Stainless Steel)
7WP4452259 Whirlpool Door Glass
9Bracket, Handle
10Retainer, Glass-Clip (Stainless Steel)
11Plate, Door
12Frame, Inner
13Strap, Door
14Screw
15WP4375323 Whirlpool Microwave Door Hinge
15WP4375324 Whirlpool Microwave Door Hinge
16WP4452395 Whirlpool Spring Assembly
16WP4451009 Whirlpool Microwave Spring
17WP4450038 Whirlpool Screw
19WPW10132940 Whirlpool Dishwasher Screw
