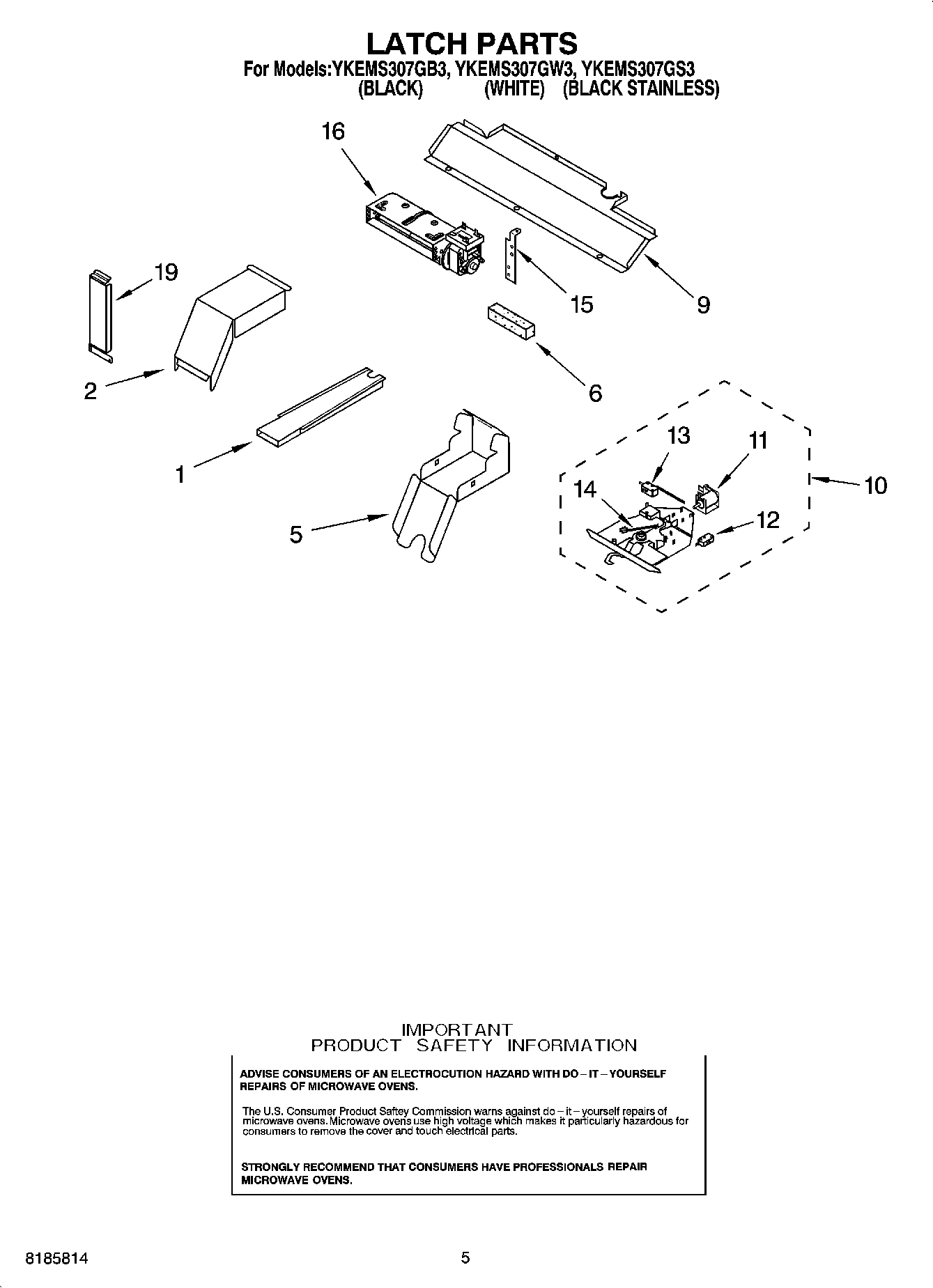

YKEMS307GS3 04 – LATCH PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	W10491987 Whirlpool Foam Seal
9	Baffle, Rear
10	Latch Assembly
11	Solenoid
12	Microswitch N.C.
13	Microswitch
14	Spring, Latch
14	WP4449154 Whirlpool Screw
15	4455191 Whirlpool Oven Mounting Plate
16	WPW10016550 Whirlpool Blower Cooling Fan
16	WP4449809 Whirlpool Screw
19	Extension Filler
