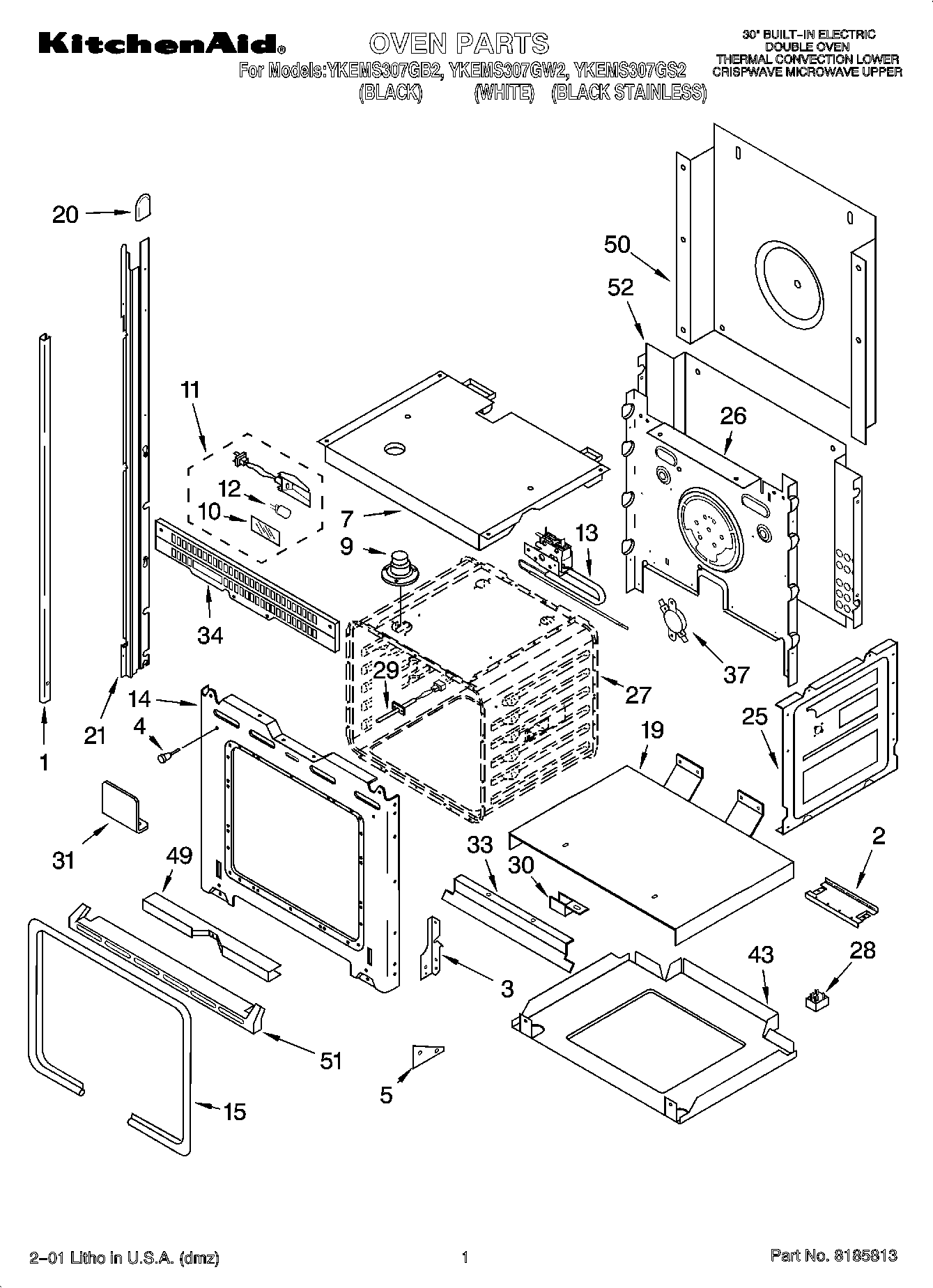

YKEMS307GW2 01 – OVEN PARTS

YKEMS307GW2 01 – OVEN PARTS

Written by

in

YKEMS307GW2 01 – OVEN PARTS

Products

PositionProduct
1Trim, Side (RH White)
1Trim, Side (RH Black)
1Trim, Side (LH Black)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (LH White)
2Bracket
2Spacer, Foam
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Safety Switch (Oven Temp)
1398005642 Whirlpool Clip
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814375 Whirlpool Oven Rail Mount
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP9752759 Whirlpool Relay
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
31Bracket, Support
33WPL 4451619
34WPL 4451667
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WP3400832 Whirlpool Screw
51WPL 4448478
51WPL 4448477
52WPL 4451756
52W11684730 Whirlpool Insulation
52FOLLOWING PARTS NOT ILLUSTRATED INSULATION
52WPL 4450365
