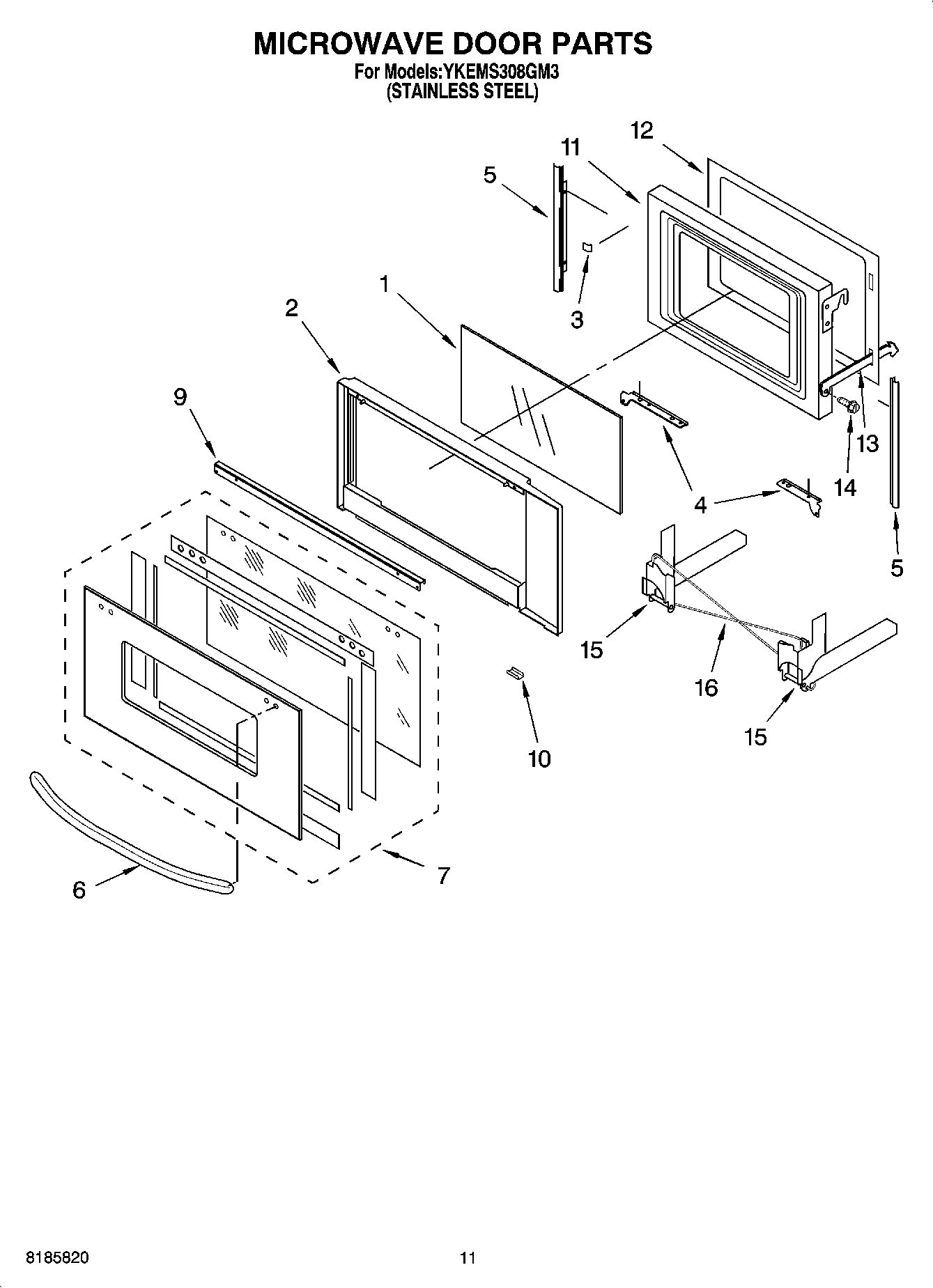

YKEMS308GM3 09 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI137587A
	1
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WPL 591014
	4450950 Whirlpool Oven Conduit
	WPL ARI137586A
	WPL ARI137585A
	WPL ARI137584A
	Harness, Main
	WPL 4454845
	Filler Kit (Al)
	Filler Kit (Wh)
	Filler Kit (Bl)
	WPL ARI137588A
	261900 Whirlpool Microwave Spray
	Wire (14 Ga. 200 c Brown)
	WP482338 Whirlpool Refrigerator Adhesive
	WPL 4452239
	Wire, 25“ Roll (White 14 GA.)
	Ground (M/W)
	WP4448950 Whirlpool Screw
	814381 Whirlpool Pin
	4450800 Whirlpool Oven Screw
	72032 Whirlpool Touch Up Paint Black
	WPW10339879 Whirlpool Wire Tie
	Wire, 25` Roll (Red 14 Ga.)
	16515 Whirlpool Clip
	285006 Whirlpool Spray
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	Spacer, Harness
	Wire, 25` Roll (Black 14 Ga.)
1	Glass, Middle
2	WP8303556 Whirlpool Microwave Door Frame
2	WP4450038 Whirlpool Screw
3	Tape, Foam
4	Bracket, Mounting (Left Side)
4	Bracket, Mounting (Right Side)
5	Filler, Side
5	Filler, Side (Left Side)
6	Handle, Door (Stainless)
7	WP4452259 Whirlpool Door Glass
9	WPW10132940 Whirlpool Dishwasher Screw
9	Bracket, Handle
10	Retainer, Glass-Clip (Stainless Steel)
11	Plate, Door
12	Frame, Inner
13	Strap, Door
14	Screw
15	WP4375324 Whirlpool Microwave Door Hinge
15	WP4375323 Whirlpool Microwave Door Hinge
16	WP4452396 Whirlpool Microwave Spring
16	WP4452395 Whirlpool Spring Assembly
