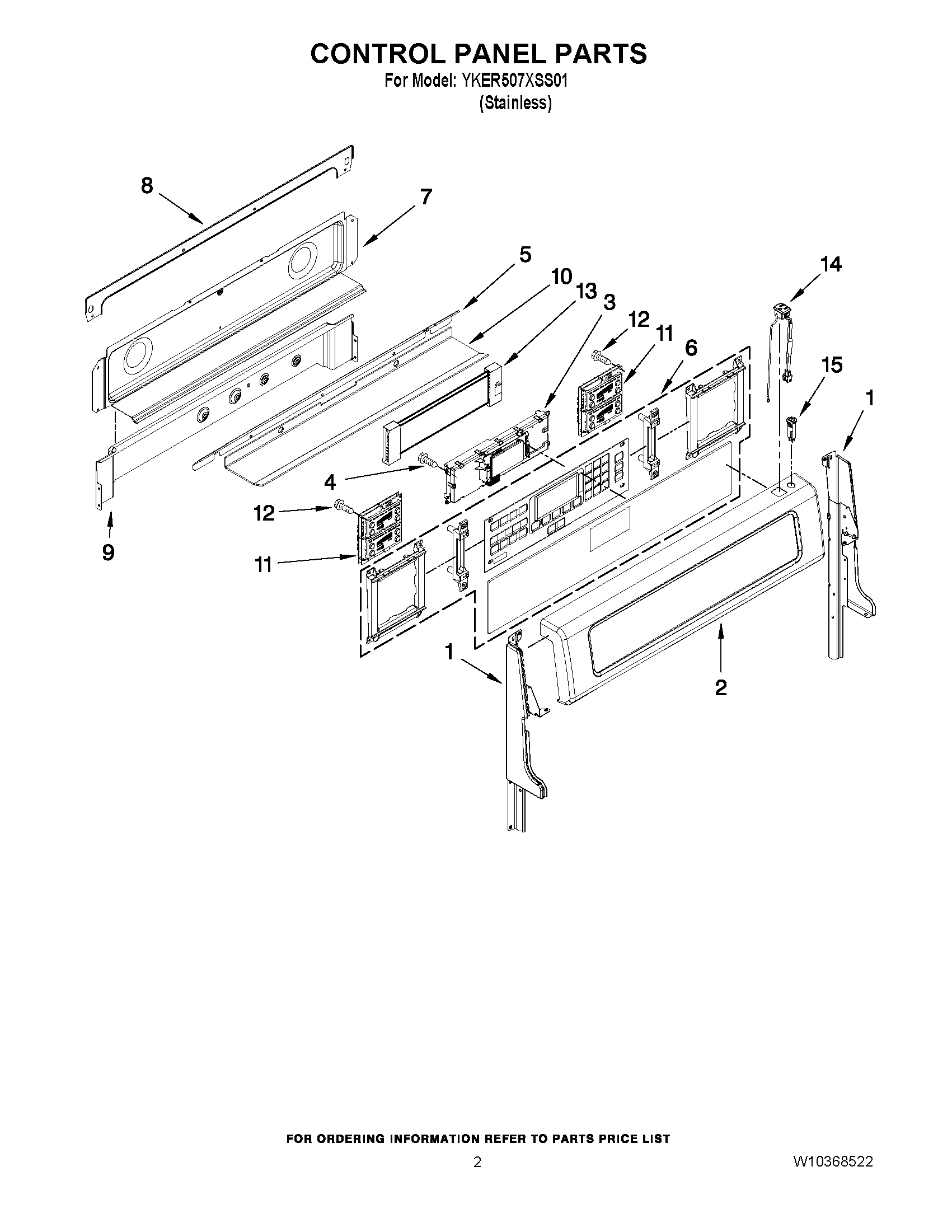

YKER507XSS01 02 – CONTROL PANEL PARTS

YKER507XSS01 02 – CONTROL PANEL PARTS

Written by

in

YKER507XSS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1SUPPORT, BACK GUARD (RIGHT HAND)
2CONSOLE
3ELECTRIC, CONTROL
4SCREW
6ASSEMBLY, USER INTERFACE (BLACK)
7W10296773 Whirlpool Rear Cover
8WPW10292689 Whirlpool Wire Cover
9W10278697 Whirlpool Vent Shield Assembly
10SHIELD, BACKGUARD
11WPW10277011 Whirlpool Electronic Control Board + Core
11INTERFACE, USER (RIGHT)
12WP3400702 Whirlpool Screw
13WPW10318787 Whirlpool Wire Harness
14WP9757602 Whirlpool Breaker
15W10861164 Whirlpool Electrical Outlet
