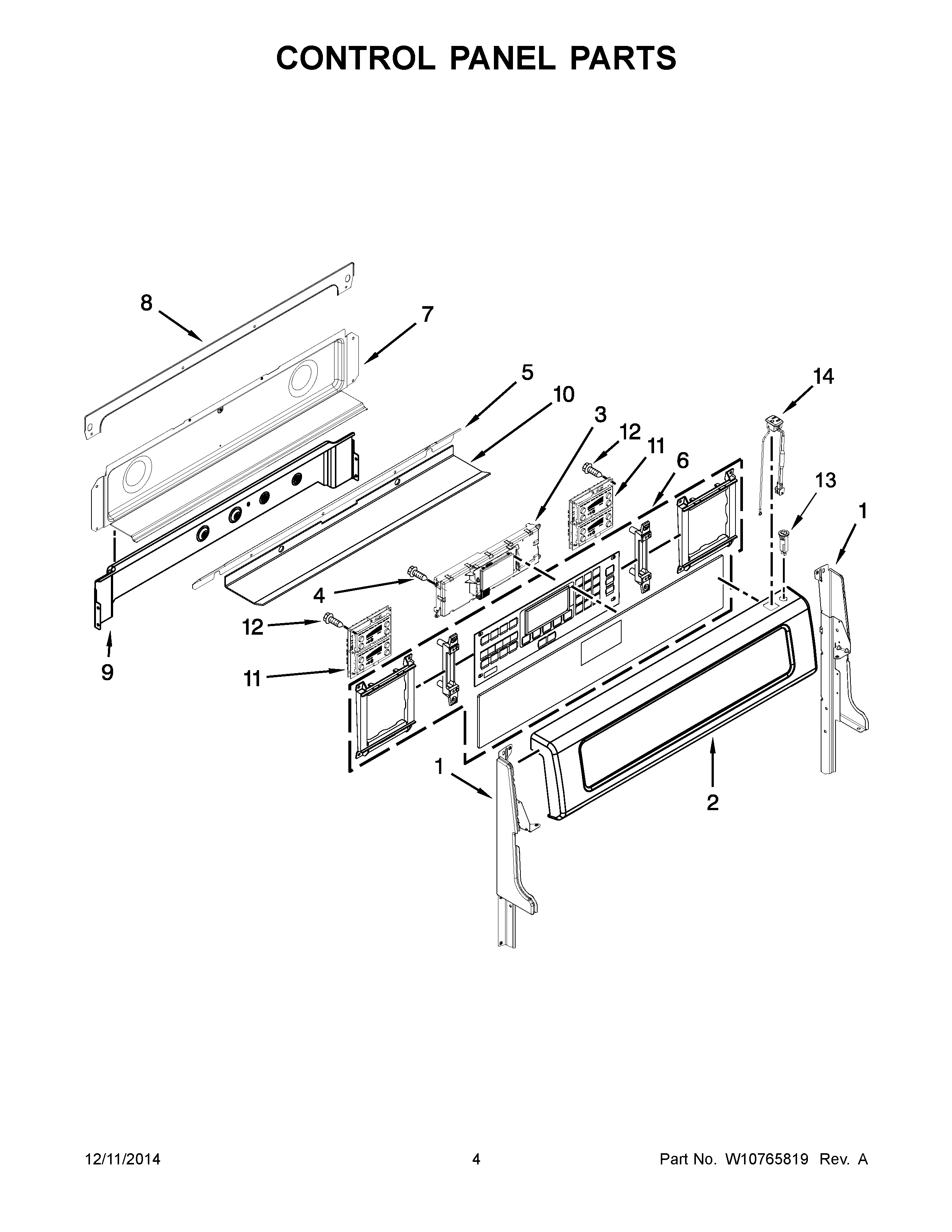

YKER507XSS04 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1A	SUPPORT, BACK GUARD (RIGHT HAND)
2	CONSOLE (STAINLESS)
3	ELECTRIC, CONTROL MRC2
4	SCREW
6	ASSEMBLY, USER INTERFACE (BLACK)
7	W10296773 Whirlpool Rear Cover
8	WPW10292689 Whirlpool Wire Cover
9	W10278697 Whirlpool Vent Shield Assembly
10	SHIELD, BACKGUARD
11	WPW10277011 Whirlpool Electronic Control Board + Core
11A	INTERFACE, USER (RIGHT)
12	WP3400702 Whirlpool Screw
13	W10861164 Whirlpool Electrical Outlet
14	WP9757602 Whirlpool Breaker
